TDK-LAMBDA I7A24045A033V0F1R High Power DC-DC Converter
The i7A series of up to 750W non-isolated DC-DC step-down converters are designed for high power density applications, supporting 33A to 45A output at 12V to 48V. These converters feature efficiencies up to 98.5%, wide input ranges of 18-60V, and adjustable output voltages from 3.3V to 24V or 18V to 32V. Suitable for various system voltages, they offer low ripple, excellent dynamic response, and multiple cooling options like conduction or forced air cooling. Compact size with various mechanical configurations makes them ideal for industrial automation, robotics, and broadcast equipment.
TDK-LAMBDA I7A24045A033V0F1R High Power DC-DC Converter Specifications:
- Input Voltage Range: 18-60V (turn on at 16.5V typical), 18-32V or 18-60V variants
- Input Transient: 65V max, 36V max during transients
- Input Current (max): 50A
- Efficiency: Up to 98.5%
- Output Voltage Tolerance: ±3%
- Output Voltage Adjustment: 3.3V to 24V or 18V to 32V
- Maximum Output Current: 33A or 45A depending on model
- Ripple & Noise: 25mV
- Switching Frequency: 660kHz
- Remote Sense: (+) Sense, compensating up to 5% of output voltage
- Overcurrent Protection: 45A or 63A (typical)
- Overtemperature Protection: Yes
- Operating Temperature: 40°C to 125°C with derating
- Cooling Methods: Convection, conduction, or forced air
- Dimensions: 34 x 36.8 x 11.5 mm (Open Frame), 34 x 36.8 x 12.7 mm (Baseplate), 34 x 36.8 x 24.9 mm (Heatsink)
- Weight: 25g (Open Frame), 50g (Baseplate), 70g (Heatsink)
- Certifications: IEC/EN/UL/CSA 62368-1, CE Mark
- MTBF: Over 5 million hours at 40°C

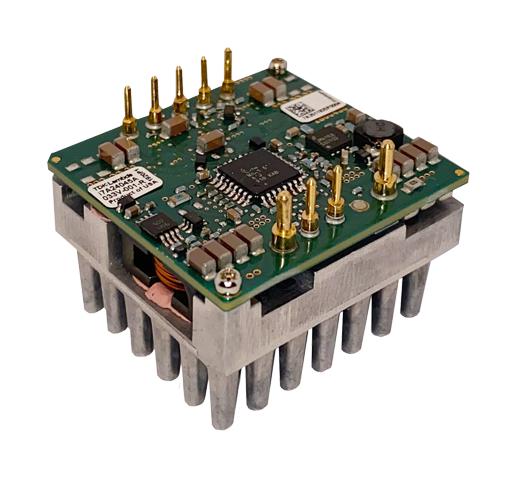

Buy the TDK Series i7A 750W High Power DC-DC Converter: I7A24045A033V-001
Purchase the TDK i7A24045A033V-001 high power DC-DC converter online today and enhance your system's efficiency with the latest technology. Designed for industrial automation, robotics, and broadcast systems, this converter offers up to 750W power output, high efficiency up to 98.5%, and wide input voltage support from 18 to 60V. Its adjustable output voltage, low ripple, and multiple cooling options ensure optimal performance. Order now to benefit from fast delivery, reliable operation, and the best in power conversion technology for demanding industrial environments.
Buy TDK i7A24045A033V-001 now and experience unmatched reliability and high efficiency for your industrial power applications.
Frequently Asked Questions
Where can I buy TDK-LAMBDA I7A24045A033V0F1R?
You can click on the BUY or RFQ button to purchase I7A24045A033V0F1R from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part I7A24045A033V0F1R?
You can download the I7A24045A033V0F1R datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of I7A24045A033V0F1R?
TDK-LAMBDA
