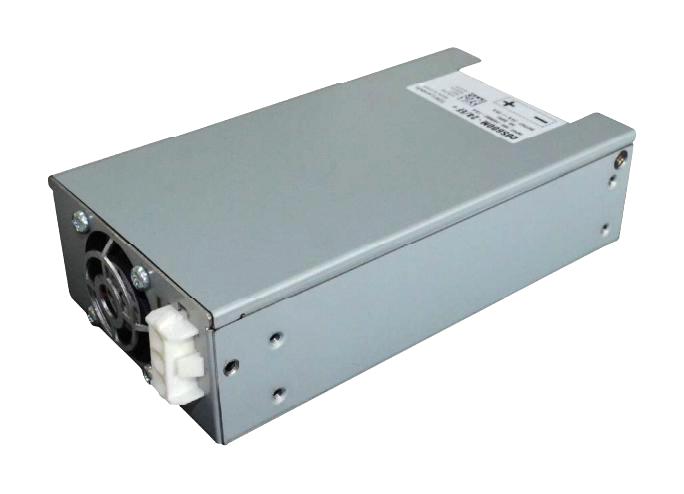

TDK-LAMBDA CUS600M36EF power supply
The CUS600M series is a compact, versatile 600W AC-DC power supply designed for medical and industrial applications. It features a standard 3x5" footprint, with options for forced air or convection cooling, suitable for Class I & II environments. Certified for medical safety, it provides a 5V 2A standby voltage, remote on/off, signal, and optional features like internal fan and output adjustment. Its high efficiency, EMI compliance, and variety of mounting options make it ideal for end equipment space-saving and reliable power delivery.
TDK-LAMBDA CUS600M36EF power supply Specifications:
- Input Voltage range: 85-265Vac, 47-63Hz
- Output Power: 600W (convection) / 400W continuous, 600W peak with forced air cooling
- Output Voltages: 12V, 19V, 24V, 28V, 32V, 36V, 48V models available
- Efficiency: Up to 96%
- Leakage Current: <200uA at 265Vac
- Hold-up Time: >22ms at 115Vac, >14ms at 230Vac
- Line Regulation: 0.5%, Load Regulation: 1%
- Ripple & Noise: 12V: 240mV, 19V-28V: 360mV, 32V-48V: 480mV
- Operating Temperature: -20°C to +70°C (derating below 115Vac)
- Overcurrent Protection: >105% with hiccup mode
- Safety Certifications: IEC/EN/UL62368-1, 60601-1, CE, RoHS
- Dimensions: 127 x 76.2 x 37 mm for open frame, 157 x 85 x 42.5 mm for enclosed version
- Mounting Options: Standard, with options for enclosure, fan, or no fan
- Isolation Resistance: >100MO at 25°C, 70%RH
- Weight: 470g (open frame), 790g (/EF version)
Buy the Lambda Series Medical Power Supply: CUS600M36EF
Enhance your medical and industrial equipment with the Lambda CUS600M power supply. Its compact design, high efficiency, and optional features like internal fan and output adjustment ensure reliable performance and space-saving installation. Certified for medical use, it provides stable output voltages and excellent EMI compliance. Perfect for Class I & II applications, this power supply is your dependable choice for demanding environments. Order online today to benefit from fast delivery and dedicated support.
Buy Lambda CUS600M36EF now and experience unmatched reliability and performance for medical-grade power applications.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CUS600M36EF?
You can click on the BUY or RFQ button to purchase CUS600M36EF from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CUS600M36EF?
You can download the CUS600M36EF datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CUS600M36EF?
TDK-LAMBDA
