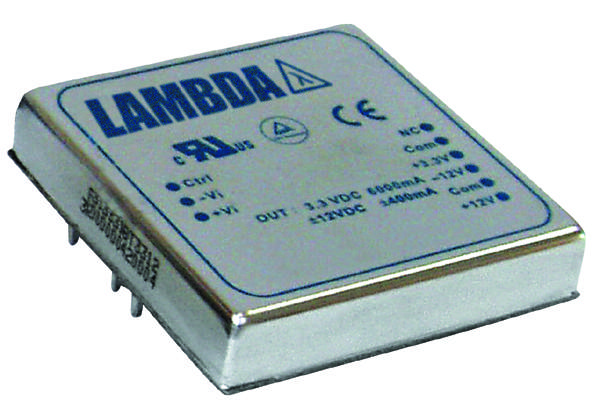

TDK-LAMBDA PXF4048WS12 DC-DC Converter Module
The PXF Series consists of high-efficiency DC-DC converters designed for industrial, telecom, and datacom applications. These modules support single, dual, and triple output configurations with power ratings of 40W and 60W. They feature wide input voltage ranges of 9-36V, 18-75V, and 36-75V, ensuring compatibility with various system voltages. The converters are UL, CSA, EN, and CE approved, include remote on/off, overvoltage and overcurrent protections, and operate across temperatures of -55°C to +125°C. They are compact, measuring 50.8 x 50.8 x 10.1 mm, with high MTBF and low noise, making them reliable for demanding environments.
TDK-LAMBDA PXF4048WS12 DC-DC Converter Module Specifications:
- Maximum Output Power: 40W or 60W
- Input Voltage Range: 9-36V, 18-75V, 36-75V wide range models
- Output Voltage: 3.3V, 5V, 12V, 15V, 9-36V, 18-75V options
- Ripple/Noise: 50mV for single, 75mV for dual/triple configurations
- Efficiency: Up to 89%
- Operating Temperature: -55°C to +125°C
- Maximum Case Temperature: 110°C
- Isolation Voltage: 1600VDC minimum
- Dimensions: 50.8 x 50.8 x 10.1 mm
- Switching Frequency: 300 kHz
- MTBF: Over 1,000,000 hours
- Certifications: UL, CSA, EN, CE approved
- Features: Remote on/off, overvoltage and overcurrent protections, six-sided shielding
Buy the TDK-Lambda Series PXF DC-DC Converter: PXF4048WS12
Purchase the TDK-Lambda PXF4048WS12 DC-DC converter online today for your industrial, telecom, or datacom projects. This high-efficiency module offers a wide input voltage range of 9-36V, 18-75V, or 36-75V, depending on the model, and supports single, dual, and triple output configurations. Certified to UL, CSA, EN, and CE standards, it includes remote on/off, overvoltage, and overcurrent protections. Its compact size, operating temperature from -55°C to +125°C, and high MTBF of over 1 million hours make it ideal for demanding environments. Ensure reliable, quiet, and efficient power delivery with ease.
Buy TDK-Lambda PXF4048WS12 high-power, reliable DC-DC converter online now and ensure stable power for your industrial and telecom systems.
Frequently Asked Questions
Where can I buy TDK-LAMBDA PXF4048WS12?
You can click on the BUY or RFQ button to purchase PXF4048WS12 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part PXF4048WS12?
You can download the PXF4048WS12 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of PXF4048WS12?
TDK-LAMBDA
