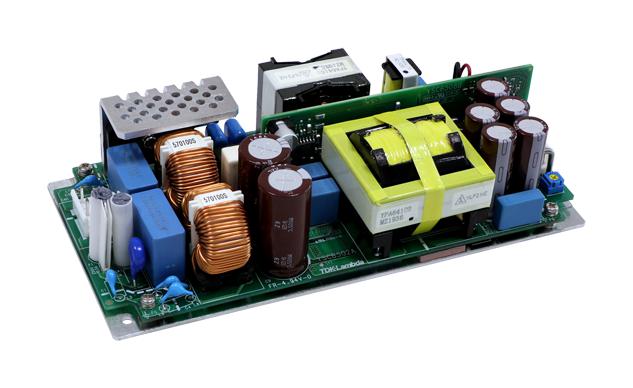

TDK-LAMBDA CUS350MP100024 Medical Power Supply
CUS350MP AC-DC power supplies provide a rated output of 350W with a peak of 1,000W, featuring convection cooling for low noise applications or forced air cooling for continuous 500W and peak 1,000W loads. Certified for medical standards including IEC60601-1 3rd edition, IEC62368-1, and IEC62477-1, these supplies also meet immunity requirements. With up to 94% efficiency, they reduce waste heat, ensuring reliable operation in a compact 88 x 183 x 44 mm size. They include a 5V 0.3A standby, remote on/off, and are ideal for printers and DC motor equipment.
TDK-LAMBDA CUS350MP100024 Medical Power Supply Specifications:
- Input Voltage range: 85 - 265Vac / 120 - 370Vdc
- Input Frequency: 47-63Hz
- Efficiency: Up to 94%
- Output Power: 350W continuous / 1,000W peak
- Output Voltage Range: 24V, 30V, 36V, 48V options
- Output Voltage Tolerance: ±1%
- Hold Up Time: 20ms convection cooled / 15ms forced air
- Leakage Current: <300uA
- EMI Compliance: EN55011, EN55032-B, FCC Class B
- Safety Certification: IEC60601-1 3rd edition, IEC62368-1, IEC62477-1
- Operating Temperature: -30°C to +75°C
- Cooling: Convection or forced air
- Dimensions: 88 x 183 x 44 mm
- Weight: 770g
- Standby Voltage: 5V 0.3A
- Remote On/Off: Yes
- Certifications: UL, IEC/EN, CE Mark
Buy the Buy TDK Lambda Power Supply Part Number CUS350MP100024 Online
Secure your TDK Lambda power supply CUS350MP 100024 online today and enjoy quick delivery, reliable operation, and high efficiency. Ideal for medical devices, printers, and equipment utilizing DC motors, this power supply offers 350W continuous and 1,000W peak power with convection cooling for silent operation or forced air for demanding applications. Certified according to IEC60601-1, IEC62368-1, and IEC62477-1 standards, it ensures safety, EMI compliance, and low heat dissipation. Purchase now to streamline your system integration and benefit from a five-year warranty.
Buy TDK Lambda CUS350MP 100024 power supply now and experience unmatched reliability, efficient performance, and compact design for medical and industrial applications.
Frequently Asked Questions
Where can I buy TDK-LAMBDA CUS350MP100024?
You can click on the BUY or RFQ button to purchase CUS350MP100024 from an authorized TDK-LAMBDA distributor.
How do I troubleshoot issues or seek technical support for part CUS350MP100024?
You can download the CUS350MP100024 datasheet or visit the TDK-LAMBDA website for support.
Who is the manufacturer of CUS350MP100024?
TDK-LAMBDA
