TE CONNECTIVITY 02560394000 high-temp LVDT
The HR Series is a versatile, high-reliability LVDT designed for precise linear position measurement in industrial applications. Featuring a large 1/16-inch bore-to-core clearance, it accommodates significant misalignments, reducing installation costs. Operating over a broad frequency range from 400Hz to 5kHz and temperature up to 220°C, it withstands harsh environments with stainless steel housing and high-temperature coil impregnation. Available in multiple stroke ranges from +0.05 to +10 inches, with options like guided core and low-mass core, making it ideal for process control, automation, and materials testing.
TE CONNECTIVITY 02560394000 high-temp LVDT Specifications:
- Stroke ranges from +0.05 to +10 inches
- Sensitivity: 5.8 to 42 mV/inch depending on model
- Output at stroke ends: 290 to 975 mv/V
- Phase shift: 1° to 5°
- Input impedance: 4300 to 11500 ohms
- Operating temperature: -55°C to +150°C
- Shock survival: 1000 g (11ms half-sine)
- Vibration tolerance: 20g up to 2KHz
- Housing material: AISI 400 Series stainless steel
- Electrical connection: Six lead-wires, 28 AWG, PTFE insulated, 1 ft long
- IEC 60529 rating: IP61
- Dimensions vary by model, body length up to 30.85 inches
- Core length varies from 0.80 to 8.50 inches
- Optional features: guided core, metric threads, low-mass core

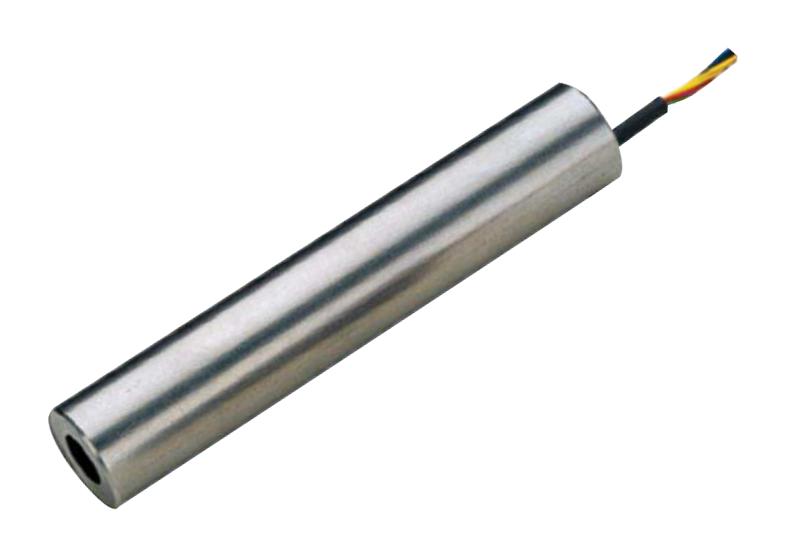

Buy the Buy TE Connectivity HR Series LVDT Part Number 02560394-000 Online
Purchase the TE Connectivity HR Series high-temperature LVDT online for precise linear displacement measurement. This versatile sensor features large bore clearance, broad frequency operation from 400Hz to 5kHz, and operates reliably at temperatures up to 220°C. Its stainless steel housing provides durability in harsh industrial conditions while options like guided core and low-mass cores enhance flexibility. Suitable for process control, factory automation, materials testing, and applications with misalignments, this high-reliability LVDT ensures consistent, worry-free performance for critical measurement tasks.
Order your TE Connectivity HR Series 0.5 inch high-temperature LVDT today and ensure accurate linear measurement in demanding industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 02560394000?
You can click on the BUY or RFQ button to purchase 02560394000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 02560394000?
You can download the 02560394000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 02560394000?
TE CONNECTIVITY
