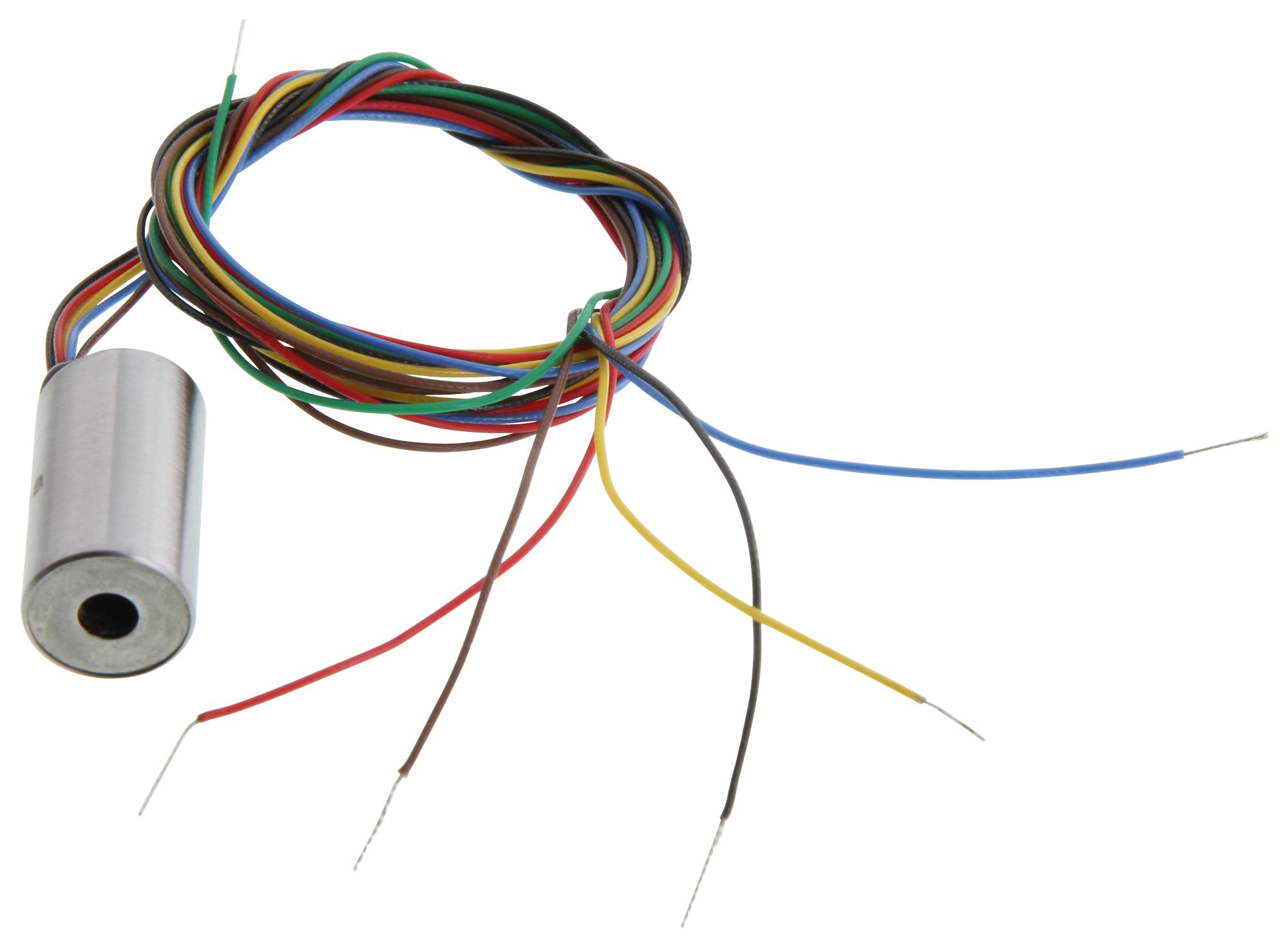

TE CONNECTIVITY 02560407000 Miniature Displacement Sensor
The MHR Series is a miniature, high-precision AC LVDT designed for space-restricted applications requiring accurate displacement measurements. Featuring a compact 3/8 inch diameter stainless steel housing and lightweight core, it offers excellent electromagnetic shielding and high output sensitivity. Suitable for various industrial uses, it operates reliably up to 200°C and withstands shocks of 1000 g. The sensor provides multiple stroke options from +0.005 to +2 inches, with vacuum-impregnated windings for environmental resistance, making it ideal for position feedback, materials testing, and space-constrained installations.
TE CONNECTIVITY 02560407000 Miniature Displacement Sensor Specifications:
- Stroke ranges from +0.005 to +2 inches
- Diameter: 3/8 inch (9.5 mm)
- Housing material: Stainless steel
- Operating temperature: -55°C to +150°C
- Shock survival: 1000 g (11 ms half-sine)
- Vibration tolerance: 20 g up to 2KHz
- Power supply: 3 VRMS sine wave
- Input frequency: 2kHz to 20kHz
- Output sensitivity: 8.70 V/V/inch to 0.49 V/V/inch depending on model
- Mechanical length varies with model, approx. 0.535 to 8.0 inches
- Customizable options including calibration frequency and threaded core
- Includes calibration certificate and compatible with TE measurement conditioners
Buy the TE Connectivity MHR005 – Reliable Displacement Sensor for Industrial Applications
Enhance your measurement accuracy with the TE Connectivity MHR Series miniature AC LVDT. Designed for space-critical applications, it features a stainless steel housing, lightweight core, and high sensitivity for precise displacement feedback. With optional calibration frequencies and threaded cores, this sensor integrates easily into industrial systems requiring reliable, high-temperature performance up to 200°C, shock resistance, and environmental protection. Order now online to ensure accurate, durable, and compact measurement solutions for your industrial or research needs.
Buy TE Connectivity MHR005 now and experience unmatched reliability and performance with precision measurement in space-constrained environments.
