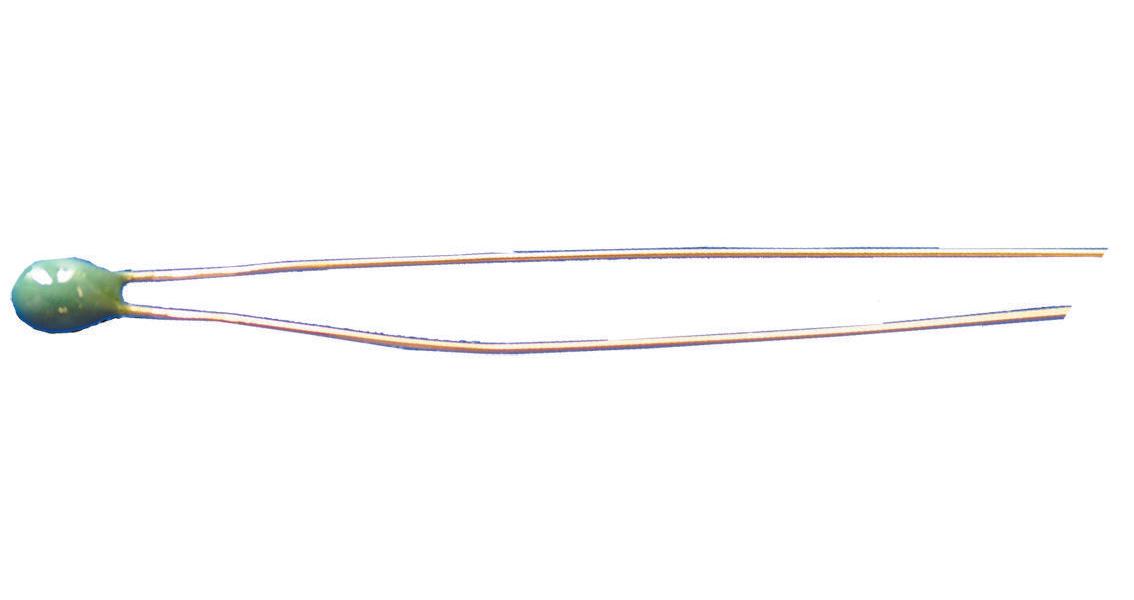

TE CONNECTIVITY 1103256300 Precision Epoxy NTC Thermistor
The TE Connectivity 44006RC Precision Epoxy NTC Thermistor is designed for general applications requiring stable and accurate temperature sensing. It utilizes a pressed-disk ceramic sensor encapsulated in a thermally conductive epoxy coating, providing high sensitivity and long-term stability. This thermistor is RoHS compliant and suitable for mid-range temperature applications, tight tolerance instrumentation, and environments requiring sensing of small temperature changes.
TE CONNECTIVITY 1103256300 Precision Epoxy NTC Thermistor Specifications:
- Resistance @ 25°C: 10,000 ohms
- Tolerance 0°C to 70°C: ±0.2°C
- Beta Value 25/85: 3694 K
- Tolerance on Beta Value: 0.8%
- Time response in air: < 10 seconds
- Dissipation Constant in air: 1 mW/°C
- Insulation Resistance: >100 Mohms
- Maximum Diameter: 0.095" (2.4 mm)
- Lead Material: Silver plated copper
- Lead Length: 3" (7.6 cm)
