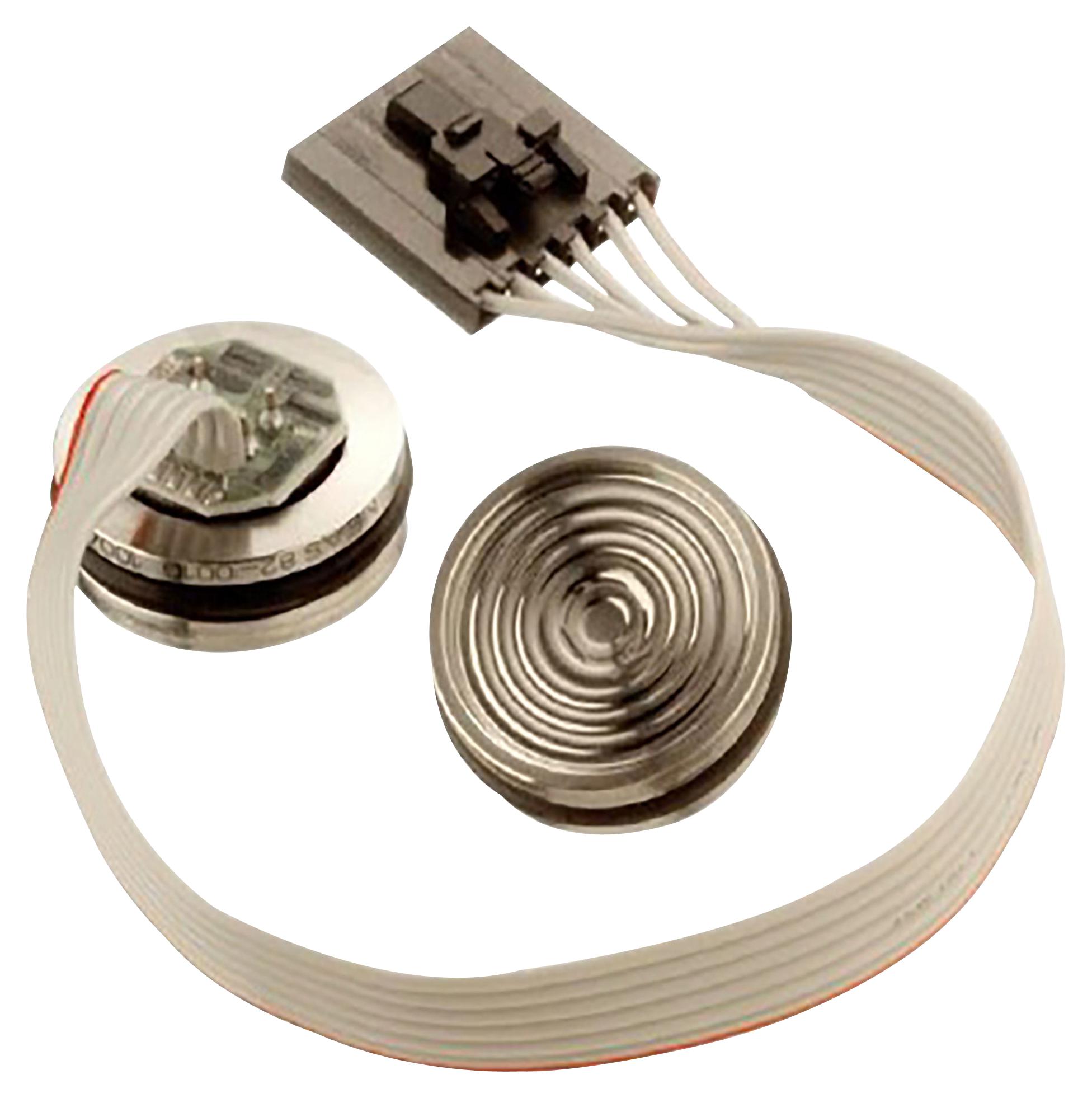

TE CONNECTIVITY 82015GC Compensated Pressure Sensor
The TE Connectivity 82-015G-C compensated pressure sensor is a compact, media-compatible device designed for OEM applications. Its 19mm diameter and 316L stainless steel housing provide durability and compatibility with corrosive environments. The sensor utilizes silicone oil to transfer pressure to the sensing element, and a ceramic substrate contains laser-trimmed resistors for temperature compensation and offset correction. It's commonly used in medical instruments, process control systems, and tank level monitoring.
TE CONNECTIVITY 82015GC Compensated Pressure Sensor Specifications:
- 316L SS Pressure Sensor: Yes
- Package Diameter: 19mm
- Output Voltage: 0 - 100mV
- Pressure Type: Absolute and Gage
- Temperature Compensation: Yes
- Operating Temperature Range: -40°C to +125°C
- Pressure Non Linearity: ±0.2%
- Interchangeable Span: ±1.0%
- Supply Current: 1.5mA
- Insulation Resistance: 50MΩ
- Response Time: 0.1ms
- Pressure Overload: 10x Rated
- Pressure Burst: 12x Rated
- Media Compatibility: Liquids and Gases compatible with 316L Stainless Steel and Buna-N
- Standard Ranges: 0 to 1, 0 to 5, 0 to 15, 0 to 30, 0 to 50, 0 to 100, 0 to 300, 0 to 500 psia/psig
