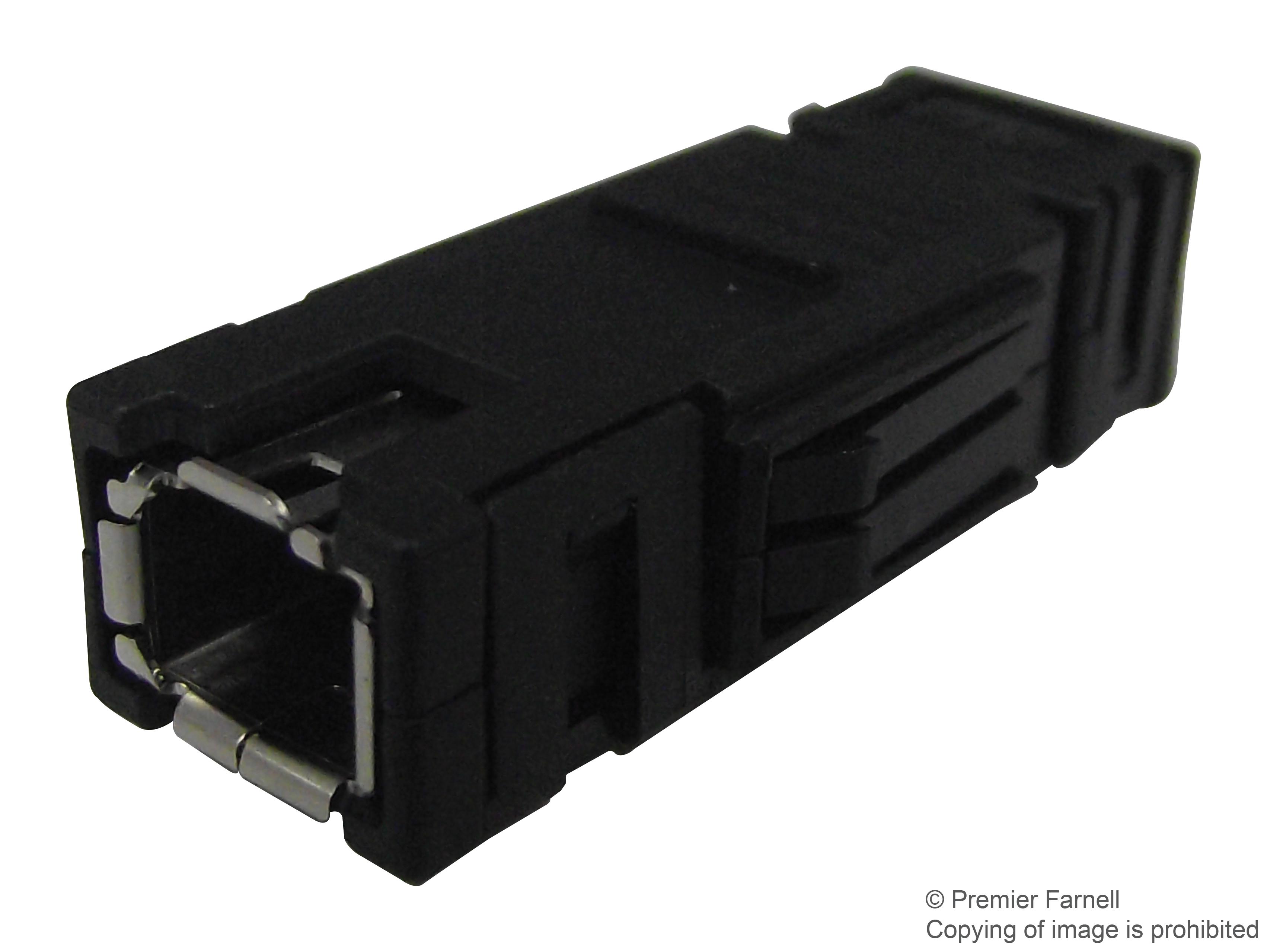

TE CONNECTIVITY 122018641 Mini I/O Receptacle
The 1-2201864-1 is an 8-position, 8-conductor shielded mini industrial I/O receptacle kit designed for wire-to-wire connections. This field-installable connector features an innovative piercing termination for quick, solderless wiring, making installation fast and reliable. Its compact size, only a quarter of traditional RJ45 connectors, ensures space-saving in industrial environments. Built with dual contact points and robust materials, it provides exceptional durability in high-vibration settings. Suitable for automation, communication, robotics, and industrial applications, it meets UL94V-0 flammability standards for safety and dependability.
TE CONNECTIVITY 122018641 Mini I/O Receptacle Specifications:
- Number of positions: 8
- Number of conductors: 8
- Connection type: Wire-to-wire, piercing termination
- Dimensions (Plug Kit): 11.62 x 34 x 8.7 mm
- Dimensions (Receptacle Kit): 17 x 35 x 13.5 mm
- Operating temperature: -40 °C to 85 °C
- Cable diameter: Max 7 mm
- Wire size: Max 24 AWG
- Flammability Rating: UL94V-0
- Contacts: Copper alloy
- Housing: Thermoplastic
- Shell: Copper alloy
- Contact Material: Copper alloy
- Latch retention force: 98N (10 kg)
Buy the TE Series Mini I/O Shielded Receptacle: 122018641
Purchase the TE Mini I/O Receptacle 122018641 online today to benefit from quick, solderless wire connections in space-constrained industrial environments. This innovative, field-installable connector features piercing termination technology for fast wiring, making installation simple even in high-vibration and demanding settings. Its compact design ensures space efficiency on the PCB, while robust materials and dual contact points guarantee reliable, durable connections in automation, robotics, and communication systems. Trust TE’s quality to improve your industrial project’s efficiency and safety.
Order your TE Series Mini I/O shielded receptacle 122018641 today and enhance your industrial connection reliability with space-saving, quick-install solution.
