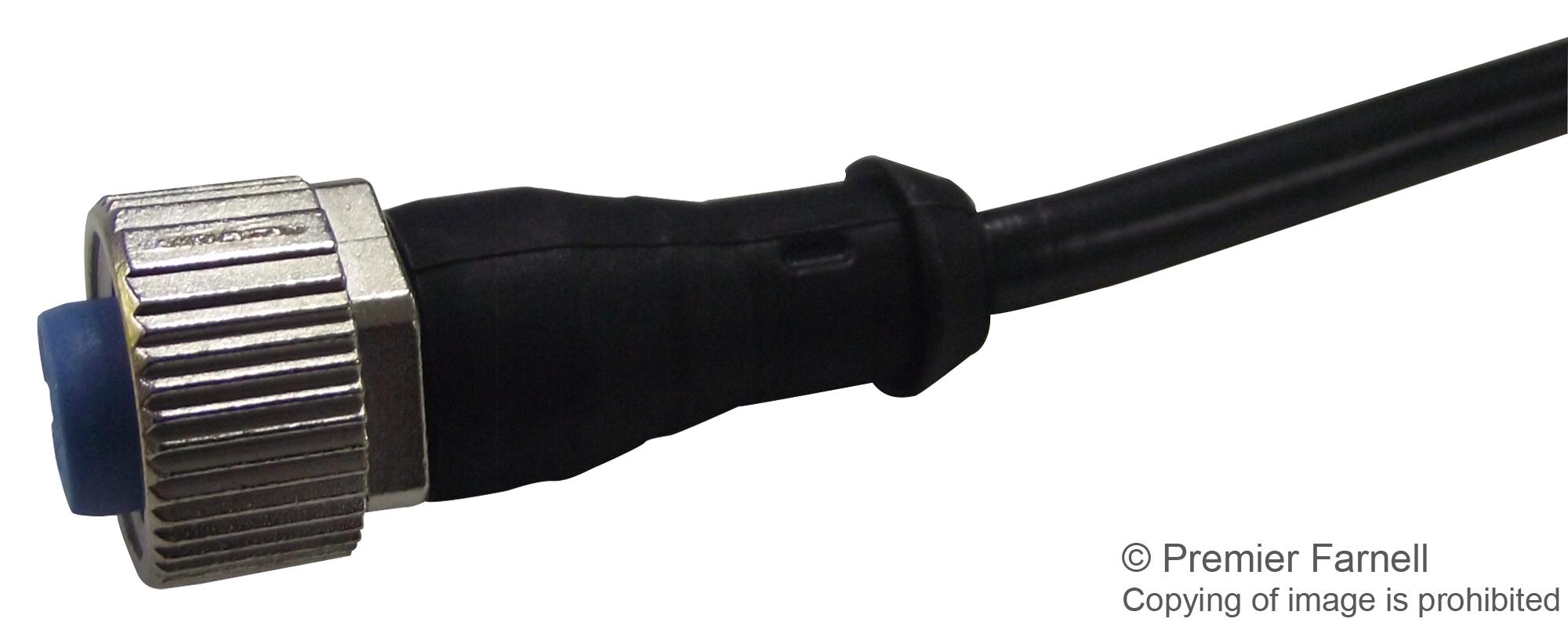

TE CONNECTIVITY 122730291 industrial connector
This is a M12 x 1.0 straight socket plug designed for industrial automation and control systems. It features IP65 and IP67 protection ratings when connected, providing reliable sealing against dust and water. The cable has four 22 AWG PVC or PUR wires with a maximum voltage of 250 V AC/DC and a maximum current per contact of 4A. The connector's locking screw thread ensures secure connections, making it ideal for rugged industrial environments. Suitable for various wiring configurations, it supports operating temperatures from -30°C to +80°C and offers durable, flexible wiring options.
TE CONNECTIVITY 122730291 industrial connector Specifications:
- Operating voltage max. 250 V AC/DC
- Operating current per contact max. 4A
- Connecting screw thread M12 x 1 mm, recommended torque 0.6 Nm
- Protection IP65 and IP67 when connected and screwed down (EN 60529)
- Cable: 4x22 AWG PVC or PUR insulation, outer diameter approximately 5.0 mm
- Wires lengths: 1.5m, 3.0m, 5.0m, 10m, with various part numbers assigned
- Temperature range (fixed): -30°C to +80°C
- Temperature range (mobile): -5°C to +80°C
- Jacket material: PVC or PUR, UL/CSA listed
- Bend radius (moving): outer diameter x 3 times
- Locking feature: screw thread with recommended torque for secure connection
Buy the TE Connectivity 122730291 – Reliable Industrial Communication Connector for Automation Applications
Purchase the TE Connectivity 122730291 industrial connector online today and ensure your automation or control system benefits from durable, secure, and waterproof connections. Designed for industrial environments, this connector provides reliable IP65/IP67 protection, easy installation, and flexible wiring options. Its robust construction supports operational temperatures from -30°C to +80°C and maximum 4A current per contact, making it perfect for demanding applications. Order now to enhance your industrial device reliability and streamline your wiring needs efficiently.
Get TE Connectivity 122730291 today—built for secure connections and rugged industrial environments, ensuring reliable performance in automation systems.
