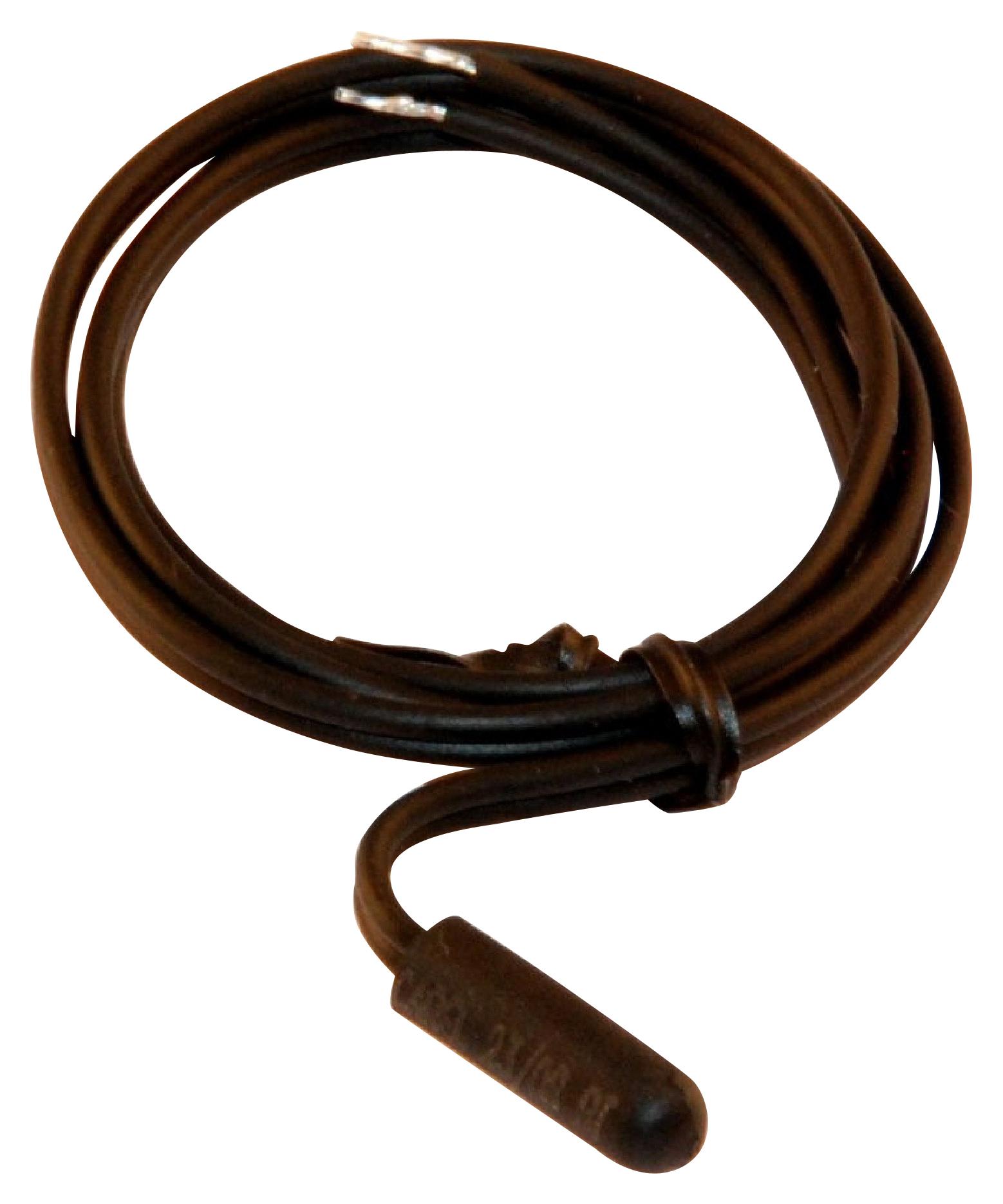

TE CONNECTIVITY GA10K3435STM010 HVAC Temperature Sensor
This TPE overmolded thermistor probe is designed for HVAC applications, including building management, heater control, and air conditioning. It features a chemical-resistant black TPE over-molded encapsulation that provides IP-67 water and moisture ingress protection. The probe head measures 5 x 20mm, with a 24 AWG zipcord cable for flexible installation. Operating within a temperature range of -35°C to +105°C, it offers a resistance of 10kΩ at +25°C, a beta value of 3435K, and an insulation resistance of 100MQ at 500VDC. Suitable for accurate temperature sensing in harsh environments, its durable construction ensures reliable performance in various HVAC systems.
TE CONNECTIVITY GA10K3435STM010 HVAC Temperature Sensor Specifications:
- Probe head dimensions: 5 x 20mm
- Cable: 24 AWG Zipcord, black TPE jacket
- Temperature range: -35°C to +105°C
- Resistance at 25°C: 10,000 Ohms
- Beta value: 3435K
- Insulation Resistance: 100MQ @ 500VDC
- Max Power: 400 mW
- Time Constant: approximately 15 seconds
- Material: Black TPE over-molded encapsulation
- Waterproof rating: IP-67
- Connector options: variety available
- Temperature tolerance: +1%, Beta tolerance: +1%
- Overmolding: Hot vulcanized TPE for durability
Buy the TE Connectivity Series HVAC Temperature Sensor: GA10K3435STM010
Purchase the TE Connectivity Series HVAC Temperature Sensor GA10K3435STM010 online today for dependable temperature sensing in HVAC and building management. With a rugged IP-67 rated TPE overmolded design, it ensures water and moisture resistance, suitable for ambient air sensing, heater controls, and air conditioning systems. The compact 5 x 20mm probe head and 24 AWG zipcord cable provide flexible installation options. Operating from -35°C to +105°C, it offers precise resistance at 25°C, high insulation resistance, and durable construction for long-term reliable performance in challenging environments.
Order your TE Connectivity Series HVAC Temperature Sensor GA10K3435STM010 today and ensure reliable temperature monitoring in demanding HVAC systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY GA10K3435STM010?
You can click on the BUY or RFQ button to purchase GA10K3435STM010 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part GA10K3435STM010?
You can download the GA10K3435STM010 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of GA10K3435STM010?
TE CONNECTIVITY
