TE CONNECTIVITY 123148200 Board-to-Board Receptacle
TE Connectivity's AMPMODU 2mm Board-to-Board Receptacles are designed for reliable PCB connections with dual beam contacts, compact size, and versatile mounting options. Made from high-temperature LCP plastic, these receptacles support surface-mount and through-hole assembly processes. They are available in various configurations, including vertical and dual-entry types, with multiple gold plating options for enhanced signal integrity. Suitable for industrial applications such as PLCs, servo drives, control systems, and automation, these receptacles ensure stable and efficient electrical connections in a space-saving design.
TE CONNECTIVITY 123148200 Board-to-Board Receptacle Specifications:
- Centerline: 2mm [0.079"]
- Contact Material: Phosphor Bronze
- Gold Plating Options: 4u" [0.1um], 15y" [0.38um], 30p" [0.76um]
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Operating Temperature: -40°C to 125°C
- Reflow Solder Temperature: Capable to 260°C
- Housing Material: High-temperature LCP, UL 94V0, Black
- Vibration Resistance: No electrical discontinuity >1 microsecond
- Certifications: UL Certified, RoHS & REACH Compliant, VDE Pending

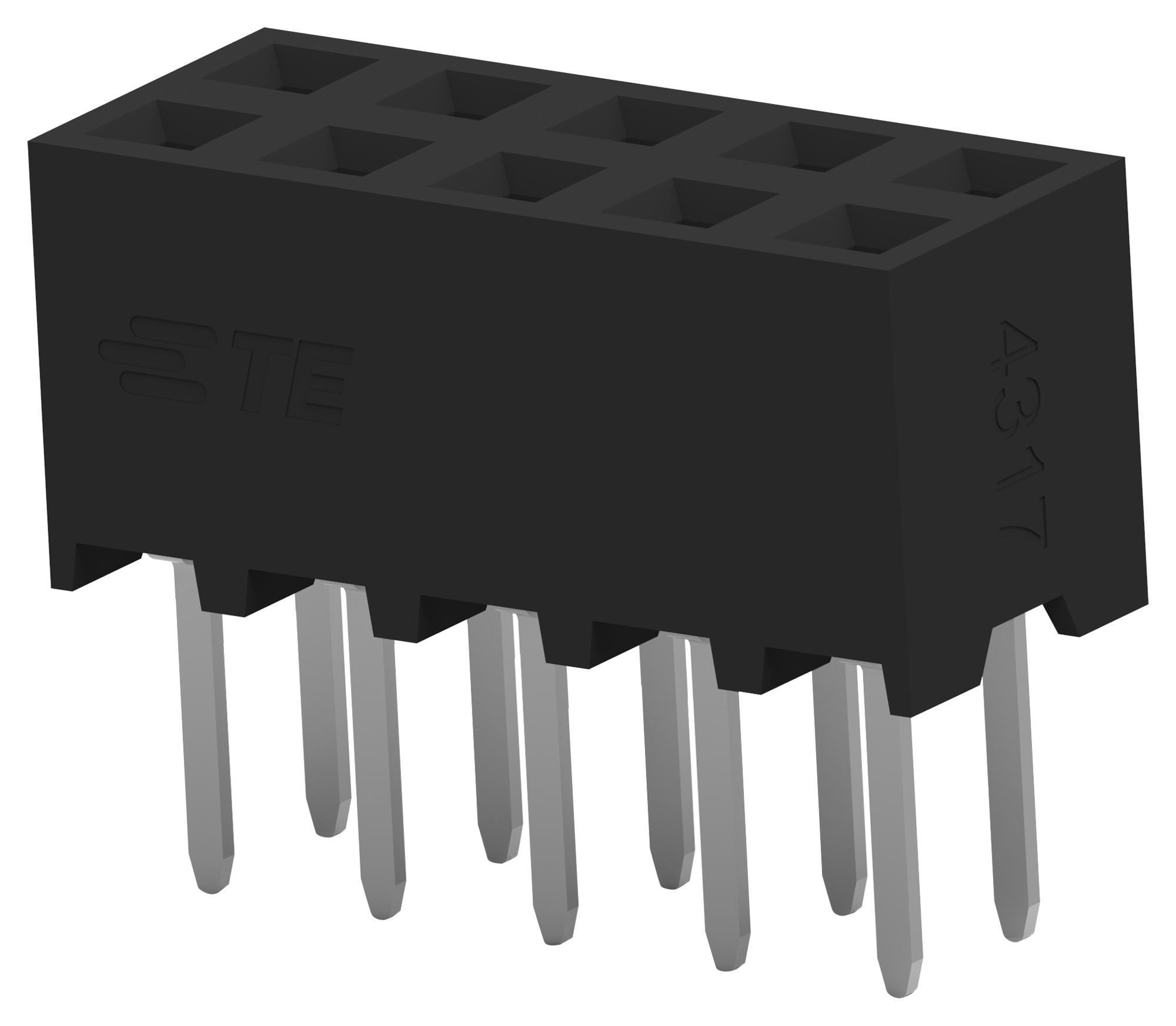

Buy the Buy TE Connectivity AMPMODU 2mm Part Number 123148200 Online
Discover the high-quality TE Connectivity AMPMODU 2mm Board-to-Board Receptacles, engineered for reliable electrical connections in industrial automation and control systems. These compact connectors feature dual beam contacts and are suitable for surface-mount and through-hole mounting processes, ensuring ease of assembly and durable performance. Designed to operate from -40°C to 125°C, they support a range of applications including PLCs, servo drives, and instrumentation. Enjoy fast online ordering and seamless integration into your manufacturing process with these space-efficient connectors.
Get TE Connectivity AMPMODU 2mm Receptacles today—designed for reliable, space-saving PCB connections in automation and industrial controls.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 123148200?
You can click on the BUY or RFQ button to purchase 123148200 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 123148200?
You can download the 123148200 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 123148200?
TE CONNECTIVITY
