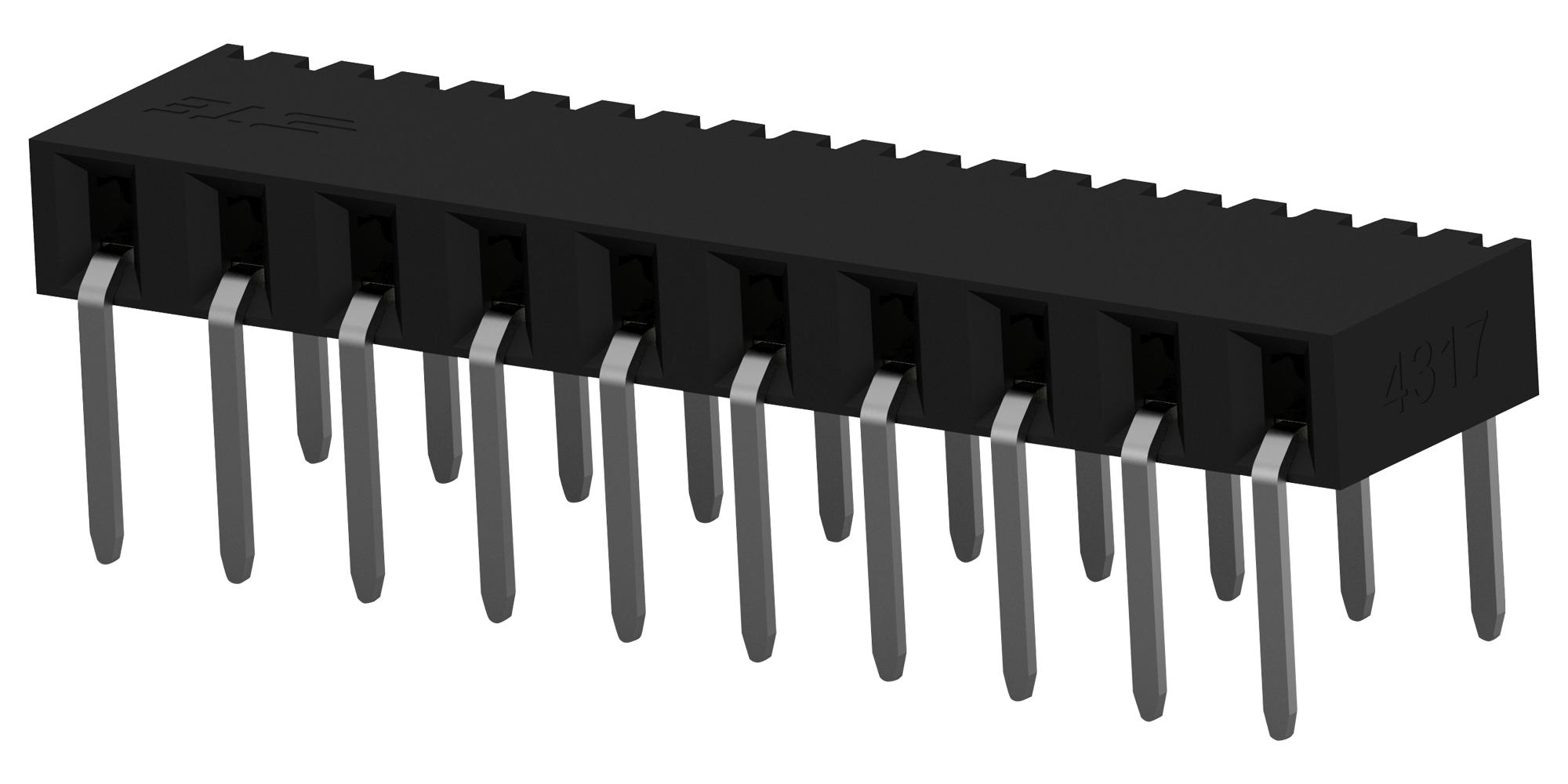

TE CONNECTIVITY 123149360 Board-to-Board Receptacle
TE Connectivity's AMPMODU 2mm Board-to-Board Receptacles offer a compact solution for connecting boards, occupying 38% less space than traditional connectors. Featuring phosphor bronze contacts with dual cantilever beams and housed in high-temperature LCP plastic, these receptacles provide reliable signal transfer and are compatible with various mounting processes. They are ideal for applications in PLC, servo drives, industrial controls, material handling, instrumentation, and building automation.
TE CONNECTIVITY 123149360 Board-to-Board Receptacle Specifications:
- Centerline: 2.00mm [0.079"]
- Contact Type: Dual beam receptacle
- Entry Type: Top- and dual-entry vertical and horizontal
- Mounting Type: Surface-mount and through-hole
- Solder Tail Lengths: 1.6mm to 2.4mm [0.063" to 0.094"]
- Positions per Row: Up to 25
- Environmental: UL94V0, halogen free / low halogen
- Operating Temperature: -40°C to 125°C
- Vibration: No electrical discontinuity greater than 1 microsecond
- Reflow Solder Temperature: Capable to 260°C
- Plating Options: 30 μ " [0.76 μ m] Gold, 15 μ ” [0.38 μ m] Gold, 4 μ '' [0.1 μ m] Gold
- Contact Material: Phosphor Bronze
- Housing Material: High temperature plastic (LCP), UL 94V0, Black
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Certifications: UL Certified, VDE Approval Pending
- Product Specification: 108-64040
- Application Specification: 114-32186
Buy the 1-2314936-0 TE CONNECTIVITY Board-to-Board Receptacle | myMectronic
Purchase the TE Connectivity 1-2314936-0 AMPMODU 2mm Board-to-Board Receptacle securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 123149360?
You can click on the BUY or RFQ button to purchase 123149360 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 123149360?
You can download the 123149360 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 123149360?
TE CONNECTIVITY
