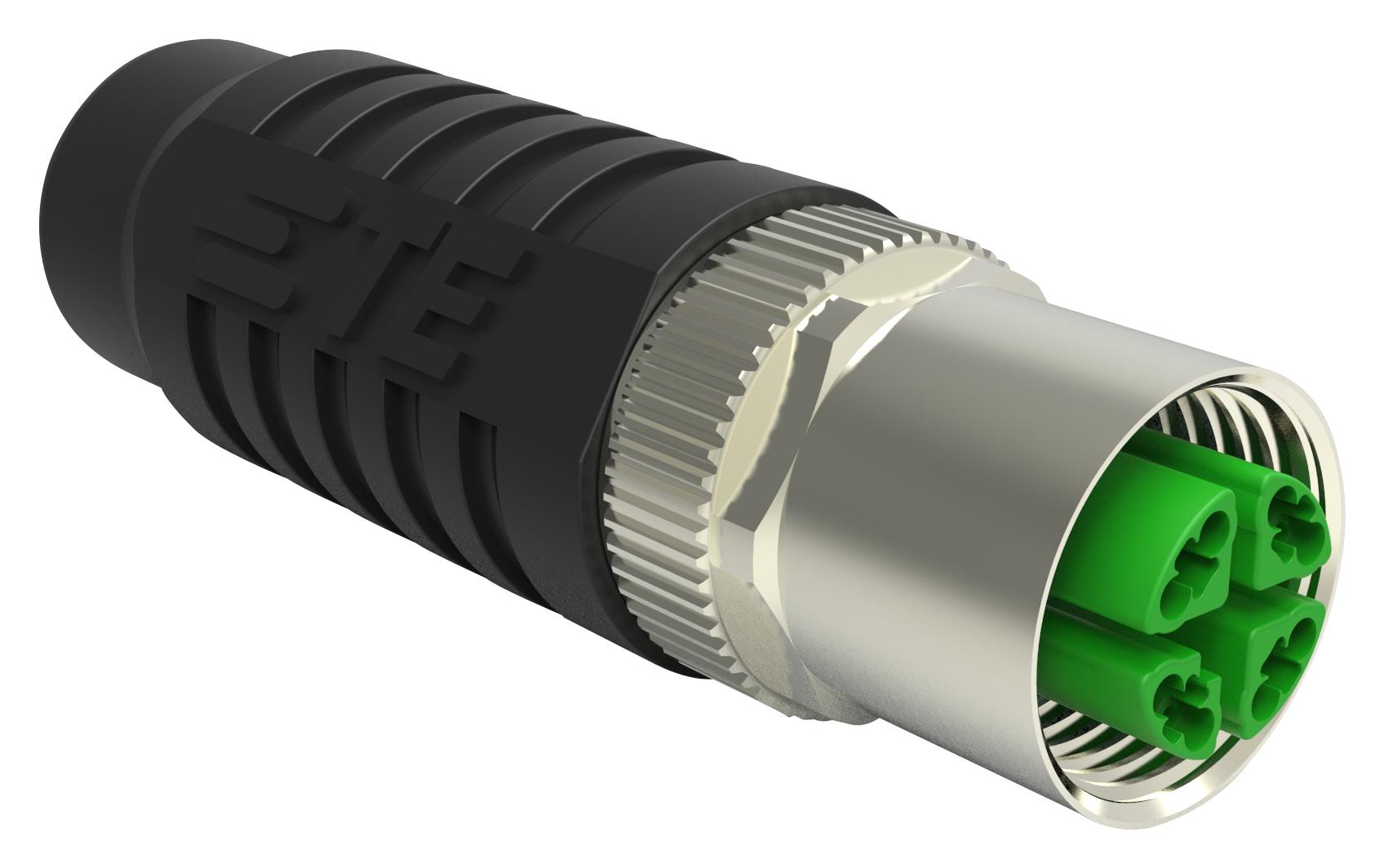

TE CONNECTIVITY 123157151 M12 X-Code Connector
TE Connectivity's M12 X-Code connectors are designed for demanding applications in modern railway networks, prioritizing speed and reliability. The full metal shell and IP67 sealing provide robust protection, while the 360° cable shield termination ensures optimal data transmission speeds. Machined gold-plated crimp contacts and a torsion-free jacket crimping system guarantee uninterrupted service throughout the connector's lifetime. These connectors support data rates up to 10Gbps and are compliant with various industry standards, making them suitable for a wide range of industrial applications.
TE CONNECTIVITY 123157151 M12 X-Code Connector Specifications:
- Connectors: M12 acc. IEC 61076-2-109
- Coding-Pin number: X
- Current rating: 0.5 A
- Nominal voltage: 48 V
- Contact resistance: <5mΩ
- Insulation resistance: >100 mΩ
- Overvoltage category: acc. to EN 60664-1:2007
- Pollution degree: 3 acc. to EN 60664-1:2007
- Category: cat. 6A
- Data transmission rate: Up to 10Gbit acc. to IEC 802.3an
- Termination single wire: Machined crimp snap-in contacts
- Wire size: AWG 22-28
- Cable strain relief and cable shield termination: Crimp fange system with crimp insert + crimp sleeve
- IP protection: IP67 (only screw-locked)
- Temperature range: With grip cap: -40oC to +70oC Withoutgripcap: -40oC to +85oC
- Mechanical lifetime: >250 mating cycles
- Shock and vibration: DIN EN 61373 Category 1, class B
- Housing: Cu alloy Ni plated
- Insulator & Contact holder: Thermoplast I2/F2 acc. to NFF-16-101/102 and HL3 acc. to R22/R23 EN45545-2
- Material: Cu alloy
- Plating: Au
- Grip booth: TPE with S3 and SR2 acc. to DIN 5510-2
- Sealings: Elastomer
