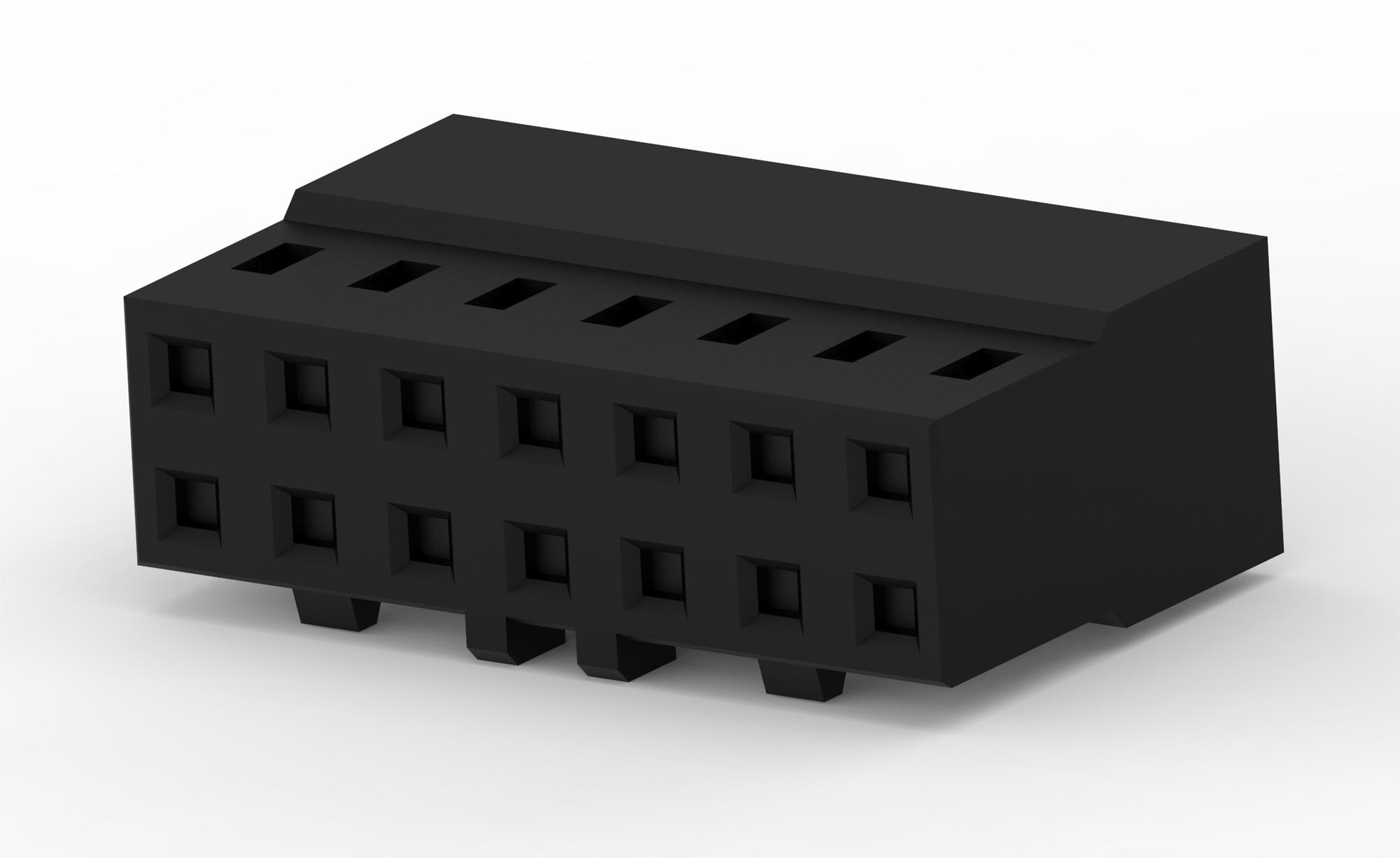

TE CONNECTIVITY 123161094 2 mm Wire-to-Board Receptacle
TE Connectivity’s AMPMODU 2 mm Wire-to-Board Crimp Receptacles are designed to meet the packaging and interconnection requirements of miniature electronics. These connectors offer a 38% space savings on the PCB and provide reliable performance even in high-vibration industrial environments. They are available with various housing styles, contact plating options (gold or tin), and are suitable for wire ranges from 30 to 24 AWG. Applications include PLC/IO Devices, Servo Drives, Material Handling Equipment, and Instrumentation.
TE CONNECTIVITY 123161094 2 mm Wire-to-Board Receptacle Specifications:
- Current Rating: 2 A (max.)
- Dielectric Withstanding Voltage: 650V AC
- Operating Voltage: 125Vrms (max.)
- Product specification: 108-64040-1
- Application specification: 114-32173
- Operating temperature: -40°C to 105°C (tin plated)
- Operating temperature gold: -40°C to 125°C (gold plated)
- Vibration: No electrical discontinuity greater than 1 microsecond
- Plating options: 30 µ ” [0.76 µ m] gold, 15 µ ” [0.38 µ m] gold, 4 µ ” [0.1 µ m] gold flash, Tin
- Contact Material: Phosphor bronze
- Housing Material: High-temperature plastic (LCP), black
- Environmental: UL94V0, low halogen
- Operating environment class: III
Buy the 1-2316109-4 TE CONNECTIVITY 2 mm Wire-to-Board Receptacle | myMectronic
Purchase the TE Connectivity 1-2316109-4 AMPMODU 2 mm Wire-to-Board Crimp Receptacle securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 123161094?
You can click on the BUY or RFQ button to purchase 123161094 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 123161094?
You can download the 123161094 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 123161094?
TE CONNECTIVITY
