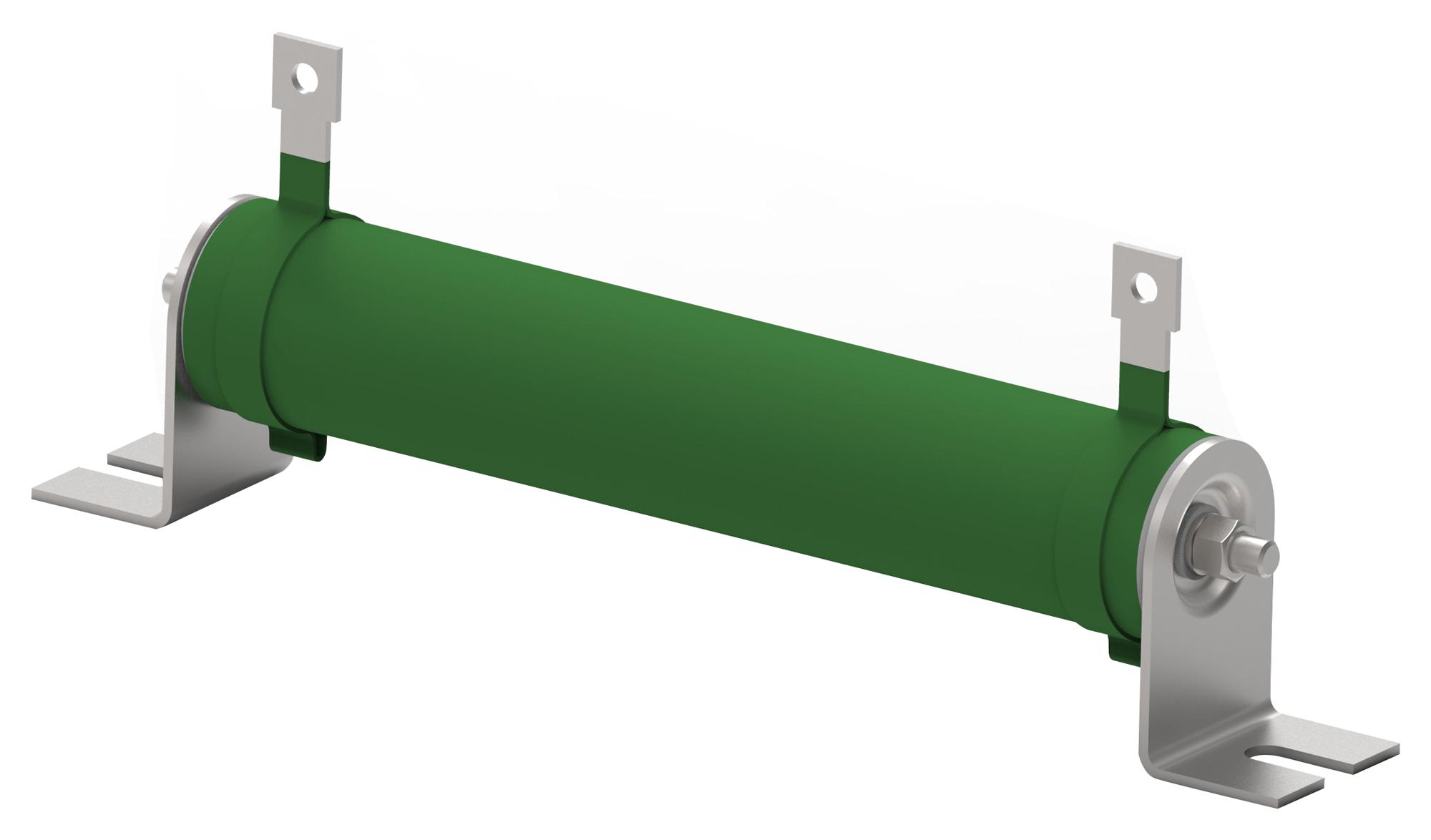

TE CONNECTIVITY TE80BR10J High Power Wire Wound Resistor
The TE series high-power wire wound resistors are flameproof coated tubular ceramic core resistors designed for demanding applications. They offer enhanced power handling, durability, and stability in heavy-duty machinery, electrical equipment, and motor control systems. Capable of operating within -55°C to +155°C and handling short-term overloads of 5 seconds at three times their rated power, they feature flameproof construction with UL94V coating, a dielectric strength of 2500VAC, and an insulation resistance of at least 20 MΩ at 500VDC. Typical uses include load testing, dynamic braking, and equipment discharge, with standard mounting brackets ensuring easy installation.
TE CONNECTIVITY TE80BR10J High Power Wire Wound Resistor Specifications:
- Resistor Type: Power Resistor
- Element Type: Wire Wound
- Dimensions: 196 x 28 x 61 mm
- Power Rating: 80 W
- Resistance Value: 12
- Resistance Class: Up to 1kQ
- Passive Component Tolerance: 5%
- Termination: Mounting Terminals
- Temperature Range: -55°C to +155°C
- Dielectric Strength: 2500VAC
- Insulation Resistance: ≥20 MΩ at 500VDC
- Flameproof Coating: UL94V
- Overload Capacity: 3x rated power for 5 seconds
- Material: Ceramic core, wire wound design
- Compliance: UL listed, flameproof with safety standards
Buy the CGS 4-1879443-2 – Reliable Power Resistor for Industrial Applications
Order the high-power wire wound resistor designed for demanding industrial applications. Featuring flameproof coating, reliable performance in heavy machinery, load testing, and motor control. Ensures stability and durability across temperatures from -55°C to +155°C. Easy to install with standard mounting brackets, supporting short-term overloads at three times rated power. Perfect for dynamic braking, equipment discharge, and other high-power needs, offering robust dielectric strength and insulation resistance to meet safety standards. Purchase online for fast delivery and expert support.
Get CGS 4-1879443-2 today—built for high power, stability, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TE80BR10J?
You can click on the BUY or RFQ button to purchase TE80BR10J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TE80BR10J?
You can download the TE80BR10J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TE80BR10J?
TE CONNECTIVITY
