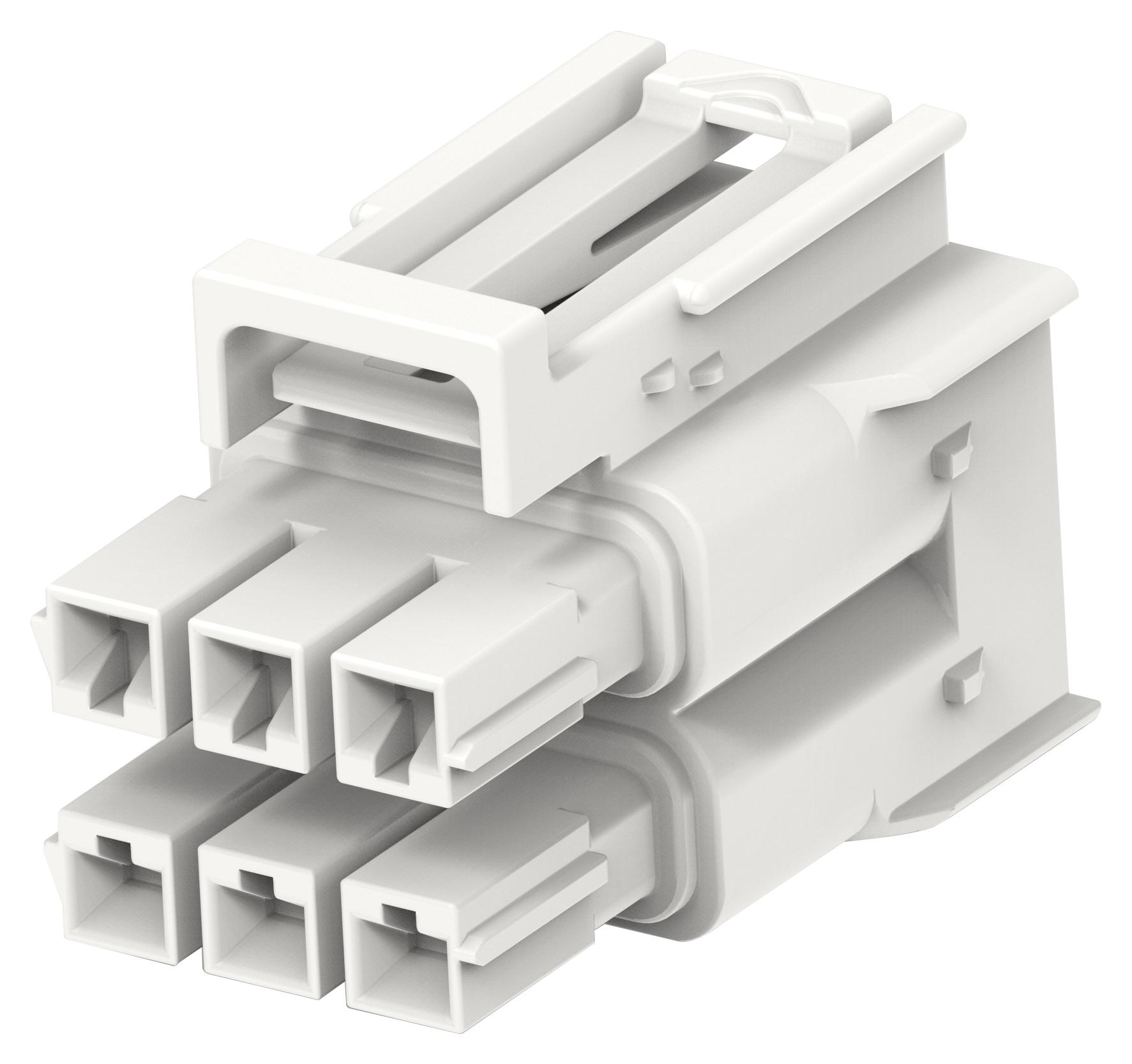

TE CONNECTIVITY 123362296 Rectangular Power Connector Housing
The TE Connectivity 1-2336229-6 Power Versa-Lock connector housing is a robust solution for power transmission in various industrial applications. Designed for wire-to-wire connections, this housing provides a secure and reliable interface. Its sealable design protects against environmental factors, making it suitable for harsh environments. With a 6-position configuration and a 5mm centerline, it offers flexibility in system design. Constructed from PBT GF material and rated UL 94V-0, this connector housing ensures both durability and safety.
TE CONNECTIVITY 123362296 Rectangular Power Connector Housing Specifications:
- Rectangular Power Connector Type: Housing
- Connector & Housing Type: Plug
- Connector System: Wire-to-Wire
- Number of Positions: 6
- Centerline (Pitch): 5 mm [ .197 in ]
- Sealable: Yes
- Connector & Contact Terminates To: Wire & Cable
- Number of Columns: 3
- Number of Rows: 2
- Keying: A
- Seal Type: Interfacial Seal
- Number of Power Positions: 6
- Operating Voltage: 600 VDC
- Contact Layout: Matrix
- Contact Retention Within Housing: Without
- Contact Type: Receptacle
- Termination Method to Wire & Cable: Crimp
- Housing Color: Natural
- Housing Material: PBT GF
- Cable Exit Angle: Straight
- Row-to-Row Spacing: 7.25 mm[.285 in]
- Operating Temperature Range: -30 – 140 °C[-22 – 284 °F]
- Circuit Application: Power
- Circuit Identification Feature: With
- UL Flammability Rating: UL 94V-0
- Glow Wire Rating: Standard Part - Not Glow Wire
- UL Rating: Recognized
- Agency/Standard Number: E28476
- Agency/Standard: UL
- Packaging Method: Carton
- For Use With: Cap, Receptacle, Seals, TPA
- EU RoHS Directive 2011/65/EU: Compliant
- EU ELV Directive 2000/53/EC: Compliant
- China RoHS 2 Directive MIIT Order No 32, 2016: No Restricted Materials Above Threshold
- EU REACH Regulation (EC) No. 1907/2006: Current ECHA Candidate List: JAN 2021 (211) Candidate List Declared Against: JAN 2021 (211) Does not contain REACH SVHC
- Halogen Content: Not Low Halogen - contains Br or Cl > 900 ppm
- Solder Process Capability: Not reviewed for solder process capability
