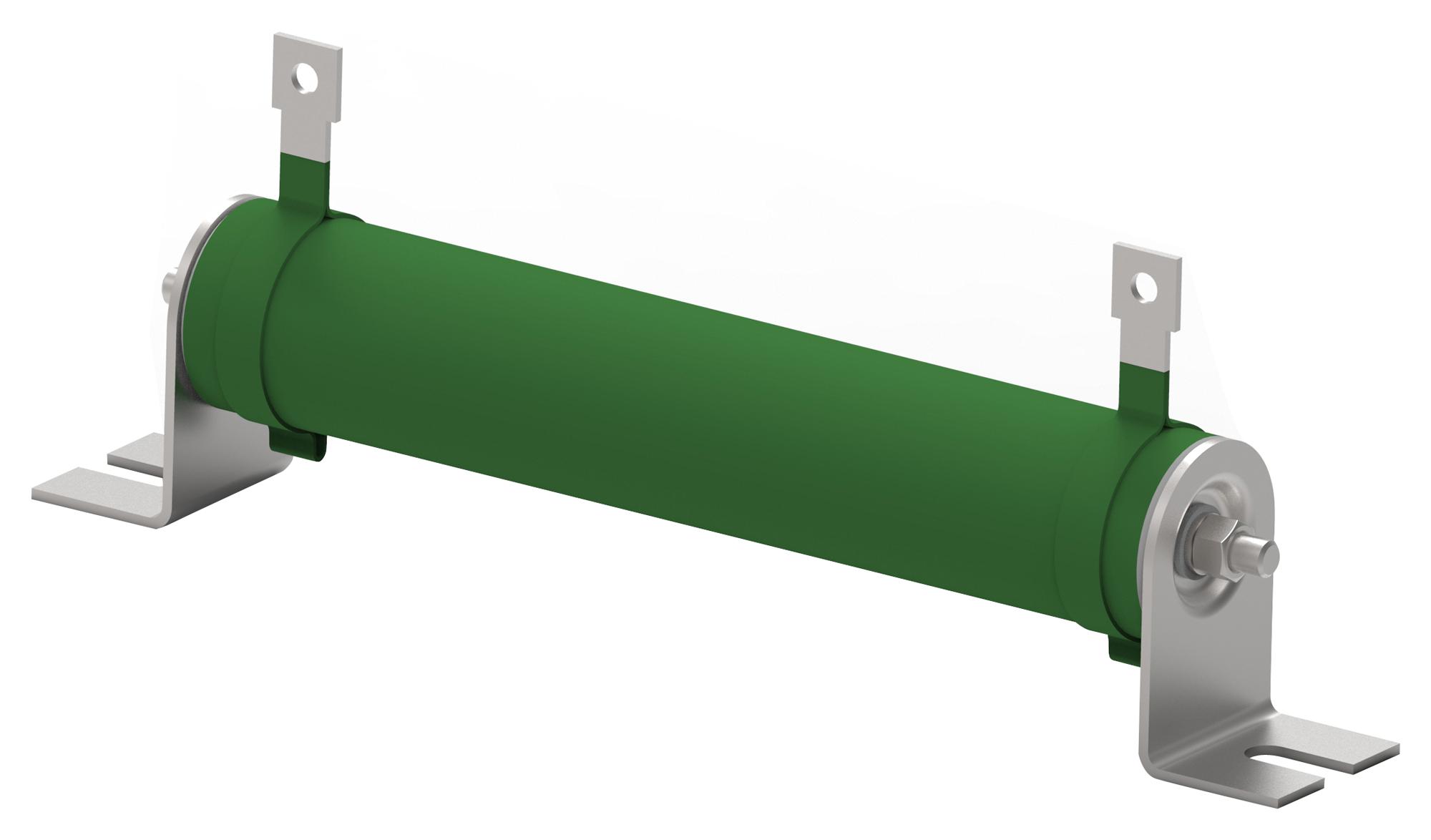

TE CONNECTIVITY TE80BR27J Power Resistor
The TE Series high-power wire-wound resistors are flameproof coated tubular ceramic core resistors designed for heavy-duty machinery and electrical applications. They incorporate both standard and edge-wound winding techniques to improve power capacity, making them suitable for load testing, motor control, and dynamic braking. These resistors operate within -55°C to +155°C, feature a short-term overload capacity of 3x rated power for 5 seconds, and have a dielectric strength of 2500VAC. Their reliable construction includes UL94V flameproof coating and a standard mounting bracket for easy installation.
TE CONNECTIVITY TE80BR27J Power Resistor Specifications:
- Resistor Type: Power Resistor
- Element Type: Wire Wound
- Dimensions: 196 x 28 x 61 mm
- Number of Terminations: 2
- Packaging Method: Box
- Passive Component Tolerance: 5%
- Resistance Value: 27 Q
- Resistance Class: Up to 1kQ
- Power Rating: 80 W
- Temperature Coefficient: +400 ppm/°C
- Operational Temperature Range: -55°C to +155°C
- Dielectric Strength: 2500 VAC minimum
- Insulation Resistance: ≥20 MΩ at 500VDC
- Flameproof Coating: UL94V
Buy the Buy CGS TE Power Resistor Part Number TE80BR27J Online
Secure your high-power wire-wound resistor online today. The CGS TE80BR27J offers exceptional stability, flameproof coating, and reliable operation from -55°C to +155°C. Designed for heavy machinery, motor control, and load testing, it provides 80W power capacity with 5% tolerance. Its robust ceramic core construction features UL94V flameproof coating and a standard mounting bracket for easy installation. Ensure your industrial equipment’s safety and efficiency by purchasing this dependable and high-quality resistor directly through our online store today.
Order your CGS TE80BR27J high-power wire-wound resistor today and ensure reliable performance for heavy-duty electrical applications with durable construction.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TE80BR27J?
You can click on the BUY or RFQ button to purchase TE80BR27J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TE80BR27J?
You can download the TE80BR27J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TE80BR27J?
TE CONNECTIVITY
