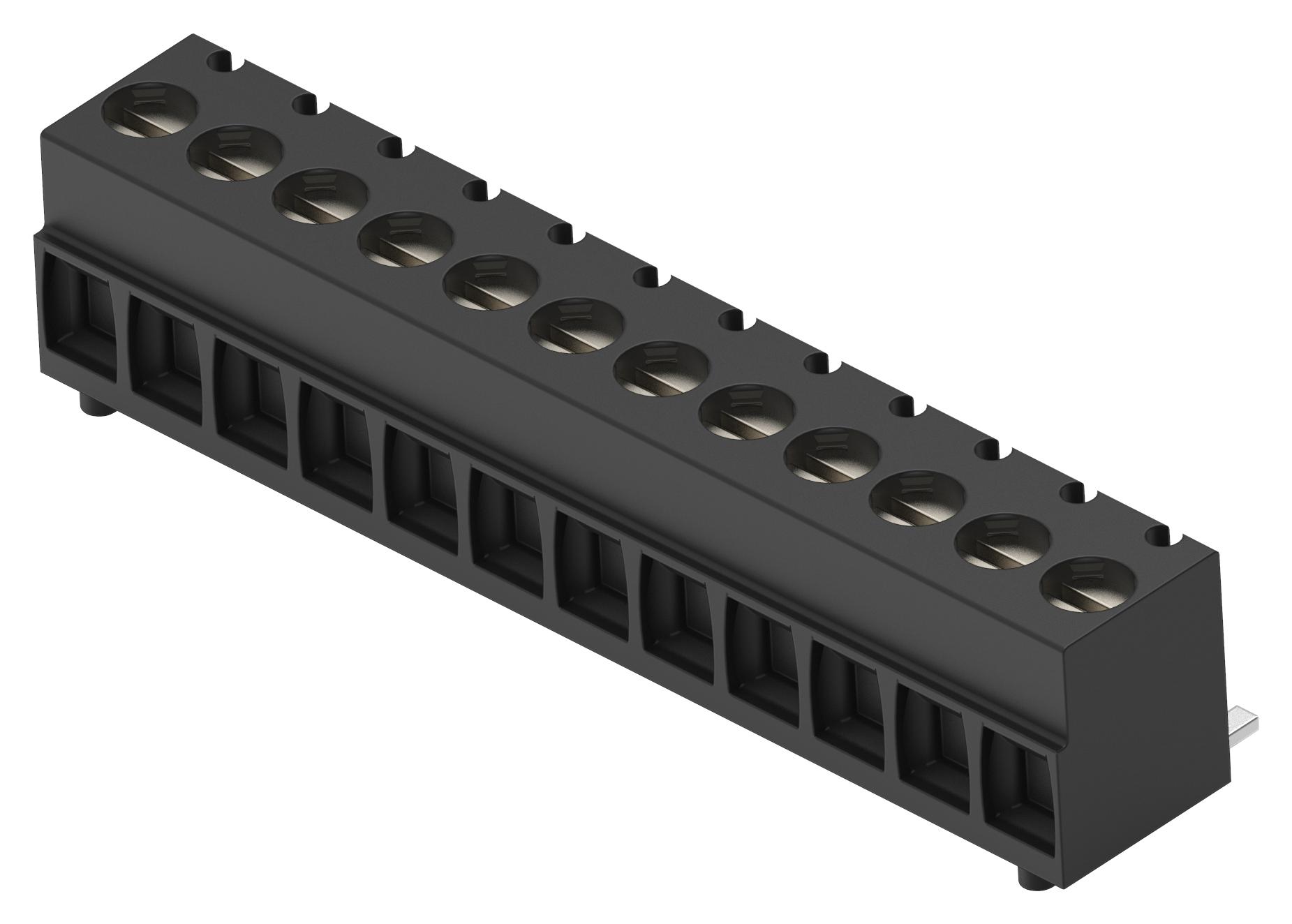

TE CONNECTIVITY 123839422 12 Position Wire-to-Board Header
The TE Connectivity 1-2383942-2 is a PCB terminal block header designed for wire-to-board connections. This header offers 12 positions arranged in a single row with a 3.5mm centerline. Its side wire entry angle facilitates easy wire termination, and it supports wire sizes ranging from 28 to 16AWG. The connector is constructed with a copper alloy contact base and a high-temperature polyamide housing, ensuring durability and performance in various industrial applications. It is suitable for power and signal circuit applications and is packaged in tape and reel format for automated assembly.
TE CONNECTIVITY 123839422 12 Position Wire-to-Board Header Specifications:
- Wire Protection: With
- Block Type: PCB Mount
- Terminal Block Connector Type: Header
- Connector System: Wire-to-Board
- Connector & Contact Terminates To: Printed Circuit Board
- Threaded Flange: Without
- Stacked Levels: Level 1
- Stacking Configuration: Side Stackable
- Number of Positions: 12
- Number of Rows: 1
- Wire Entry Angle: Side
- Current Rating (Max): 12 A
- Voltage Rating: 300 VAC
- Interlock: Without
- Color: Black
- Contact Mating Area Plating Material: Tin
- Contact Mount: Surface Mount
- Contact Base Material: Copper Alloy
- Mechanical Attachment: None
- Screw Size: M2
- Screw Plating Material: Tin
- Screw Material: Copper Alloy
- Screw Flange: Without
- Connector Mounting Type: Board Mount
- Housing Color: Black
- Housing Material: High Temperature Polyamide
- Centerline (Pitch): 3.5 mm[.13 in]
- Wire Size: .08 – 1.31 mm²
- Operating Temperature Range: -40 – 105 °C[-40 – 221 °F]
- Circuit Application: Power & Signal
- Packaging Method: Tape & Reel
- Packaging Quantity: 300
Buy the 1-2383942-2 TE CONNECTIVITY 12 Position Wire-to-Board Header | myMectronic
Purchase the TE Connectivity 1-2383942-2 PCB terminal block header securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 123839422?
You can click on the BUY or RFQ button to purchase 123839422 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 123839422?
You can download the 123839422 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 123839422?
TE CONNECTIVITY
