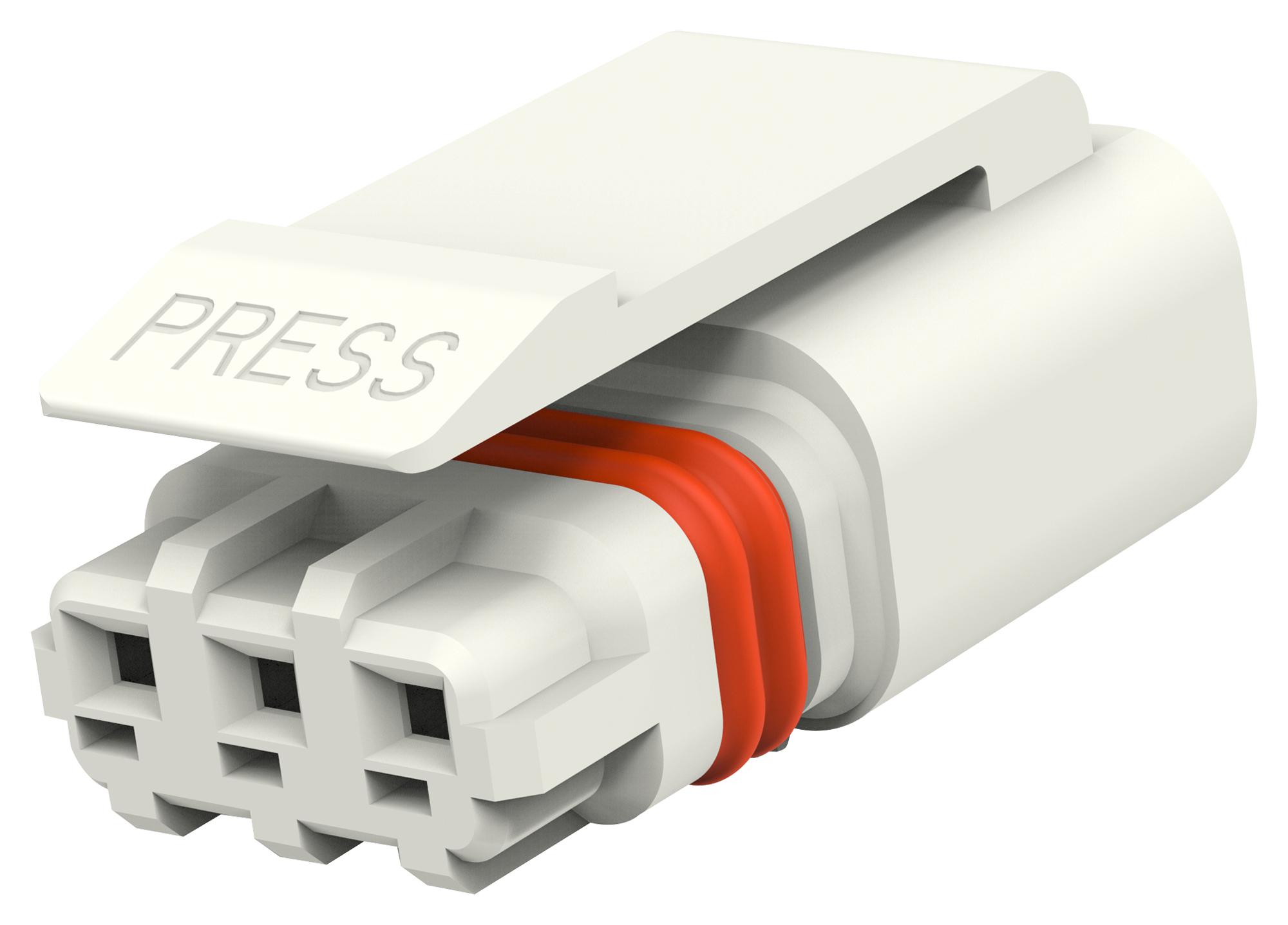

TE CONNECTIVITY 128340743 Waterproof Connector
The SlimSeal connector is a compact, IP67-rated waterproof system designed for outdoor lighting, digital signage, and harsh environments. Made with durable materials, it features a secure press-to-release latch, pre-assembled seals, and various color options for easy identification. Suitable for wire-to-wire and wire-to-board applications, it supports up to 18-22 AWG wires, operates between -40°C to +105°C, and meets UL1977 standards, ensuring high reliability in outdoor electronics, HVAC, communication, and security systems with simple installation and robust protection against dust and water ingress.
TE CONNECTIVITY 128340743 Waterproof Connector Specifications:
- Housing Material: LCP, UL 94 V-0
- Contact Material: Copper alloy with tin plating
- Seal Material: Rubber
- Waterproof Level: IP67
- Current Rating: 5A Max. (wire-to-board), 3A Max. (wire-to-wire)
- Voltage Rating: 250VAC (wire-to-board); 400VAC (wire-to-wire)
- Operating Temperature: -40°C to +105°C
- Durability: 30 cycles
- Wire Range: 18-22 AWG
- UL1977 Approval: Yes
- Dimensions: Varied depending on configuration, typical sizes suitable for small connector systems
- Application: Outdoor lighting, digital signage, HVAC, communication, security systems
- Certifications: UL Listed
- Features: Dustproof, waterproof, secure latching, pre-assembled seals
- Colors: Natural, Black, Red, White
Buy the TE Series SlimSeal Waterproof Connector: 128340743
Purchase the TE SlimSeal waterproof connector online today to ensure your outdoor and harsh environment applications are protected with a durable, IP67-rated system. Designed for ease of installation with pre-assembled seals and a secure press-to-release latch, this connector supports wire sizes from 18 to 22 AWG, withstands temperatures from -40°C to +105°C, and is UL1977 approved for safe, reliable operation. Perfect for outdoor lighting, digital signage, HVAC, and communication systems, it offers flexible color options for easy identification and space-saving design for compact installations.
Buy TE Connectivity SlimSeal waterproof connector now and experience unmatched reliability, secure connection, and easy installation in harsh environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 128340743?
You can click on the BUY or RFQ button to purchase 128340743 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 128340743?
You can download the 128340743 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 128340743?
TE CONNECTIVITY
