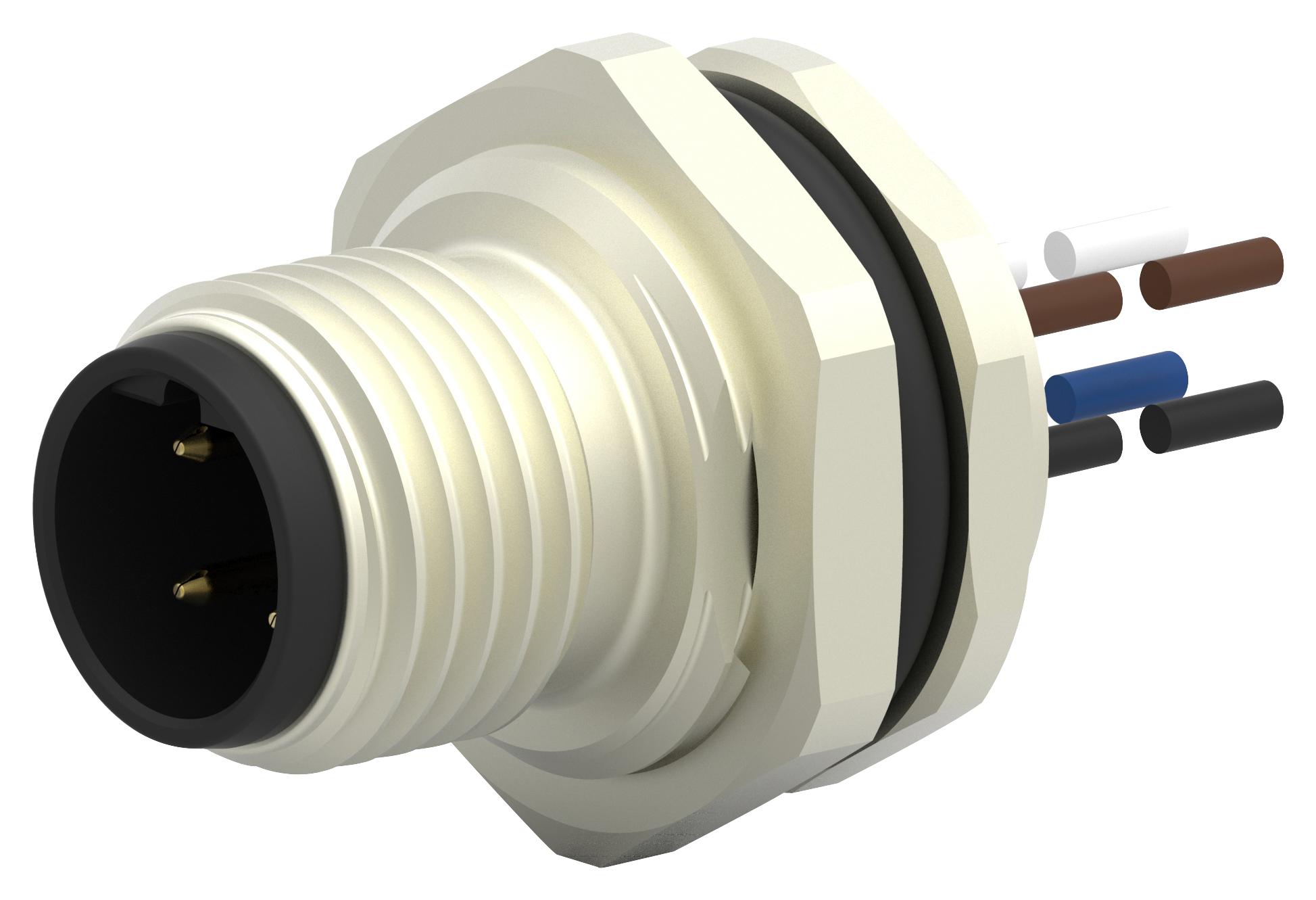

TE CONNECTIVITY T4171010404001 M12 Circular Connector
The M12 connector is a sealable, circular, wire-to-panel connector designed for signal applications. It features four positions, a nickel shell, and a copper alloy contact with a maximum current rating of 4A. Suitable for industrial environments, it offers IP67 water sealing, operates within -40°C to 85°C, and is compliant with EU RoHS and REACH standards, ensuring safety and reliability. Its durable construction and sealing capabilities make it ideal for industrial automation, sensors, and machinery wiring, providing secure connections in demanding conditions.
TE CONNECTIVITY T4171010404001 M12 Circular Connector Specifications:
- Connector System: Wire-to-Panel
- Number of Positions: 4
- Sealable: Yes
- Contact Current Rating (Max): 4A
- Operating Voltage: 250 VAC
- Shell Material: Nickel
- Contact Material: Copper Alloy
- Insulation Material: Polyamide
- Water Sealing Level: IP67
- Operating Temperature Range: -40°C to 85°C
- Material: Metal Shell, Gold-plated Pins
- Size: Circular, Shell Size 12
- Wire Size: 0.2M wire, 18-0.5 mm²
- Standards: EU RoHS, REACH Compliant
- Environmental Protection: Sealed
- Body Features: Sealed, Metal Shell
- Mating Type: Plug
- Keying & Polarized Position: B
- Field Serviceable: No
Buy the TE Series T417 M12 Connector: T4171010404-001
Upgrade your industrial automation or sensor wiring with the TE T4171010404-001 M12 circular connector. Designed for durability and reliable connections, it features a sealed IP67 water-resistant shell, four secure contacts rated up to 4A, and a robust nickel shell for harsh environments. Its compact circular design with keying ensures proper mating, suitable for machinery, automation, and industrial control systems. Easy to install, UL and RoHS compliant, this connector guarantees safety, longevity, and high-performance operation in demanding industrial settings.
Buy TE T4171010404-001 M12 connector now and experience unmatched reliability and performance in industrial signal wiring.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4171010404001?
You can click on the BUY or RFQ button to purchase T4171010404001 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4171010404001?
You can download the T4171010404001 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4171010404001?
TE CONNECTIVITY
