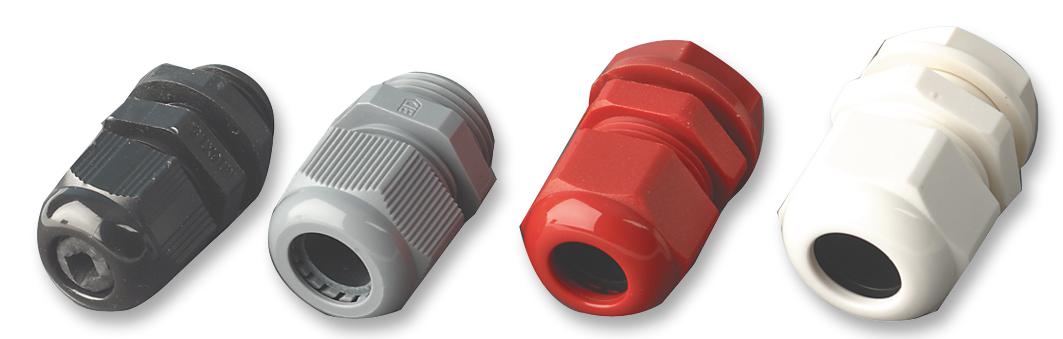

TE CONNECTIVITY 14787692 Nylon Cable Gland
The TE Connectivity 1478769-2 nylon metric cable gland is a robust solution for securing cables in environments prone to vibration. Constructed from zero halogen polyamide 6, it provides excellent insulation and protection. The integrated neoprene seal ensures a tight, waterproof seal up to IP68, while the anti-vibration cap minimizes loosening due to movement. This gland is ideal for applications in machine tools, electrical junction boxes, automotive systems, and robotics, where reliable cable connections are essential. Its temperature range of -30°C to +80°C permanent and up to +150°C intermittent ensures performance in demanding conditions.
TE CONNECTIVITY 14787692 Nylon Cable Gland Specifications:
- anti_vibration_cap: Yes
- locknut_included: Yes
- material: Zero Halogen Polyamide 6
- seal_material: Neoprene
- protection_class: IP68/5 bar
- temperature_range_permanent: -30 °C up to +80 °C
- temperature_range_intermittent: up to +150 °C
- vde_approved: Yes
- available_colors: Black, Grey, Red, White
- cable_range: 34.0–44.0 mm
- size: M16
- gland_assembly_dimensions_td: 16.0 mm
- gland_assembly_dimensions_tl: 10.0 mm
- gland_assembly_dimensions_h: 22.0 mm
