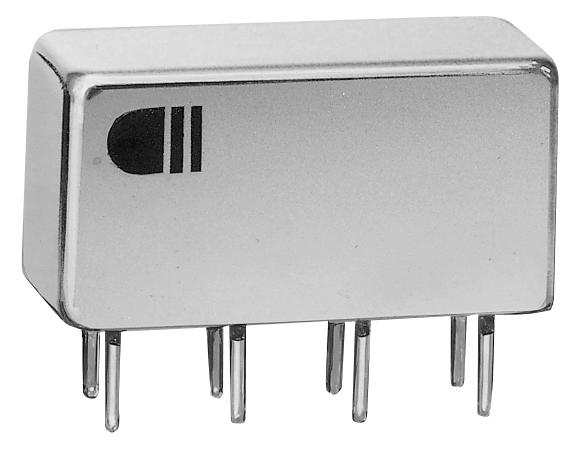

TE CONNECTIVITY 16170388 Industrial Signal Relay
The product is a high-performance, hermetically sealed relay suitable for low signal industrial applications. It features double pole, DPDT contact arrangement with contact resistance of 50 milliohms before use and 100 milliohms after life cycle. Capable of switching up to 2 amps, it offers a range of coil voltages from 5 to 48 Vdc, with a coil power of 1.4 watts. Designed for high shock, vibration resistance, RF switching, and environmental durability, this relay is ideal for demanding automation and control systems with reliable long-term performance.
TE CONNECTIVITY 16170388 Industrial Signal Relay Specifications:
- Contact Arrangement: 2 Form C (DPDT)
- Contact Material: Hardened silver alloy (stationary), Gold plated hardened silver alloy (moveable)
- Contact Resistance: 50 milliohms max (before life), 100 milliohms max (after life) @ 10 mA @ 6 Vdc and 2 A @ 28 Vde
- Mechanical Life Expectancy: 50 million operations
- Coil Voltage: 5 to 48 Vdc (HFW), 6 to 26.5 Vdc (HMB), 5 to 36 Vdc (HMS)
- Coil Power: 1.4 watts max. @ 25°C
- Timing: Operate Time 4-6 ms, Release Time 4-6 ms, Contact Bounce 2.0 ms max.
- Dielectric Withstanding Voltage: 500 Vms (Open contacts), 1000 Vrms (Between adjacent and coil contacts)
- Insulation Resistance: Min. 10,000 megohms @ 500 Vdc
- Environmental: Temperature -65°C to +125°C, Vibration: 20-30 G's depending on model, Shock resistance: 50-100 G's
- Weight: 13 grams
- Certifications: MIL-R-39016/6, MIL-R-39016/22, MIL-R-39016/44
- Dimensions: Refer to datasheet, in millimeters
Buy the TE 16170388 – Reliable Industrial Signal Relay for Automation Systems
Enhance your automation system with the TE 16170388 relay, engineered for durability and precise switching. This hermetically sealed relay offers dependable operation up to 2 amps, ensuring high shock and vibration resistance. Its versatile coil voltage options from 5 to 48 Vdc make it suitable for a variety of industrial environments. Easy to integrate, it meets strict military standards for reliability. Order now online to benefit from fast delivery and get the best performance for your automation needs.
Buy TE 16170388 relay now and experience unmatched reliability and high performance in industrial automation and control applications.
