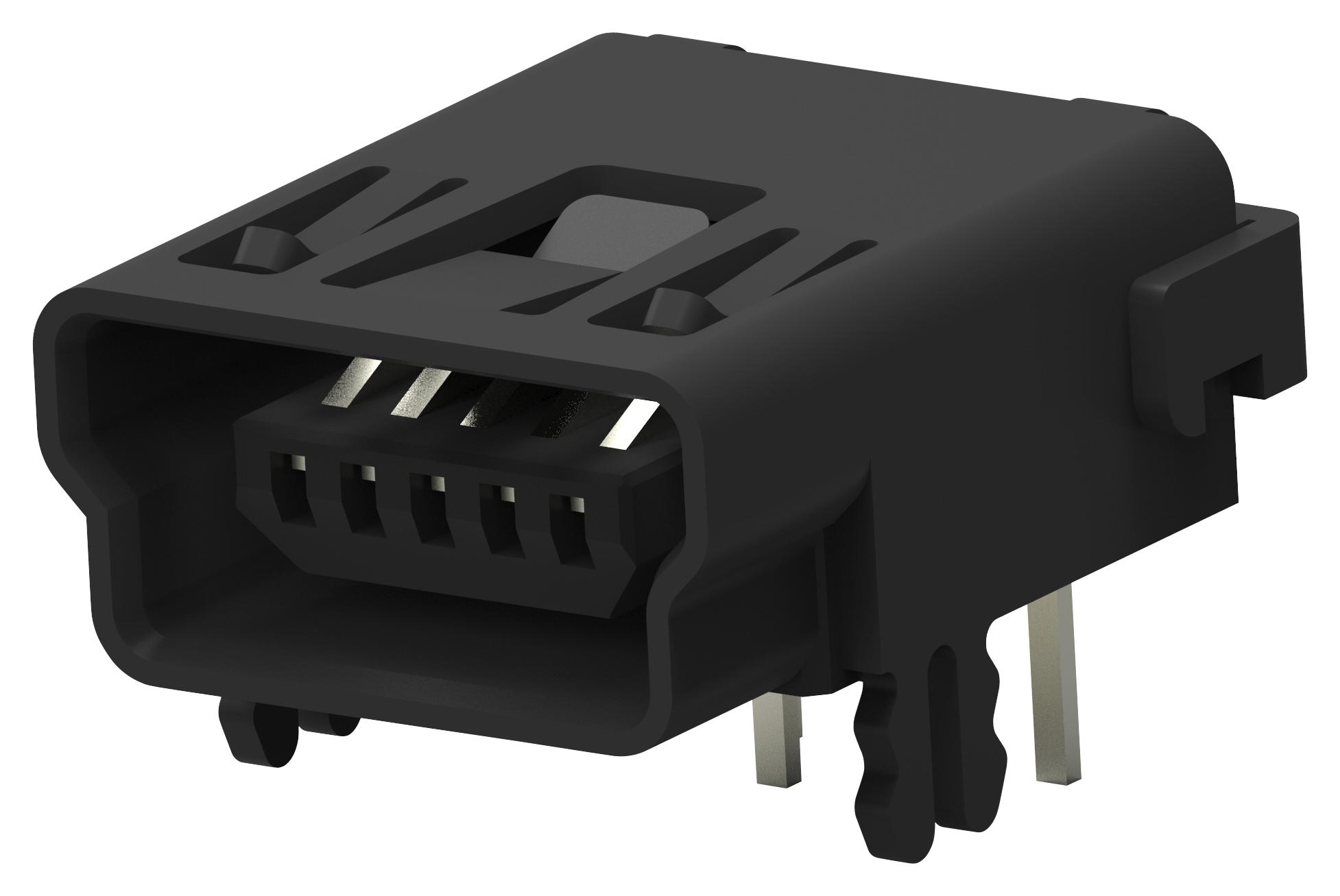

TE CONNECTIVITY 17345102 USB Receptacle
This USB connector features a mini profile receptacle design compatible with USB 2.0 standards. It has a right-angle, top port configuration suitable for PCB mounting through a through-hole soldering process. The connector is designed for cable-to-board applications, offering reliable electrical contact with gold flash over palladium nickel plating for durability. Its robust construction includes a matte shell finish, and it can withstand up to 5000 mating cycles. Suitable for applications requiring compact, high-speed data transfer connections in electronic and industrial systems.
TE CONNECTIVITY 17345102 USB Receptacle Specifications:
- USB Connector Type: B
- USB Version: 2.0
- Connector Profile: Mini
- Connector & Housing Type: Receptacle
- Number of Ports: 1
- Materials: Tin over Nickel, Gold Flash over Palladium Nickel
- Shell Plating Finish: Matte
- Contact Current Rating: 1A
- Body Orientation: Right Angle
- Connector Mounting Type: Through Hole - Solder
- Tail Length: 2.85 mm
- Operating Temperature Range: -40 to 85°C
- Maximum Soldering Temperature: 265°C
- Number of Mating Cycles: 5000
- UL Flammability Rating: UL 94V-0
- Housing Material: PA 9T
- Color: Black
Buy the TE Series USB B 2.0 Mini Receptacle: 17345102
Enhance your electronic assemblies with this high-quality mini USB B 2.0 receptacle. Designed for PCB mounting with right-angle through-hole configuration, it offers robust durability, gold-plated contacts, and a matte shell finish for long-lasting performance. Capable of withstanding up to 5000 mating cycles, this connector ensures reliable high-speed data transfer in industrial, consumer, and professional electronics. Easy to install and compliant with UL and RoHS standards, it is an essential component for reliable USB connections in demanding environments.
Order your TE Series USB B 2.0 Mini Receptacle today and give your electronic projects the reliable, high-speed data connectivity they deserve.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 17345102?
You can click on the BUY or RFQ button to purchase 17345102 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 17345102?
You can download the 17345102 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 17345102?
TE CONNECTIVITY
