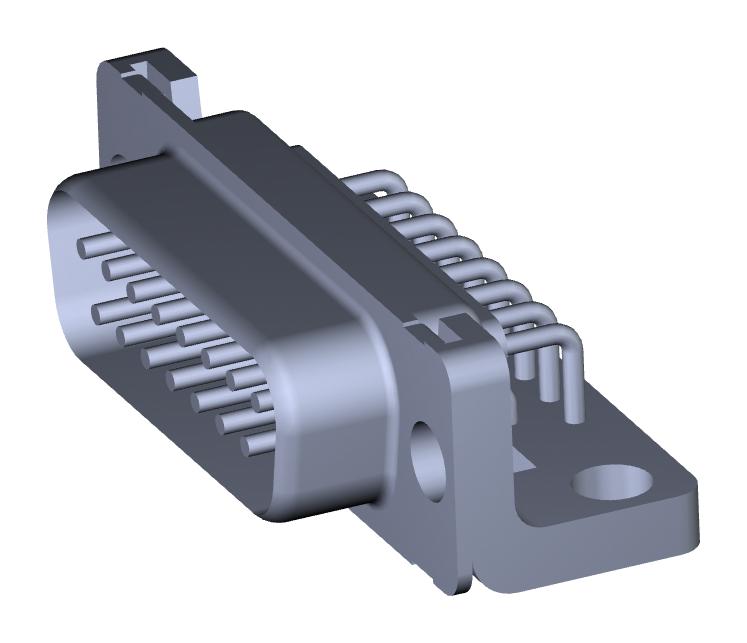

TE CONNECTIVITY 17578352 Sealed D-Subminiature Connector
Sealed AMPLIMITE D-Subminiature Connectors by TE Connectivity provide MIL-SPEC-grade performance with IP67 environmental sealing. Designed for harsh conditions, these connectors feature water and dust ingress protection, grommet sealing at the wire entry and a one-piece interfacial seal on the mating face. Suitable for aerospace, defense, and marine applications, they come in standard- and high-density series with sizes 20 and 22 contacts, made from copper alloy with gold plating. These connectors meet MIL-DTL-24308 standards, withstand temperatures from -55°C to +125°C, and are tested submerged to 1 meter for durability.
TE CONNECTIVITY 17578352 Sealed D-Subminiature Connector Specifications:
- Shell Material: Cadmium-plated steel
- Insert Material: Glass-filled polyester
- Sealing Grommets: Fluorosilicone rubber per A-A-59588
- Interfacial Seal: 80/20 fluorosilicone/silicone rubber blend
- Contacts: Copper alloy, plated gold over nickel
- Temperature Range: -55°C to +125°C
- Water and Dust Ingress Protection: IP67
- Contact Sizes: 20 and 22 AWG
- Current Rating: 7.5 A (Size 20), 50 A (Size 22)
- Standards Compliance: MIL-DTL-24308, IEC 60529
- Test Reports: Series 90: 502-134102, Series 109: 502-134103
Buy the TE Connectivity 17578352 – Reliable Sealed D-Subminiature Connectors for Industrial Applications
Enhance your equipment with the trusted quality of TE Connectivity sealed D-Subminiature connectors. Offering MIL-spec standards with IP67 water and dust ingress protection, these connectors are designed for demanding environments like aerospace, marine, and defense. Made from resilient materials, they feature robust sealing on the wire entry and mating face for maximum durability. Meet strict standards with high-quality gold-plated contacts, extensive temperature range support, and reliable performance tested submerged to 1 meter. Secure your supply chain by ordering online today for fast, dependable delivery.
Order your TE Connectivity Series17578352 sealed D-Subminiature connector today and ensure your projects are equipped with high-quality, durable waterproof connectors.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 17578352?
You can click on the BUY or RFQ button to purchase 17578352 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 17578352?
You can download the 17578352 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 17578352?
TE CONNECTIVITY
