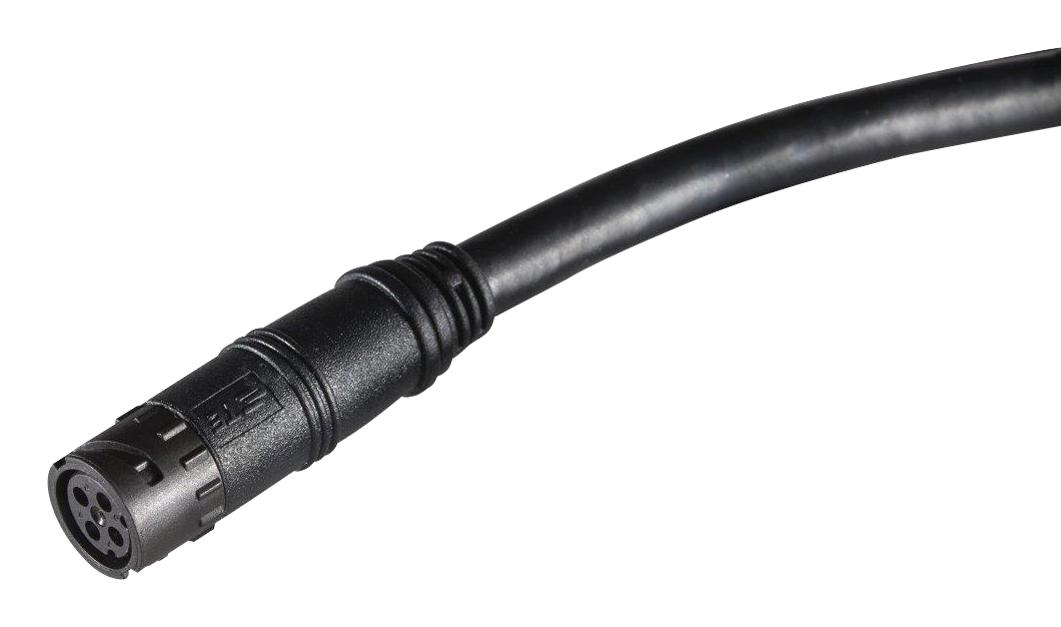

TE CONNECTIVITY 928340051 Sealed Circular Connector
TE Connectivity's IP67 Sealed Circular Plastic Connector is designed for robust power and signal wire connections in harsh environments. Rated IP67/68, it features a pre-positioned 1/4 turn coupling ring with positive lock and precise alignment, ensuring secure, easy installation. Suitable for outdoor LED and architectural lighting, it offers high dielectric withstanding voltage up to 1600 VAC and a compact circular design that saves space. Constructed with high-temperature thermoplastic housing and tin over nickel plated copper contacts, it withstands temperatures from -25°C to +80°C and endures 30 cycles of operation, delivering reliable, waterproof performance.
TE CONNECTIVITY 928340051 Sealed Circular Connector Specifications:
- Housing Material: High-temperature resistant thermoplastic, V0 rated
- Contact Material: Tin over nickel plated copper alloy
- Operating Current: 7A (2P), GA (3P & 4P)
- Operating Voltage: 300 VAC Max, 1600 VAC dielectric withstand voltage
- Operating Temperature: -25°C to +80°C
- Mechanical Durability: 30 cycles
- Waterproof Rating: IP67/68
- Coupling: Pre-positioned 1/4 turn with positive lock
- Application: Power and signal wiring in outdoor lighting
- Design: Compact circular connector with alignment features
- Application Specifications: Suitable for harsh outdoor environments
- Product Specifications: High temperature thermoplastic, UL V0 rated
- Connectivity: Secure contact engagement with audible locking sound
Buy the TE Series Circular Plastic Connector: 928340051
Purchase the TE Circular Plastic Connector today for robust outdoor wiring applications. Designed with a quick 1/4 turn coupling, high dielectric voltage, and waterproof IP67/68 rating, this connector ensures secure, reliable connections in harsh environments. Its high-temp thermoplastic housing and corrosion-resistant contacts provide long-lasting durability. Ideal for outdoor LED lighting and architecture, enabling easy installation, space-saving design, and secure locking with an audible click. Order now to benefit from a proven solution for demanding environmental conditions.
Get TE Connectivity 928340051 today—built for reliable waterproof connections and durable outdoor power and signal wiring.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 928340051?
You can click on the BUY or RFQ button to purchase 928340051 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 928340051?
You can download the 928340051 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 928340051?
TE CONNECTIVITY
