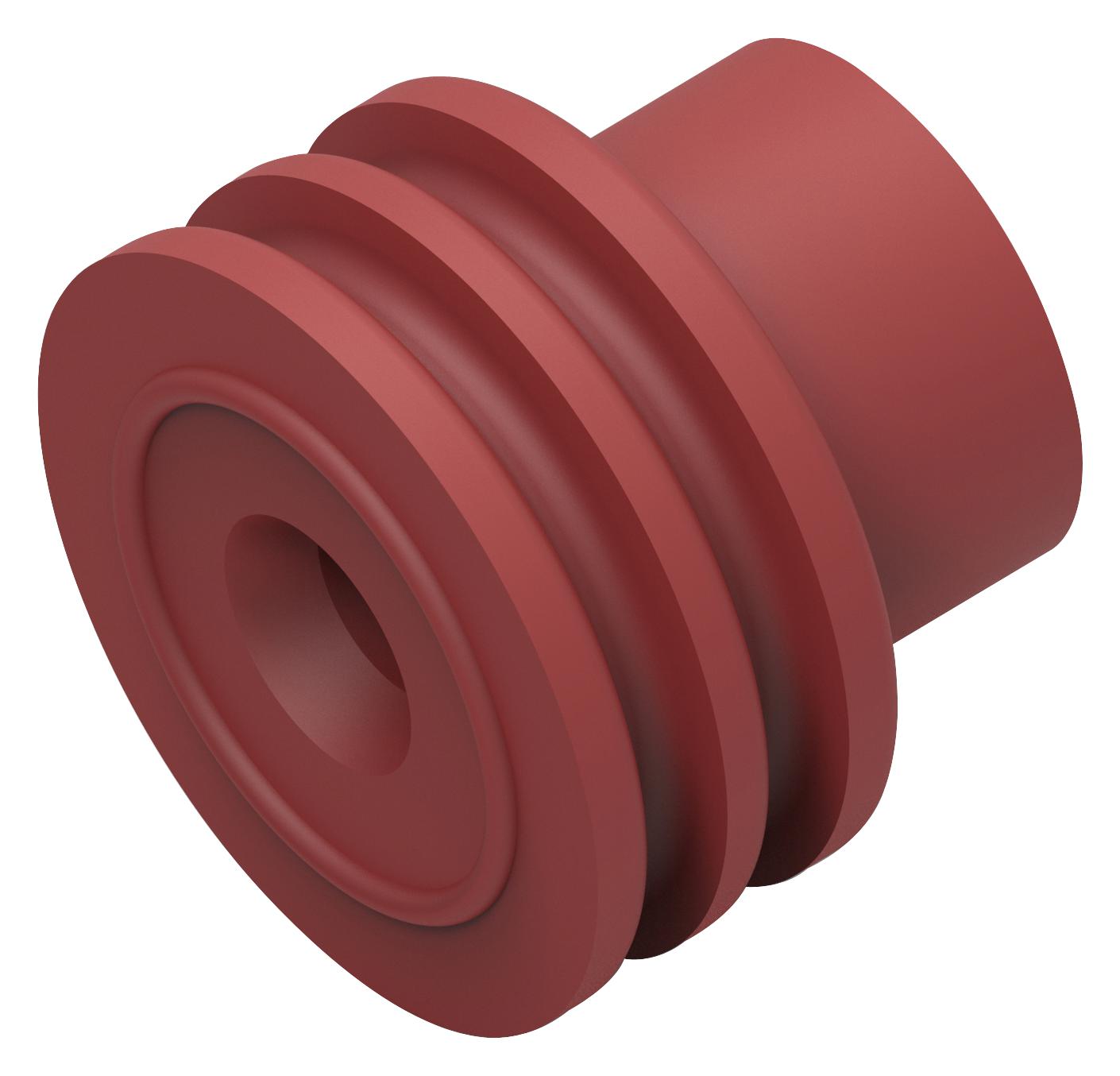

TE CONNECTIVITY 18231111 Single Wire Seal
The TE Connectivity 1823111-1 is a single wire seal within the MQS series, specifically engineered for automotive applications. This seal provides a robust and reliable method for protecting electrical connections from environmental factors. With a cavity diameter of 0.334 inches and an acceptable cable insulation diameter range of 0.118 inches, it ensures a tight and secure fit. Constructed from silicone, it offers resistance to hydrocarbons and operates effectively within a wide temperature range, making it suitable for demanding automotive environments. The seal is RoHS compliant and contributes to the overall reliability and longevity of automotive electrical systems.
TE CONNECTIVITY 18231111 Single Wire Seal Specifications:
- Connector Seal Type: Single Wire Seal (SWS)
- Cavity Diameter: 8.5 mm [ .334 in ]
- Accepts Cable Insulation Diameter Range: 3 mm [ .118 in ]
- Seal Material: Silicone
- Resistance to Hydrocarbons: Poor
- Operating Temperature (Max): 130 °C [266 °F]
- Operating Temperature Range: -40 – 130 °C [-40 – 266 °F]
- UL Flammability Rating: None
- Shore A Hardness: 50
- Contains Lubricant: Yes
- EU RoHS Directive 2011/65/EU: Compliant
- EU ELV Directive 2000/53/EC: Compliant
- China RoHS 2 Directive MIIT Order No 32, 2016: No Restricted Materials Above Threshold
- Halogen Content: Low Halogen - Br, Cl, F, I < 900 ppm per homogenous material
