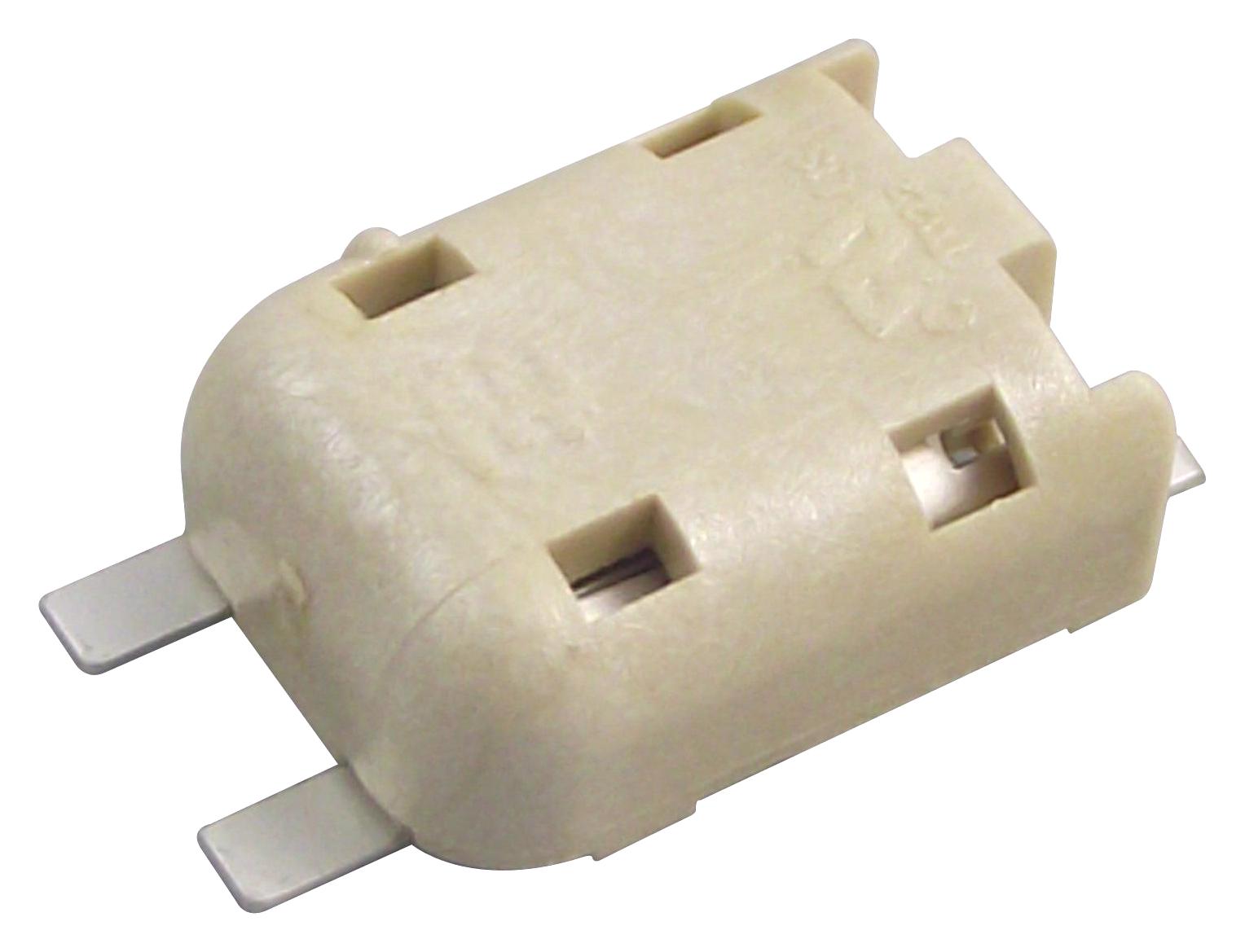

TE CONNECTIVITY 19540971 LED Connector
The 1954097-1 is a low-profile, surface-mount LED lighting connector designed for poke-in wire connections. It features tin over nickel-plated copper alloy contacts and a high-temperature resistant thermoplastic housing rated UL94V-0. The connector has rounded corners to minimize shadowing and a flat top surface optimized for vacuum pickup. Constructed with high-temperature material suitable for reflow soldering, it includes redundant SMT pads to prevent peeling. The connector can be stacked side by side with 4mm center spacing and offers a cost-effective alternative to manual wire soldering on printed circuit boards. It is primarily used in LED lighting applications.
TE CONNECTIVITY 19540971 LED Connector Specifications:
- Housing Material: UL 94V-0 rated thermoplastic high-temperature resistant
- Contact Material: Copper alloy, tin over nickel plating
- Rated Voltage: 250VAC / 5A, 250VDC / 5A
- Operating Temperature: -40°C to +105°C
- Wire Size Compatibility: 18, 20, 22 AWG solid; 18 & 20 AWG pre-bond stranded; 18 AWG stranded (16 strands only)
- Design Features: Rounded corners to minimize shadowing, flat top surface for vacuum pickup
- Stacking Compatibility: Side-by-side with 4mm center spacing
- Application: LED lighting, interconnecting printed circuit LED modules, non-lighting PCB connections
Buy the Tyco Electronics Series LED Connector: 1954097-1
Purchase your Tyco Electronics LED Connector 1954097-1 online now to benefit from high-quality, durable wire-to-board connection solutions. Designed with a low profile and high-temperature thermoplastic housing, this connector ensures secure, reliable contacts with tin over nickel-plated copper alloy surfaces. Ideal for LED lighting applications, it accommodates various wire sizes including 18, 20, and 22 AWG solid or stranded wires. The connector's advanced design minimizes shadowing and supports reflow soldering, offering a cost-effective and efficient solution for compact electronic assemblies. Get yours today and enhance your LED lighting and PCB connections with premium quality.
Order your Tyco Electronics Series LED Connector 1954097-1 today and ensure reliable, high-quality wire connections for your LED lighting projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 19540971?
You can click on the BUY or RFQ button to purchase 19540971 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 19540971?
You can download the 19540971 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 19540971?
TE CONNECTIVITY
