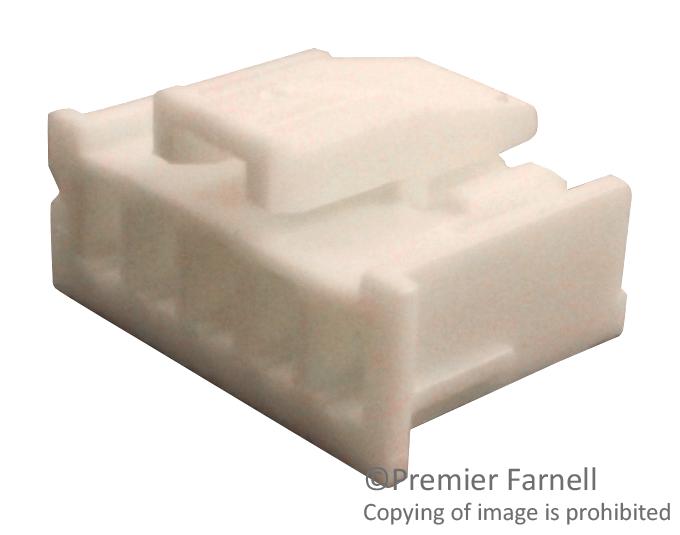

TE CONNECTIVITY 19694425 Connector System
The EP 2.5 series features compact single-row crimp connectors suitable for densely packed circuit boards, offering up to 20 positions with 26-20 AWG wire compatibility, low insertion force terminals, and terminal position assurance with optional TPA retainers. Constructed with UL 94V-0 nylon housings, tin-plated Phos Bronze contacts, and available glow wire materials, these connectors operate reliably within a temperature range of -55 to 105°C. They meet UL and CSA standards, making them ideal for industrial machinery, HVAC, and household appliances requiring secure, vibration-resistant connections.
TE CONNECTIVITY 19694425 Connector System Specifications:
- Pitch: 2.5 mm (0.098 inch)
- Number of positions: 2 to 20
- Wire range: 26 to 20 AWG
- Voltage rating: 250 VAC
- Current rating: 4.5 A
- Operating temperature: -55°C to 105°C
- Housing material: UL 94V-0 nylon
- Contact material: Tin-plated Phos Bronze
- Housing lock: Yes
- Polarization tabs: Yes
- Glow wire alternative: Available
- Standards: UL recognized, CSA Certified
- Application: Control boards, household appliances, HVAC
- Design features: Low insertion force terminals, anti-fretting lubricant, optional glow wire
Buy the TE Connectivity Series EP 2.5 Connector: 19694425
Purchase the TE Connectivity EP 2.5 connector system online today and benefit from its compact design, high-density wiring capability, and reliable UL and CSA certification. Whether you need up to 20 positions for control boards or household appliances, this system offers low insertion force terminals, security features like latch locks and optional TPA retainers, and operates within a temperature range of -55°C to 105°C. Order now for fast delivery and enhance your project's connection reliability with this versatile, industry-approved connector series.
Buy TE Connectivity EP 2.5 connector now and experience unmatched reliability and performance in dense circuit board connections with secure latch features.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 19694425?
You can click on the BUY or RFQ button to purchase 19694425 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 19694425?
You can download the 19694425 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 19694425?
TE CONNECTIVITY
