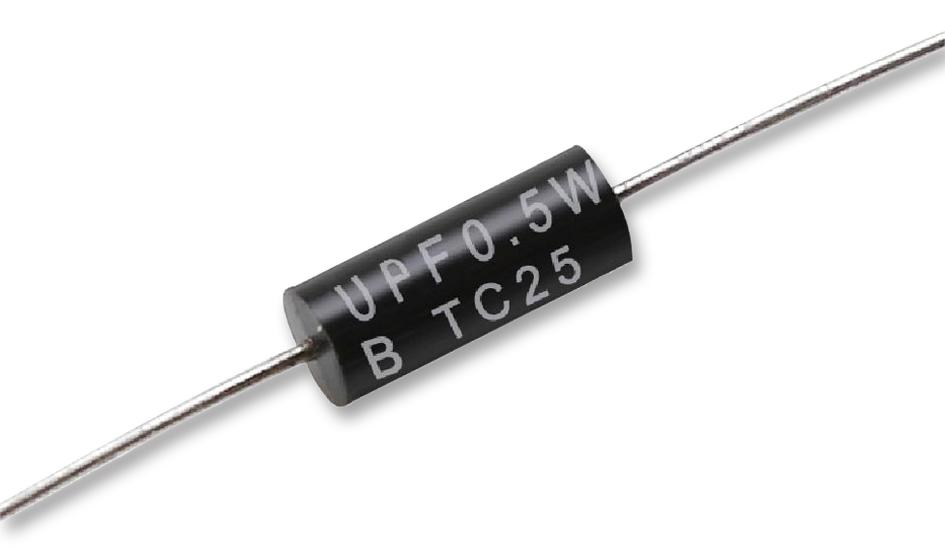

TE CONNECTIVITY UPF50B10KV High Precision Metal Film Resistor
The UPF Series high precision metal film leaded resistor offers extremely tight tolerances down to +0.02% and very low TCR of +5PPM/C, ensuring excellent stability for precision measurement and equipment applications. Constructed with ceramic core (alumina ceramic), nickel alloy resistor element, and tinned annealed copper wire lead, it provides reliable performance under various environmental conditions. Available in different power ratings, it meets strict industry standards for durability, overload, and heat resistance, making it ideal for high-accuracy electronic and measurement systems.
TE CONNECTIVITY UPF50B10KV High Precision Metal Film Resistor Specifications:
- Power Ratings: 1/4W at 250V, 1/2W at 300V, 0.5W at 500V
- Resistance Range: 10Ω to 500KΩ
- Temperature Coefficient of Resistance: ±5PPM/°C
- Temperature Range: -55°C to +125°C
- Insulation Resistance: > 1,000MΩ at 800V for 1 minute
- Solderability: 95% minimum coverage according to MIL-STD-202F Method 208H
- Resistance to Soldering Heat: ±0.05%+0.010 at 350°C for 3 seconds
- Terminal Strength: Tensile force of 22.5kg for 10 seconds, torsional strength through 360° rotations
- Pulse Overload: 4 times RCWV for 10,000 cycles, 1 sec ON, 25 sec OFF
- Resistance to Temperature Cycling: -25°C to +85°C, 5 cycles
- Environmental: Damp heat with load, resistance to solvents, storage at -55°C to +125°C, humidity <80% RH
Buy the TE Series UPF High Precision Metal Film Resistor: UPF50B10KV
Purchase the TE UPF50B10KV high precision metal film resistor online today and ensure your electronic projects and measurement systems benefit from exceptional accuracy, stability, and durability. With tight tolerances of ±0.02% and a low TCR of +5PPM/°C, this resistor guarantees consistent performance under demanding conditions. Its ceramic core construction, high insulation resistance, and compliance with industry standards make it the ideal choice for precision equipment, measurement devices, and high-reliability applications. Secure your stock now and enjoy fast delivery, technical support, and trusted quality from TE.
Buy TE high precision metal film resistor UPF50B10KV now and experience unmatched reliability and performance for your measurement and control applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY UPF50B10KV?
You can click on the BUY or RFQ button to purchase UPF50B10KV from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part UPF50B10KV?
You can download the UPF50B10KV datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of UPF50B10KV?
TE CONNECTIVITY
