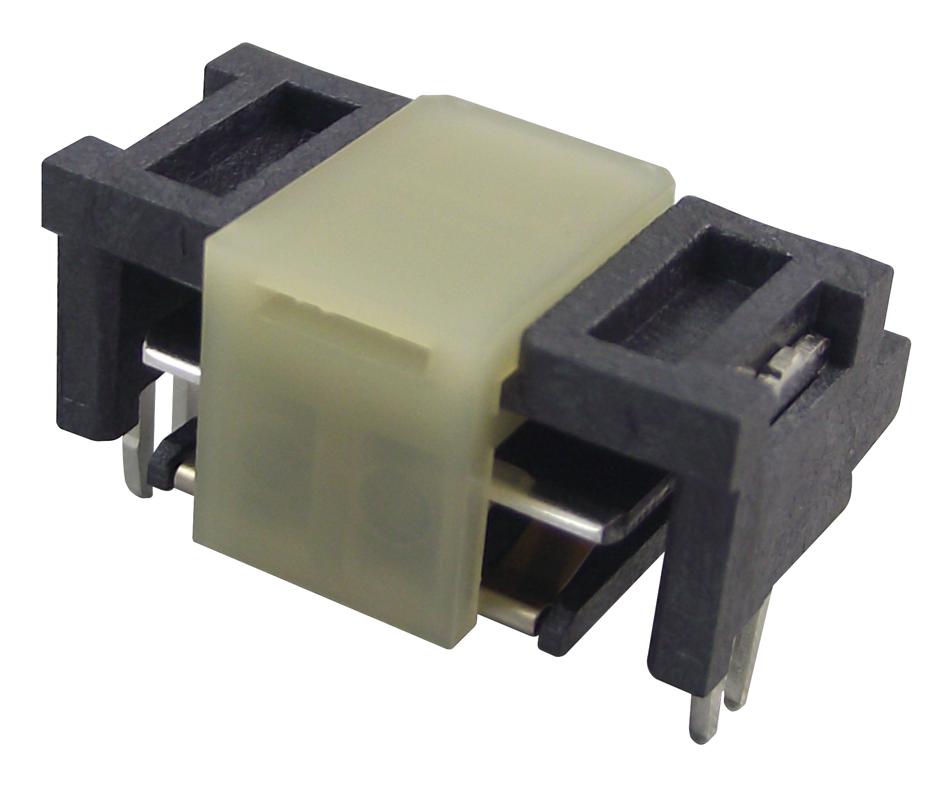

TE CONNECTIVITY 19822951 Mini Power Interconnect
TE Connectivity's ELCON Mini Power Interconnects are designed for applications requiring high power in a small space. These interconnects boast a low profile (8mm height) and support up to 40 Amps per contact and 400 Volts AC or DC. Key features include positive metal latch retention, optional coding contacts for sense/detect functionality, and a broad portfolio of configurations including press fit and solder tail options. They are ideal for servers, power supplies, industrial equipment, and data centers where space is at a premium and reliable power delivery is critical.
TE CONNECTIVITY 19822951 Mini Power Interconnect Specifications:
- Up to Current: 40A per contact
- Voltage Rating: 400V AC or DC
- Contact Resistance: 0.3 milliohms max
- Metal Latch Retention: supporting pull forces up to 100N
- Durability: 50 mating cycles
- Board Connector Material: LCP glass filled, color black, UL 94V-0
- Power Contact Material: Copper Alloy, silver plated
- Coding Contact Material: Copper Alloy, selective gold plated
- Operating Temperature Range: -40°C to 130°C
- Product Specification: 108-19346 (2-position), 108-128027 (3-position), 108-19429 (4-position)
- Application Specification: 114-19110 (2-position), 114-129029 (3-position), 114-32039 (4-position)
Buy the 1982295-1 TE CONNECTIVITY Mini Power Interconnect | myMectronic
Purchase the TE Connectivity 1982295-1 Mini Power Interconnect securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 19822951?
You can click on the BUY or RFQ button to purchase 19822951 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 19822951?
You can download the 19822951 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 19822951?
TE CONNECTIVITY
