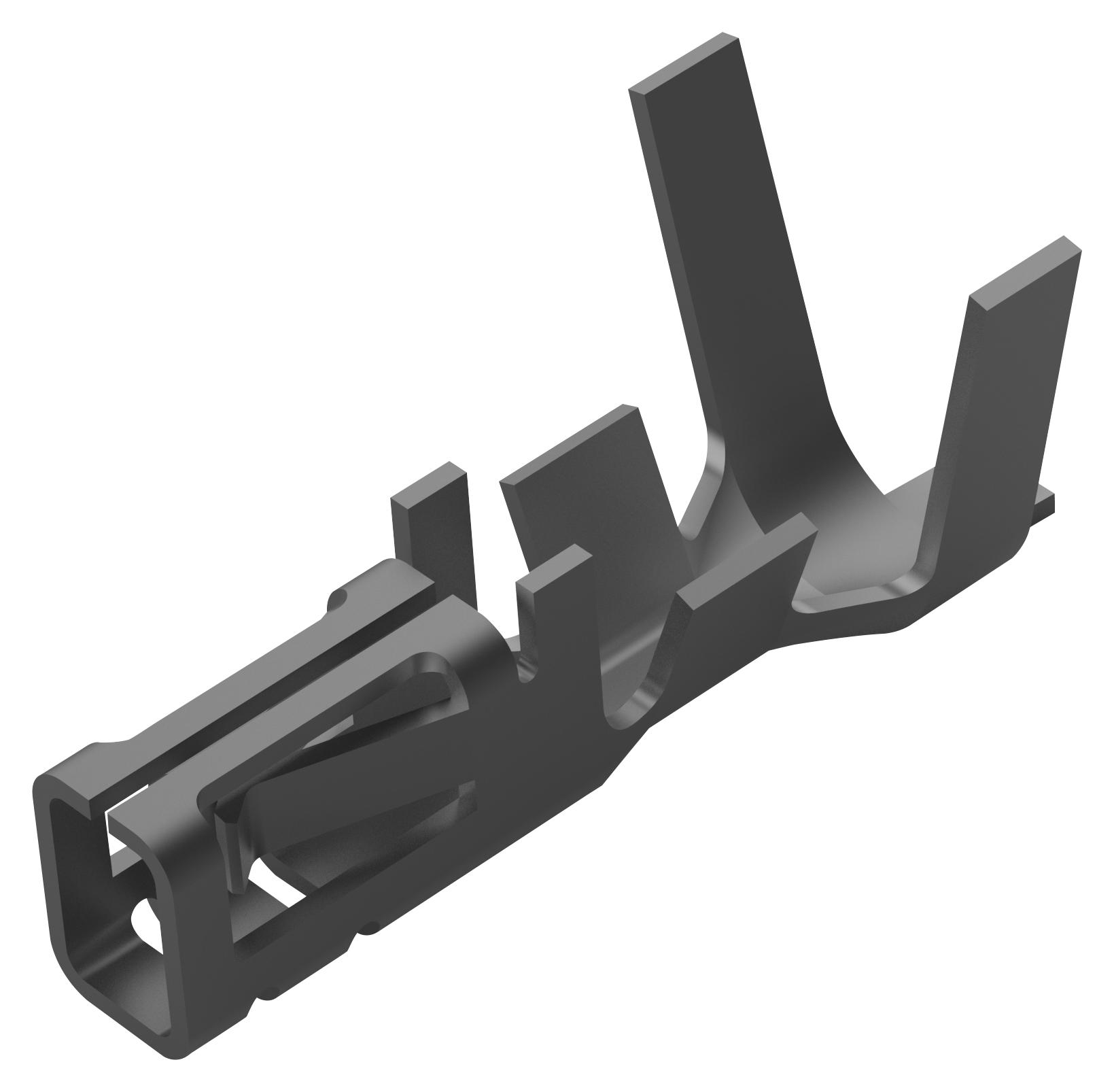

TE CONNECTIVITY 19837801 Inertia Locking Connector
The TE Connectivity Grace Inertia Connector series offers a robust and reliable solution for wire-to-wire connections. Its inertia locking mechanism ensures a secure connection and prevents mismating, making it ideal for applications where vibration or accidental disconnection is a concern. Commonly used in household appliances like washing machines and vending machines, these connectors contribute to increased product reliability and ease of assembly. The option for a urethane coating on the PCB board further enhances its suitability for demanding environments. The dual beam contact design provides good contact and durability, while the ergonomic design allows for easy manual removal.
TE CONNECTIVITY 19837801 Inertia Locking Connector Specifications:
- Voltage Rating: 250V AC/DC
- Current Rating: 4A Max
- Position: 4, 6, 8, 10, 12P (Double Row)
- Pitch: 3.3mm
- Wire Gauge: #20 - #24 AWG
- Wire Insulator Range: 1.5 - 2.5mm
- Housing & TPA Material: UL94-V0 rated nylon
- Contact Material: Tin-plated Copper Alloy
- Housing Colors: Natural, Blue, Red, Yellow (Black for TPA)
- Height from PCB to Contact: 8mm
- Compliance: Glow wire per IEC 60335-1
- Tooling Applicator: 2088571-2, 1552510-2
- cURus: E321453
