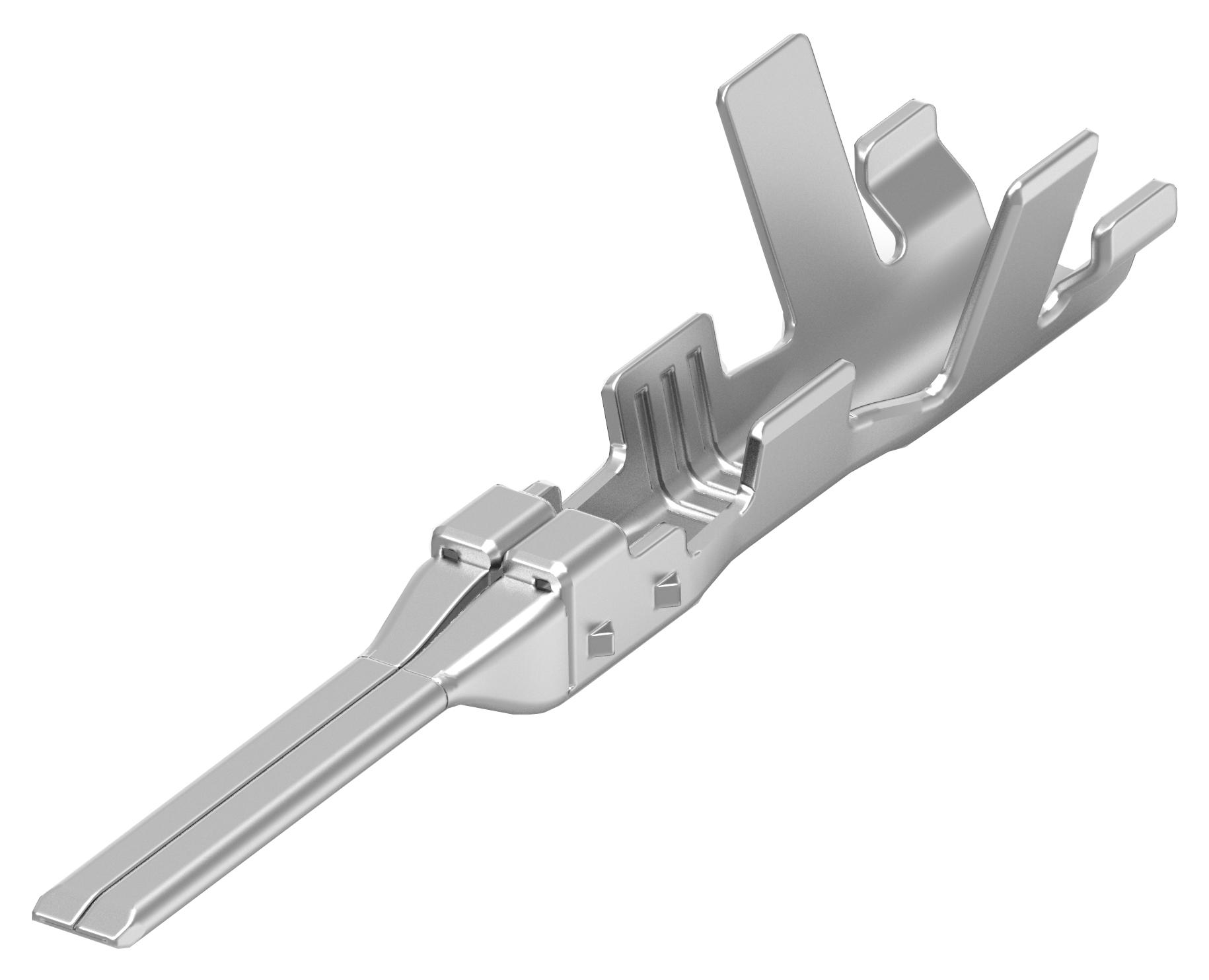

TE CONNECTIVITY 23299061 Power Contact
The TE Connectivity 2329906-1 Power Versa-Lock 5.0 contact is a robust solution for power distribution in various industrial applications. Designed for wire-to-wire connections, this contact offers a secure and reliable connection with a pre-tin plating for enhanced solderability. It supports wire sizes ranging from 20 to 18 AWG and is rated for an operating voltage of 600 VAC/VDC, making it suitable for demanding power applications. The contact's design incorporates features like blindmate capability and panel mount options, simplifying integration into diverse systems.
TE CONNECTIVITY 23299061 Power Contact Specifications:
- Power Contact Type: Contact
- Connector System: Wire-to-Wire
- Sealable: No
- Connector & Contact Terminates To: Wire & Cable
- Continuous Current Rating: 8 A
- Operating Voltage: 600 VDC
- Contact Mating Area Plating Material: Pre-Tin
- Contact Current Rating (Max): 8 A
- Contact Type: Tab
- Contact Retention Within Housing: Without
- Mating Tab Width: 1.5 mm
- Mating Tab Thickness: .5 mm
- Contact Base Material: Brass
- Wire Contact Termination Area Plating Material: Pre-Tin
- Wire Contact Termination Area Plating Material Finish: Matte
- Contact Orientation: Straight
- Termination Method to Wire & Cable: Crimp
- Carrier Strip Mount Orientation: Side Feed
- Connector Mounting Type: Panel Mount
- Wire Insulation Support: With
- Mating Alignment Type: Blindmate
- Wire Size: .5 – .8 mm²
- Accepts Wire Insulation Diameter Range: 1.6 – 2.3 mm, 1.7 – 2.7 mm
- Operating Temperature Range: -30 – 105 °C
- Circuit Application: Power
- Packaging Method: Reel
- Wire/Cable Type: Discrete Wire
- Wire Type: Stranded
- For Use With: Cap Housing
Buy the 2329906-1 TE CONNECTIVITY Power Contact | myMectronic
Purchase the TE Connectivity 2329906-1 Power Contact securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23299061?
You can click on the BUY or RFQ button to purchase 23299061 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23299061?
You can download the 23299061 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23299061?
TE CONNECTIVITY
