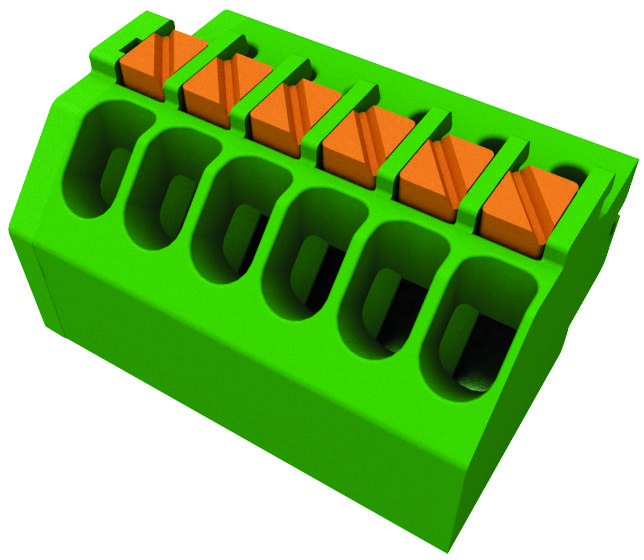

TE CONNECTIVITY 19867162 Spring Type Flush Mount Plug
The TE Connectivity 1986716-2 Spring Type Flush Mount Plug offers a convenient solution for wire insertion in signal applications, eliminating the need for specialized tools. Its compact design, male insertion capability from both directions, and fast wire connections contribute to efficient installation. Available in various positions (2-8), this plug, along with its mating unshrouded header, provides a customizable and reliable connection for automation, drives technology, signal controls, and control boxes for HVAC and thermostats. Constructed with lead-free tin plated steel clamping springs, 94V0 rated Polyamide housing, and tin plated copper alloy pin terminals, it ensures robust performance and meets UL 1059 standards.
TE CONNECTIVITY 19867162 Spring Type Flush Mount Plug Specifications:
- insertion_force_per_pole: 2.5N
- withdrawal_force_per_pole: 4.5N min
- stripping_length: 8.5-10mm
- operating_temperature_range: -40˚C to +110˚C
- wire_range: 20-16 solid and stranded
- voltage_current_rating: 150V, 2A per UL
- ul_file: E60677
- clamping_spring_material: lead-free tin plated steel
- housing_material: 94V0 rated Polyamide
- pin_terminals_material: tin plated copper alloy
- height_plug: 12.5 mm
- width_plug: 17 mm
- height_standard_header: 12.5 mm
- width_standard_header: 2.8 mm
- height_wide_base_header: 16.5 mm
- width_wide_base_header: 8 mm
Buy the 1986716-2 TE CONNECTIVITY Spring Type Flush Mount Plug | myMectronic
Purchase the TE Connectivity 1986716-2 Spring Type Flush Mount Plug securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 19867162?
You can click on the BUY or RFQ button to purchase 19867162 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 19867162?
You can download the 19867162 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 19867162?
TE CONNECTIVITY
