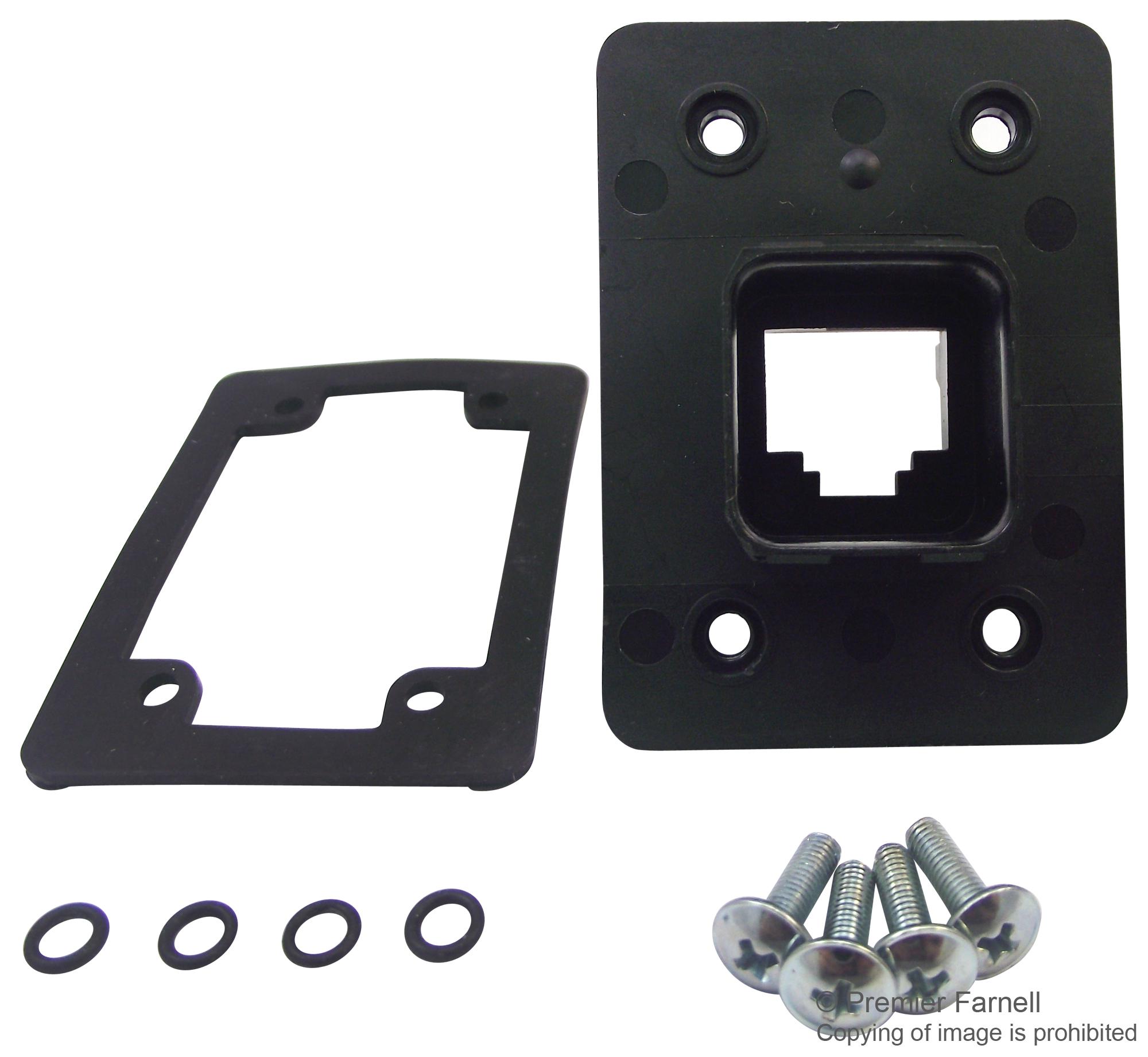

TE CONNECTIVITY 19873071 Push-Pull RJ45 Connector
The TE Connectivity 1987307-1 is an IP65/67 rated field installation RJ45 push-pull connector, ideal for applications requiring a secure and reliable connection in harsh conditions. Its robust termination technology allows for flexible field installation without special tools. The comfortable push-pull mechanism ensures a secure, sealed interconnection, withstanding severe shocks and vibrations. Suitable for factory automation, decentralized applications, and train communication systems, this connector provides reliable performance and is compliant with IEC 61076-3-106 and IEC61076-3-117 standards. It is designed for use with Cat 5e cabling and features a UV-resistant housing.
TE CONNECTIVITY 19873071 Push-Pull RJ45 Connector Specifications:
- Meets: TIA/EIA 568 Category 5e requirements
- Locking: Positive lock push pull coupling
- Temperature Range: -40°C to +70°C [-40F to 158F]
- Mating Cycles: 750 cycles
- Mechanism: Comfortable Push-Pull mechanism
- Standards: IEC 61076-3-106 Variant 14, IEC61076-3-117
- IP Rating: IP67
- Material (Frame Kit): UL conform
- Material (Housing): UL conform
- Material (Pass Through Modular Jack): UL in progress
- Material (Gasket, Seal): UL conform
