TE CONNECTIVITY SM9333BCES125002 Low Pressure Sensor
The SM9333 series is an ultra-low pressure digital sensor designed for precise measurements in applications such as HVAC, medical devices, and pneumatic systems. It features fully calibrated and temperature-compensated pressure outputs with a total error band of less than 1%FS after autozero. The sensor supports differential pressure measurement up to 125 Pa with high resolution, broadcast over a digital interface, and operates within a temperature range of -20 to 85°C. Its compact SOIC-16 package simplifies integration into high-accuracy, low-pressure measurement systems.
TE CONNECTIVITY SM9333BCES125002 Low Pressure Sensor Specifications:
- Pressure Range: -125 Pa to +125 Pa
- Supply Voltage: 3.3 V
- Output: 16-bit digital signal
- Total Error Band: <1%FS after autozero
- Temperature Range: -20 to 85°C
- Response Rate: 2000 Hz
- Bandwidth: 20 Hz

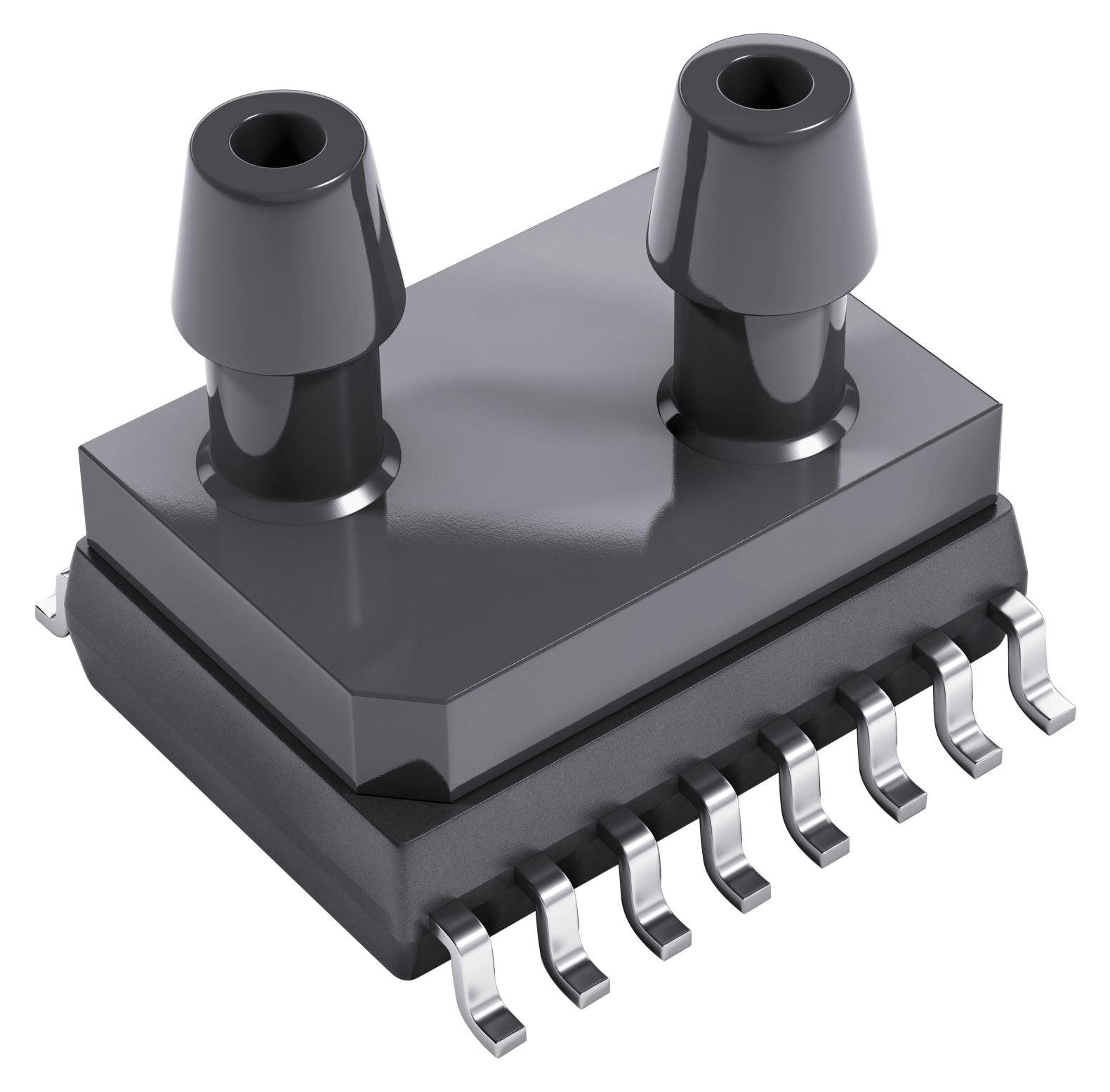

- Package: SOIC-16 Dual Vertical Porting
- Wetted Materials: Silicon, Glass, RTV (Silicone), Gold, Aluminum, Copper, Epoxy
- Built-in calibration and temperature compensation
- Power Consumption: Typical at 3.3 V approx. 3.8 mA
- Operating Humidity: Compatible with dry, clean air
Buy the Buy TE Connectivity Ultra-Low Pressure Digital Sensor Part Number SM9333BCES125002 Online
Order the TE Connectivity low pressure sensor online today to benefit from precise, temperature-compensated pressure measurement with less than 1%FS error. This sensor supports differential pressure up to 125 Pa, ideal for HVAC, medical equipment, and pneumatic systems. Its compact SOIC-16 package ensures easy integration, providing digital signals over a 16-bit interface with high-speed response at 2000 Hz. Enjoy fast delivery and reliable performance, making it the perfect choice for critical low-pressure monitoring in industrial and medical applications.
Buy TE Connectivity SM9333BCES125002 now and experience unmatched reliability and precision in low-pressure measurement applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SM9333BCES125002?
You can click on the BUY or RFQ button to purchase SM9333BCES125002 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SM9333BCES125002?
You can download the SM9333BCES125002 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SM9333BCES125002?
TE CONNECTIVITY
