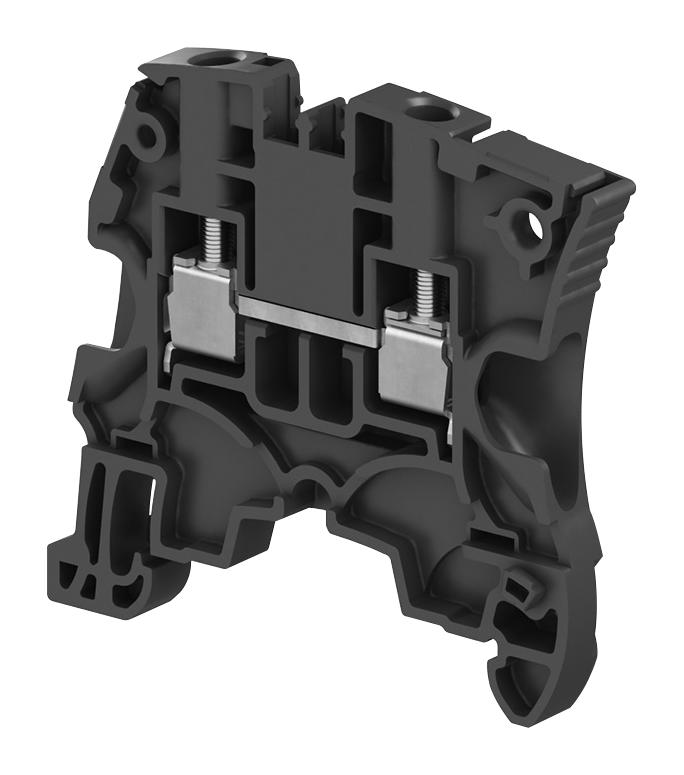

TE CONNECTIVITY 1SNK505066R0000 Feed-through Terminal Block
The TE Connectivity ZS4-BK screw clamp terminal block provides a reliable and efficient connection solution for various industrial applications. Its compact design allows for space-saving installations, while its robust construction ensures durability and safety. Rated for 1000 V AC/DC IEC, this terminal block is particularly well-suited for solar applications and other high-voltage environments. The ZS4-BK supports a wide range of conductor sizes and configurations, making it a versatile choice for diverse wiring needs. It is mounted on standard TH35 DIN rails, simplifying integration into existing systems.
TE CONNECTIVITY 1SNK505066R0000 Feed-through Terminal Block Specifications:
- Extended Product Type: ZS4-BK
- Product ID: 1SNK505066R0000
- EAN: 3472595050666
- Catalog Description: ZS4-BK Screw Clamp Terminal Block - Feed-through - Black
- Minimum Order Quantity: 50 piece
- Customs Tariff Number: 85369010
- Color: Black
- Product Net Height: 53 mm
- Product Net Length: 47.3 mm
- Product Net Depth: 47.3 mm
- Product Net Weight: 8.8 g
- Product Net Width: 5.2 mm
- Spacing: 5.2 mm
- Connection Type: Screw clamp
- Function: Feed-through
- Number of Levels: 1
- Connecting Capacity Main Circuit: Screw Clamp / Flexible 1x 0.22 ... 4 mm² Screw Clamp / Flexible 2x 0.2 ... 1.5 mm² Screw Clamp / Rigid 1x 0.2 ... 4 mm² Screw Clamp / Rigid 2x 0.2 ... 1.5 mm² Screw Clamp / With Insulated Ferrrule 1x 0.22 ... 2.5 mm² Screw Clamp / Without Insulated Ferrule 1x 0.22 ... 4 mm² Screw Clamp / With Twin Ferrule 2x 0.22 ... 1.5 mm²
- Gauge Type: A3-B3
- Rated Current (In) Main Circuit: 32 A
- Rated Short-time Withstand Current (Icw): 480 A
- Rated Voltage (Ur): 1000 V
- Rated Impulse Withstand Voltage (Uimp): 8000 V
- Dielectric Test Voltage: 2200 V
- Pollution Degree: 3
- Power Loss: 1 W
- Degree of Protection: IP20
- Insulation Material: Polyamide
- Mounting on DIN Rail: TH35-7.5 / TH35-15
- Wire Stripping Length: 10.5 mm
- Recommended Screw Driver: 3.5 mm
- Rated Cross-Section: 4 mm²
- Connecting Capacity UL/CSA: Screw Clamp / Flexible 1x 24 ... 12 AWG Screw Clamp / Flexible 2x 24 ... 16 AWG Screw Clamp / Rigid 1x 24 ... 12 AWG Screw Clamp / Rigid 2x 24 ... 16 AWG Screw Clamp / With Insulated Ferrrule 1x 24 ... 14 AWG Screw Clamp / Without Insulated Ferrule 1x 24 ... 12 AWG Screw Clamp / With Twin Ferrule 2x 24 ... 16 AWG
- Flammability According to UL94: V0
- Resistance to Vibrations acc. to IEC 60068-2-6: Compliant
- RoHS Status: Following EU Directive 2002/95/EC
- Ambient Air Temperature Operation: -55 ... +110 °C
- Ambient Air Temperature Storage: -55 ... +110 °C
- E-nummer: 2925909
- ETIM 4: EC000897 - Feed-through terminal block
- ETIM 5: EC000897 - Feed-through terminal block
- ETIM 6: EC000897 - Feed-through terminal block
- Object Classification Code: X
- Package Level 1 Width: 54 mm
- Package Level 1 Length: 252 mm
- Package Level 1 Height: 52 mm
- Package Level 1 Gross Weight: 0.44 kg
- Package Level 1 EAN: 3472595050666
- Package Level 2 Units: 900 piece
- Package Level 2 Width: 300 mm
- Package Level 2 Length: 400 mm
- Package Level 2 Height: 200 mm
- Package Level 2 Gross Weight: 8.420 kg
- Package Level 3 Units: 43200 piece
- Product Packing Type: Box
- Package Level 1 Units: 50piece
