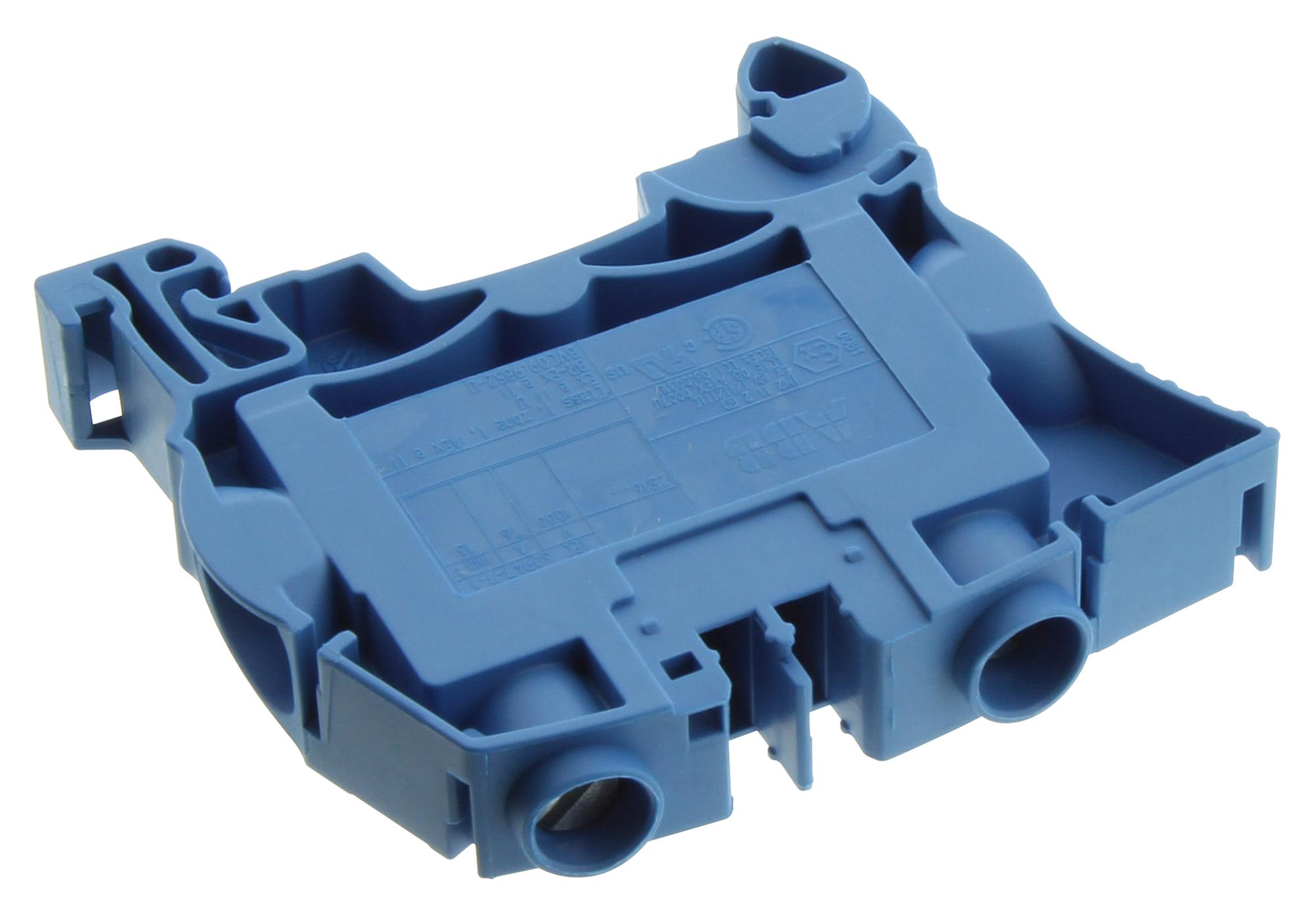

TE CONNECTIVITY 1SNK510020R0000 Feed-through Terminal Block
The TE Connectivity ZS16-BL screw clamp terminal block provides a reliable connection solution for various industrial applications. Its compact design allows for space-saving installations, particularly beneficial in solar power systems where high voltage ratings are essential. The block supports a wide range of conductor sizes and offers robust performance with a rated current of 76A and an impulse withstand voltage of 8000V. It is mounted on standard DIN rails and is certified to meet various international standards, ensuring safety and compliance in diverse environments.
TE CONNECTIVITY 1SNK510020R0000 Feed-through Terminal Block Specifications:
- Extended Product Type: ZS16-BL
- Product ID: 1SNK510020R0000
- EAN: 3472595100200
- Catalog Description: ZS16-BL Screw Clamp Terminal Block - Feed-through - Blue
- Minimum Order Quantity: 25 piece
- Customs Tariff Number: 85369010
- Color: Blue
- Product Net Height: 56.1 mm
- Product Net Length: 48.8 mm
- Product Net Depth: 48.8 mm
- Product Net Weight: 20.2 g
- Product Net Width: 10 mm
- Spacing: 10 mm
- Connection Type: Screw clamp
- Function: Feed-through
- Number of Levels: 1
- Connecting Capacity Main Circuit: Screw Clamp / Flexible 1x 0.5 ... 16 mm² Screw Clamp / Flexible 2x 0.5 ... 6 mm² Screw Clamp / Rigid 1x 0.5 ... 16 mm² Screw Clamp / Rigid 2x 0.5 ... 6 mm² Screw Clamp / With Insulated Ferrule 1x 0.5 ... 10 mm² Screw Clamp / Without Insulated Ferrule 1x 0.5 ... 16 mm² Screw Clamp / With Twin Ferrule 2x 0.5 ... 6 mm²
- Gauge Type: A6-B6
- Rated Current (In) Main Circuit: 76 A
- Rated Short-time Withstand Current (Icw): 1920 A
- Rated Voltage (Ur): 1000 V
- Rated Impulse Withstand Voltage (Uimp): 8000 V
- Dielectric Test Voltage: 2200 V
- Pollution Degree: 3
- Power Loss: 2.4 W
- Degree of Protection: IP20
- Insulation Material: Polyamide
- Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm) / TH35-15 (35 x 15 mm)
- Wire Stripping Length: 13.5 mm
- Recommended Screw Driver: 5.5 mm
- Rated Cross-Section: 16 mm²
- Connecting Capacity UL/CSA: Screw Clamp / Flexible 1x 24 ... 4 AWG Screw Clamp / Flexible 2x 20 ... 10 AWG Screw Clamp / Rigid 1x 24 ... 4 AWG Screw Clamp / Rigid 2x 20 ... 10 AWG Screw Clamp / With Insulated Ferrule 1x 24 ... 8 AWG Screw Clamp / Without Insulated Ferrule 1x 24 ... 4 AWG Screw Clamp / With Twin Ferrule 2x 20 ... 10 AWG
- Flammability According to UL94: V0
- Resistance to Vibrations acc. to IEC 60068-2-6: Compliant
- Ambient Air Temperature Operation: -55 ... +110 °C
- Ambient Air Temperature Storage: -55 ... +110 °C
- E-nummer: 2925975
- ETIM 4: EC000897 - Feed-through terminal block
- ETIM 5: EC000897 - Feed-through terminal block
- ETIM 6: EC000897 - Feed-through terminal block
- Object Classification Code: X
- Package Level 1 Width: 52 mm
- Package Level 1 Length: 259 mm
- Package Level 1 Height: 50 mm
- Package Level 1 Gross Weight: 0.505 kg
- Package Level 1 EAN: 3472595100200
- Package Level 2 Units: 450 piece
- Package Level 2 Width: 300 mm
- Package Level 2 Length: 400 mm
- Package Level 2 Height: 200 mm
- Package Level 2 Gross Weight: 9.680 kg
- Package Level 3 Units: 21600 piece
- Product Packing Type: Box
- Package Level 1 Units: 25piece
