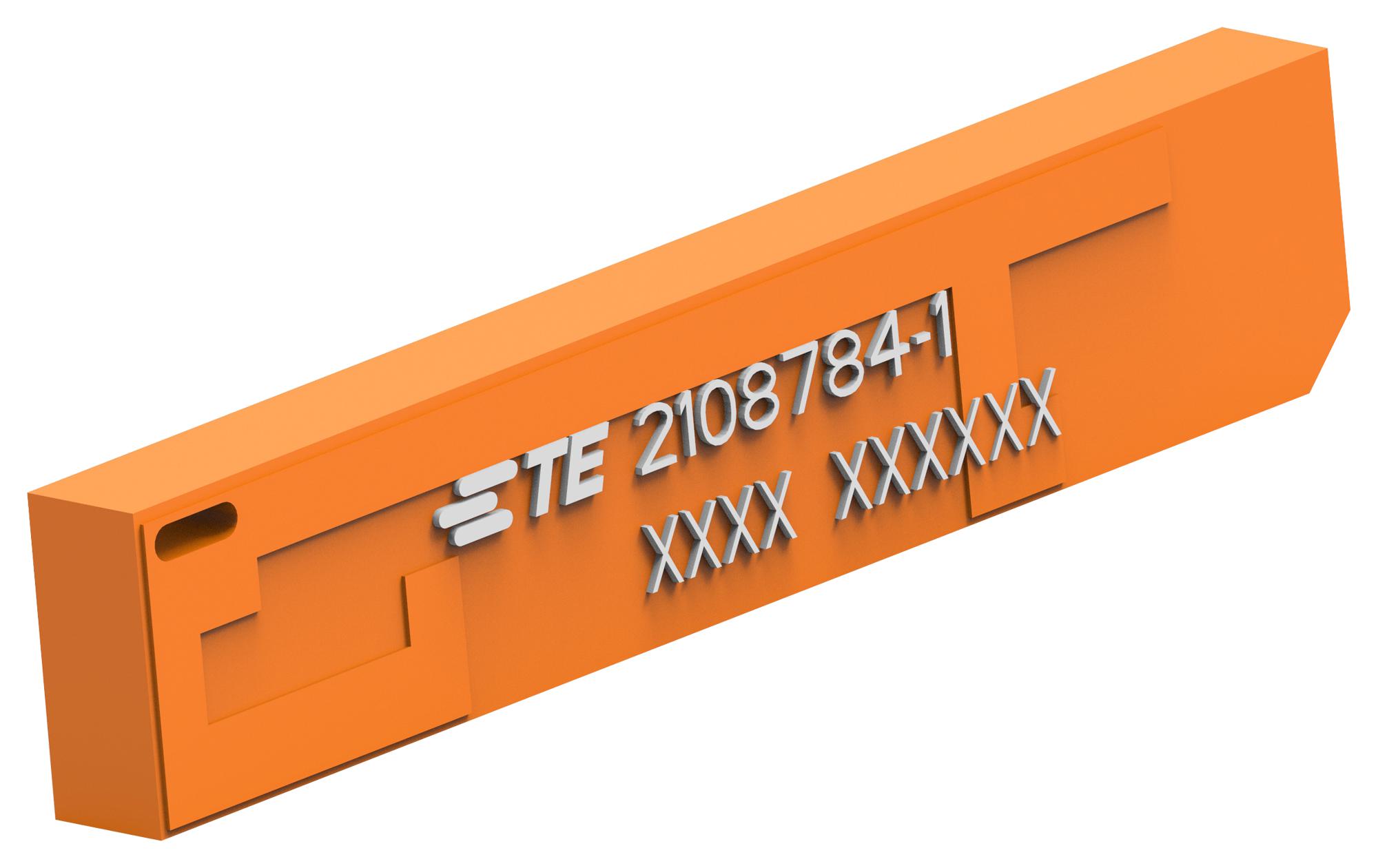

TE CONNECTIVITY 21087841 CDMA/GSM/LTE PCB Antenna
The TE Connectivity 2108784-1 is a versatile PCB antenna engineered for a wide range of wireless communication applications, including CDMA, GSM, and LTE. Its surface mount (SMT) design simplifies integration into printed circuit boards, while its wideband frequency range ensures compatibility with various global wireless standards. This antenna is ideal for use in mobile devices, IoT devices, and other wireless equipment requiring reliable connectivity. It boasts a compact form factor with dimensions of 38mm x 7.5mm x 3.175mm and a low profile, minimizing impact on device design. The antenna is RoHS compliant and designed for global operation, offering a robust and efficient solution for wireless communication needs.
TE CONNECTIVITY 21087841 CDMA/GSM/LTE PCB Antenna Specifications:
- Antenna Connection Type: Surface Mount (SMT)
- Configuration Features: Wideband
- Antenna Protocol: LTE World Band
- Number of Ports: 1
- Antenna Style: Embedded
- Antenna Type: PCB
- VSWR (Max): <3:1
- Impedance: 50 Ω
- Frequency Band: 1575 – 1614 MHz, 1710 – 2690 MHz, 3300 – 3800 MHz, 4900 – 6000 MHz, 698 – 960 MHz
- Gain (Max): .98 dB, 1.93 dB, 2.3 dB, 3 dB, 4 dB
- Product Weight: 1.5 g
- Region: Global
- Polarization: Linear
- Mounts To: Printed Circuit Board
- Product Length: 38 mm
- Product Width: 7.5 mm
- Product Height: 3.175 mm
- Application by Region: GSM - Americas, GSM - EU, LTE All Band
- Wireless Standard: LTE, UMTS, US Dual, EU Triband & WCDMA
- Wireless Application: CDMA 1900, CDMA 850, GSM 1800, GSM 1900, GSM 800, GSM 850, GSM 900, LTE, LTE-HB 2600, LTE-LB 700
- Packaging Method: Bag & Box
- Precision Level: Standard
- EU RoHS Directive 2011/65/EU: Compliant
- EU ELV Directive 2000/53/EC: Compliant
- China RoHS 2 Directive MIIT Order No 32, 2016: No Restricted Materials Above Threshold
- REACH SVHC: Does not contain REACH SVHC
- Halogen Content: Low Bromine/Chlorine < 900 ppm
