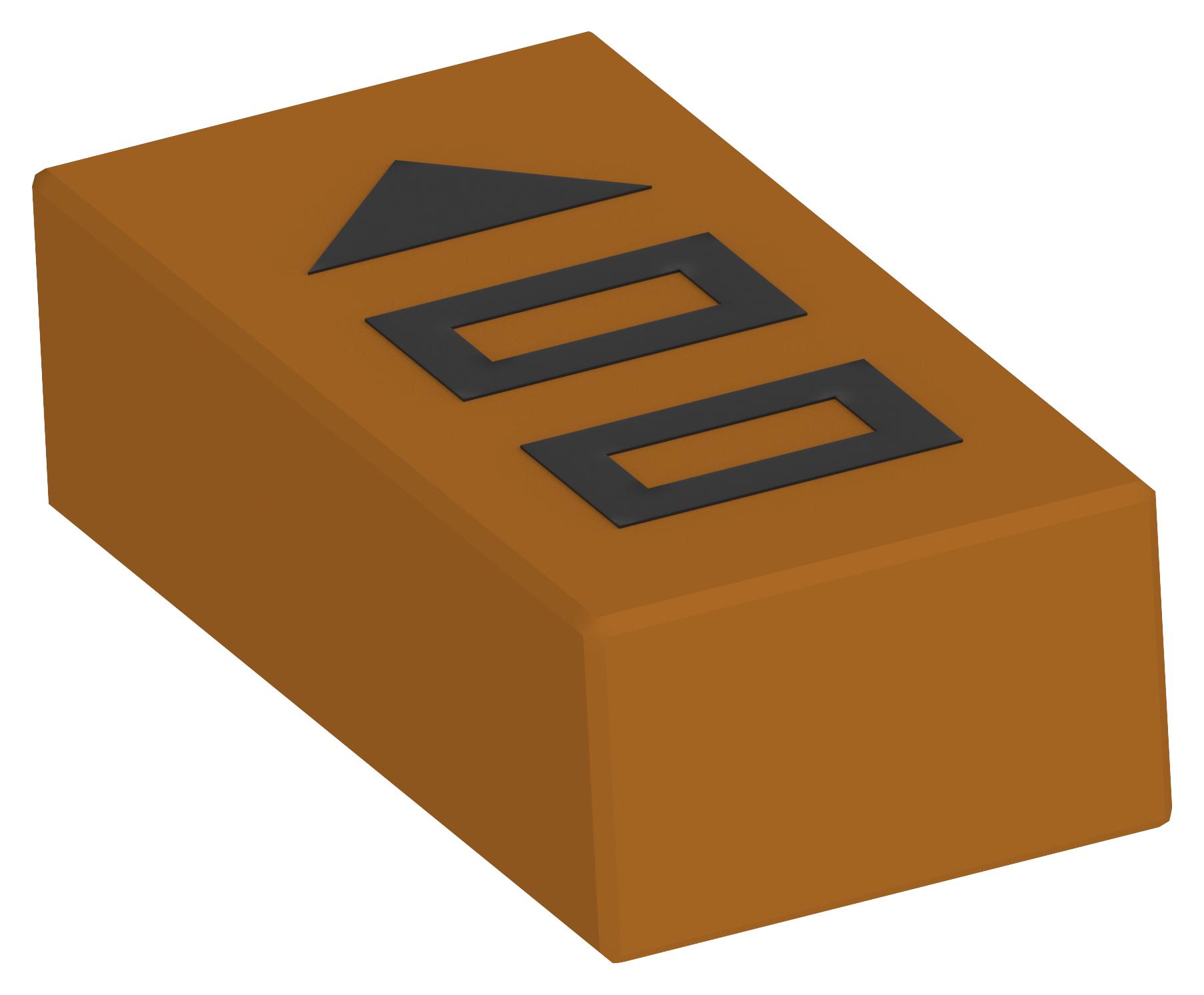

TE CONNECTIVITY 21088511 UWB Embedded Chip Antenna
The TE Connectivity 2108851-1 is a compact embedded chip antenna designed for Ultra-Wideband (UWB) applications operating between 6000 and 8100 MHz. This antenna offers a balance of size, performance, and ease of integration. It's ideal for applications requiring a small form factor and reliable wireless connectivity, such as positioning systems, secure access, and high-bandwidth data transfer. The antenna is surface mountable and available in tape and reel for automated assembly processes. Refer to the mounting guide for proper PCB layout and ground plane considerations to ensure optimal performance.
TE CONNECTIVITY 21088511 UWB Embedded Chip Antenna Specifications:
- Frequency Range: 6000-7000 MHz / 7000-8100 MHz
- VSWR: < 1.8:1 / < 1.9:1
- Average Efficiency: 78% / 71%
- Peak Gain: 2.8 dBi / 5.0 dBi
- Average Gain: -1.1dBi / -1.5dBi
- Feed Point Impedance: 50 ohms
- Polarization: Linear
- Size: 4.0 mm x 2.0 mm x 1.2 mm
- Weight: < 0.04 g
- Mounting: Surface mount
- Operating Temperature: -40 to +85°C
- Storage Temperature: -40 to +85°C
