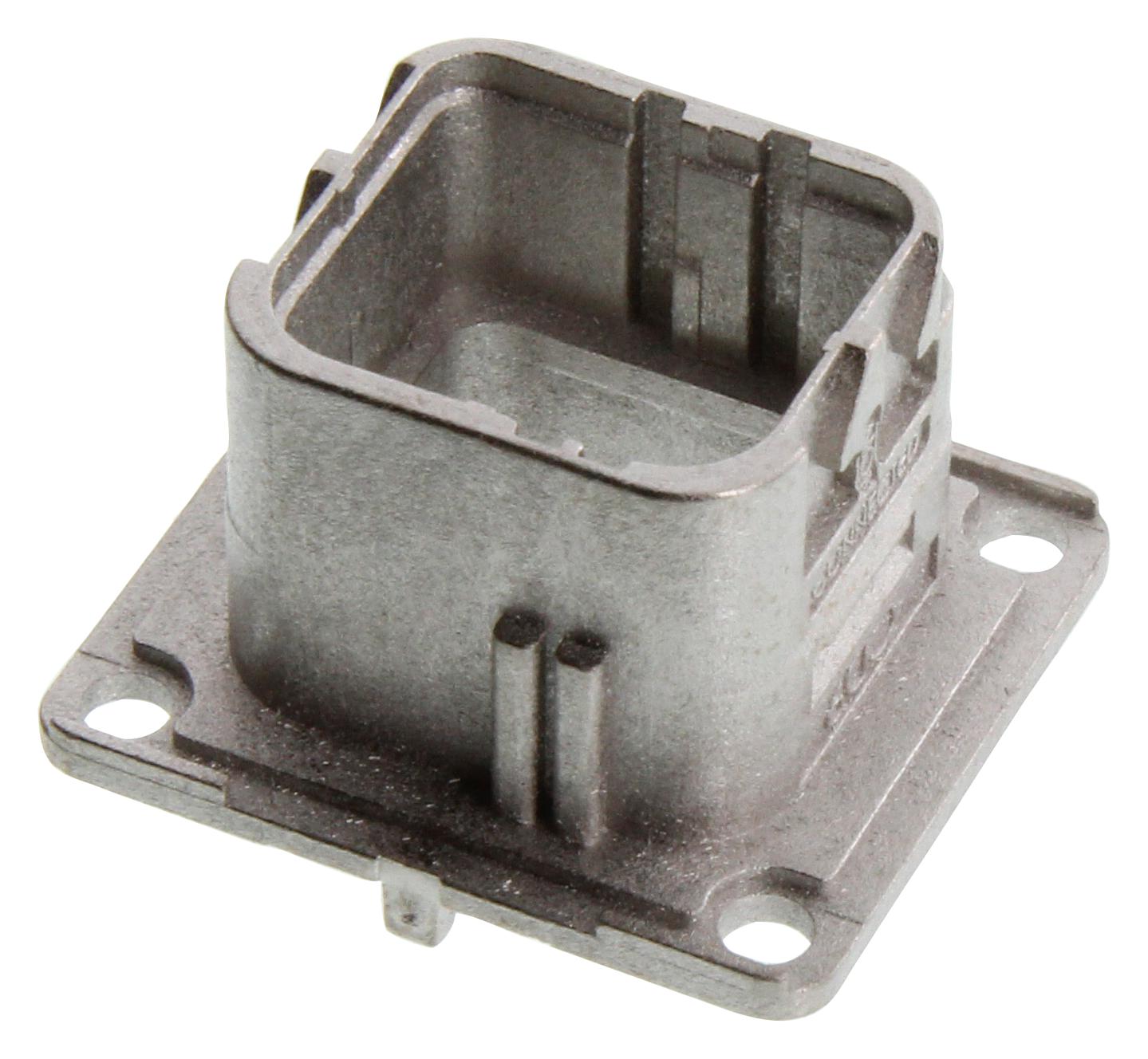

TE CONNECTIVITY DMCMD24D Aerospace Modular Connector
The DMC-MD series connectors are modular, lightweight, and reliable for aerospace cabin and IFE systems, compliant with EN4165, ARINC 809, and BACC65 standards. Designed for high durability, these connectors feature composite housing with nickel plating, thermoplastic modules, and gold-plated contacts, ensuring optimal electrical performance and environmental resistance. Their flexible keying and modular design facilitate easy reconfiguration during installation, making them ideal for modern aircraft networks and aerospace applications. Suitable for both single and multi-cavity use, these connectors support up to 500 mating cycles and operate within -55°C to +175°C temperature range.
TE CONNECTIVITY DMCMD24D Aerospace Modular Connector Specifications:
- Housing Material: Composite, nickel plated
- Modules: Thermoplastic, fluoronated silicone
- Crimp Contacts: Copper alloy, plated gold over nickel
- PCB Contacts: Copper alloy, plated gold over nickel, with lead or ROHS tinning option
- Temperature Range: -55°C to +175°C
- Vibration: 20 g
- Durability: 500 mating cycles
- Salt Spray Resistance: 500 hours
- Interfacial Sealing: 1.1 x 10^7 bar
- Insulation Resistance: 5000 MΩ
- Pin Contact Ratings: Sizes range from 3 A to 46 A depending on contact size
- EMI Attenuation: 50 dB at 100 MHz, decreasing at higher frequencies
- Weight: Receptacle 0.013-0.020 lbs, Plug 0.015 lbs
- Environmental Resistance: Salt spray, vibration, high temperature
- Standards Compliance: EN4165, ARINC 809, BACC65
Buy the Deutsch DMC-24 U+2013 Reliable Aerospace Modular Connectors for Industrial Applications
Purchase the Deutsch DMC-24 series aerospace modular connector online today and benefit from high reliability, lightweight design, and extensive environmental protection suitable for aircraft cabin and in-flight entertainment systems. These connectors are compliant with EN4165, ARINC 809, and BACC65 standards, offering modularity, easy reconfiguration, and high durability across multiple mating cycles. Ideal for aerospace, defense, and marine applications, they ensure secure electrical connections while supporting design flexibility and weight optimization for modern aircraft systems. Experience seamless online ordering and fast delivery to enhance your project’s connectivity performance.
Order your Deutsch DMC-24 Series modular connector today and ensure your aerospace systems are powered by dependable, lightweight, and versatile connectivity solutions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DMCMD24D?
You can click on the BUY or RFQ button to purchase DMCMD24D from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DMCMD24D?
You can download the DMCMD24D datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DMCMD24D?
TE CONNECTIVITY
