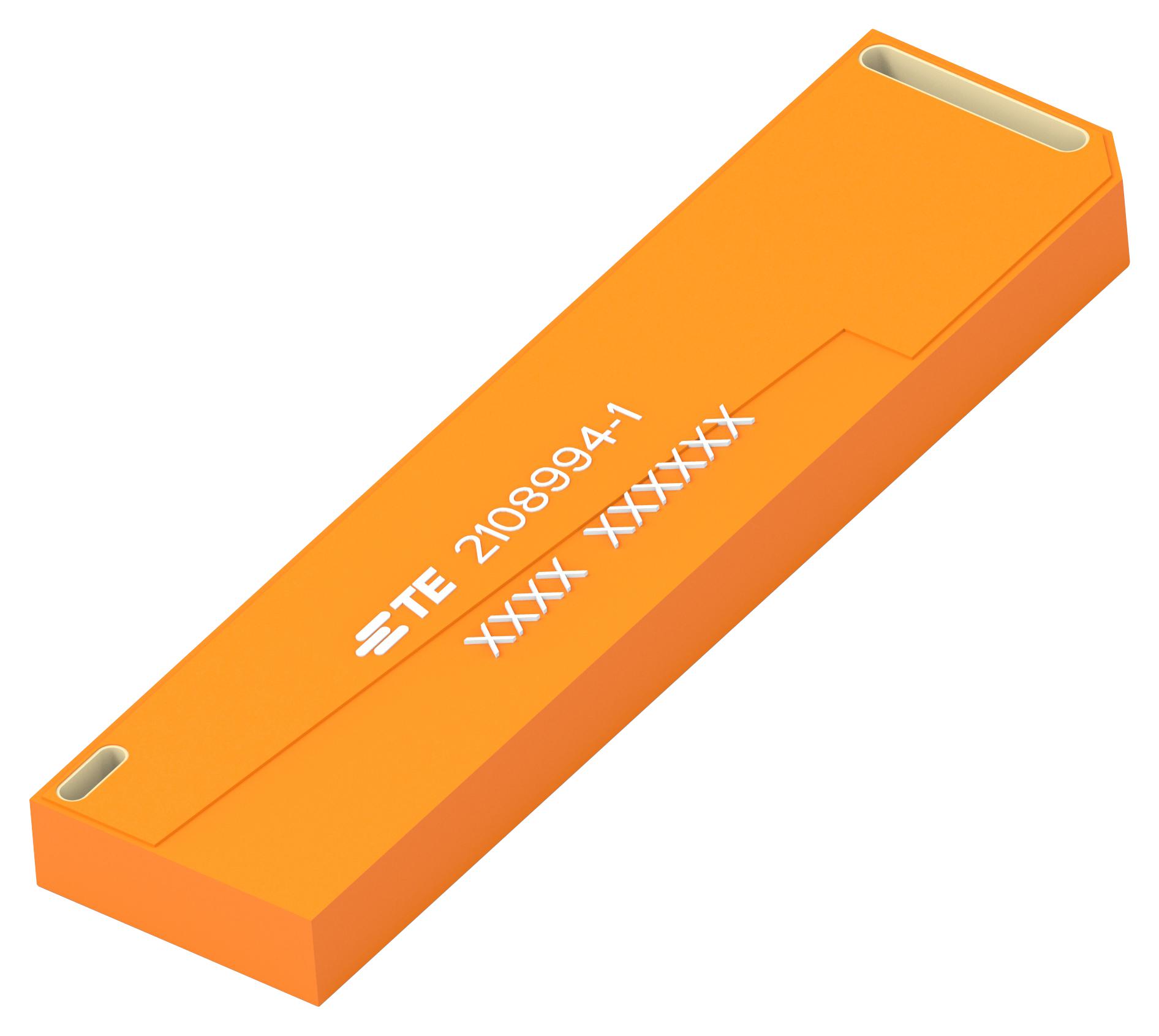

TE CONNECTIVITY 21089941 GSM/CDMA PCB Antenna
The TE Connectivity 2108994-1 is a versatile PCB antenna engineered for robust wireless connectivity. Designed for surface mount (SMT) applications, it supports a broad spectrum of frequencies, including GSM 1900/850, CDMA 850, LTE, and more. Its embedded antenna style and wideband capabilities make it suitable for diverse applications in mobile devices, IoT devices, and other wireless communication systems. The antenna is RoHS compliant and demonstrates TE Connectivity's commitment to environmental responsibility. It is a reliable solution for engineers seeking high-performance wireless connectivity in a compact form factor.
TE CONNECTIVITY 21089941 GSM/CDMA PCB Antenna Specifications:
- Antenna Connection Type: Surface Mount (SMT)
- Band Type: Wideband
- Antenna Protocol: LTE World Band
- Number of Ports: 1
- Antenna Style: Embedded
- Antenna Type: PCB
- Impedance: 50 Ω
- Frequency Band: 1710 – 2690 MHz, 698 – 960 MHz
- Mounts To: Printed Circuit Board
- Mounting Retention Type: Printed Circuit Board
- Wireless Application: CDMA 1900, CDMA 850, GSM 1800, GSM 1900, GSM 850, GSM 900, LTE, LTE-HB 2600, LTE-LB 700
- Product Length: 40 mm
- Product Width: 10 mm
- Product Height: 3.175 mm
- Wireless Standard: LTE, UMTS, US Dual, EU Triband & WCDMA
- Packaging Method: Tape & Reel
- Precision Level: Standard
- EU RoHS Directive 2011/65/EU: Compliant
- EU ELV Directive 2000/53/EC: Compliant
- China RoHS 2 Directive MIIT Order No 32, 2016: No Restricted Materials Above Threshold
- EU REACH Regulation (EC) No. 1907/2006: Current ECHA Candidate List: JUN 2020
- Halogen Content: Low Bromine/Chlorine - Br and Cl < 900 ppm per homogenous material. Also BFR/CFR/PVC Free
- Solder Process Capability: Reflow solder capable to 245°C
Buy the 2108994-1 TE CONNECTIVITY GSM/CDMA PCB Antenna | myMectronic
Securely purchase the TE Connectivity 2108994-1 antenna and ensure reliable wireless performance for your applications.
