TE CONNECTIVITY M325P00000E025BG Pressure Transducer
The M3200 pressure transducer by TE is a highly durable, stainless steel device suitable for measuring liquid or gas pressure, including challenging media like contaminated water and steam. It features microfused silicon piezoresistive sensors fused with high-temp glass for superior stability and media compatibility. Constructed from one-piece 17-4PH stainless steel with a 1/4 NPT leak-proof seal, it offers analog (V/mA) and digital outputs with high accuracy, weatherproof design, and a wide measurement range from 0 to 10,000 psi. Ideal for industrial, automotive, medical, and water management applications, it ensures reliable long-term performance.
TE CONNECTIVITY M325P00000E025BG Pressure Transducer Specifications:
- Material: 17-4PH stainless steel
- Pressure Range: 0 to 10,000 psi (700 bar), with standard ranges up to 500 psi and 10k psi
- Outputs: Analog (V/mA) and 14-bit digital pressure and 11-bit temperature signals
- Accuracy: 0.5% zero offset, 1.5% total error band
- Temperature Range: -40°C to 125°C for operation, -40°C to 125°C for storage
- Ingress Protection: IP67 for weatherproof cable & M12 connector, IP66 for Packard, IP65 for Form C
- Power Supply: 5 V for digital, 8-30 V for analog (4-20mA), 12-30 V for 0-10 V, 8-30 V for 0-5 V outputs
- Response Time: ≤3 ms for digital, <2 ms for analog (10-90% rise time)
- Shock & Vibration: 50g shock, 20g vibration
- Certifications: CE, EN 55022, IEC 61000-4 immunity standards

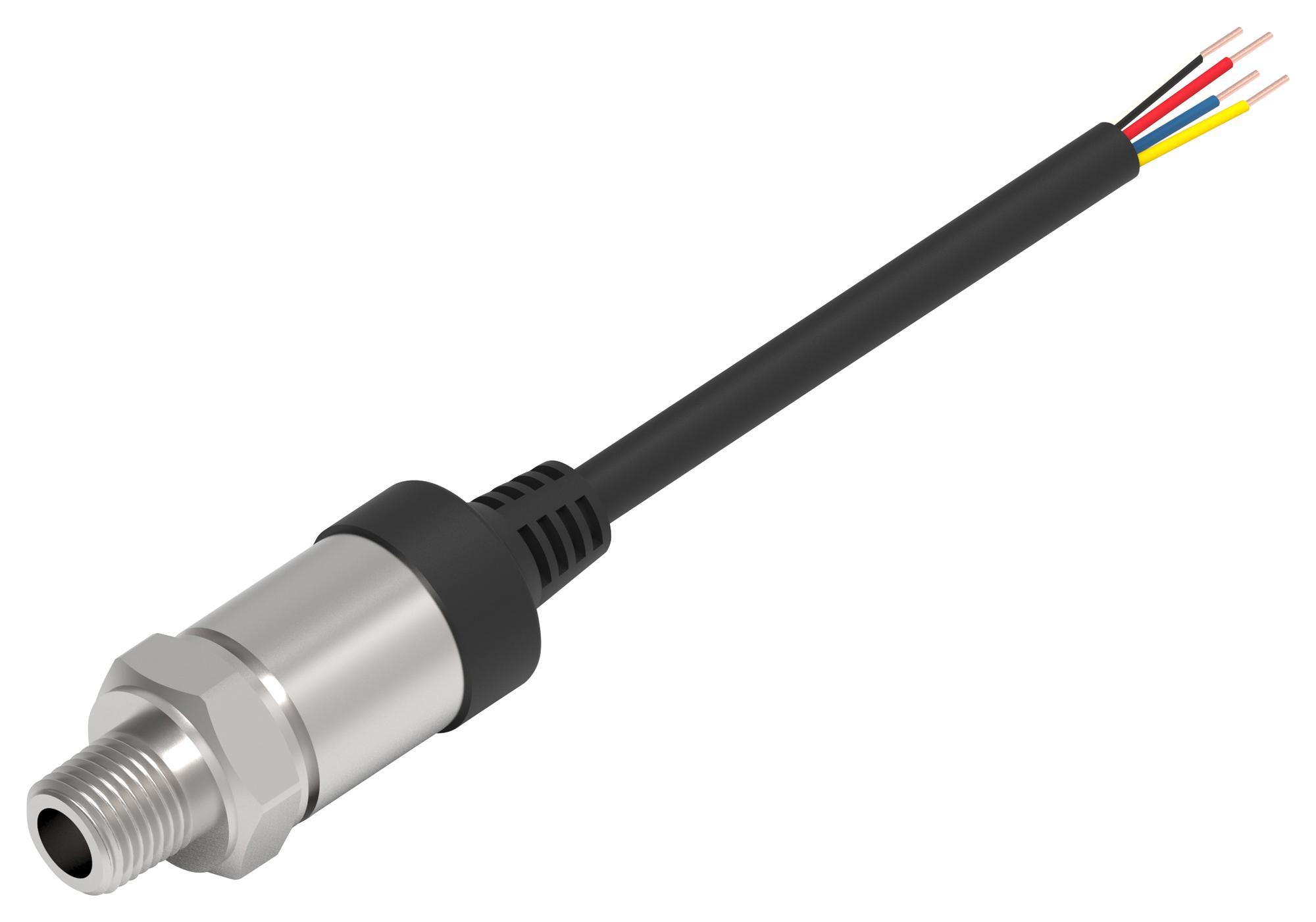

Buy the Buy TE M3200 Pressure Transducer Part Number M325P00000E025BG Online
Experience dependable pressure measurement with the TE M3200 Pressure Transducer, featuring stainless steel construction, high accuracy, and multiple configurable outputs. Perfect for industrial, medical, and water management applications, it provides long-term stability and weatherproof design. Compatible with a variety of pressure ports and offering digital and analog outputs, this device ensures precise readings even in challenging media like steam and contaminated fluids. Order online now for fast delivery and robust measurement performance.
Order your TE M3200 Series pressure transducer today to ensure accurate, reliable pressure measurements in demanding industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY M325P00000E025BG?
You can click on the BUY or RFQ button to purchase M325P00000E025BG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part M325P00000E025BG?
You can download the M325P00000E025BG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of M325P00000E025BG?
TE CONNECTIVITY
