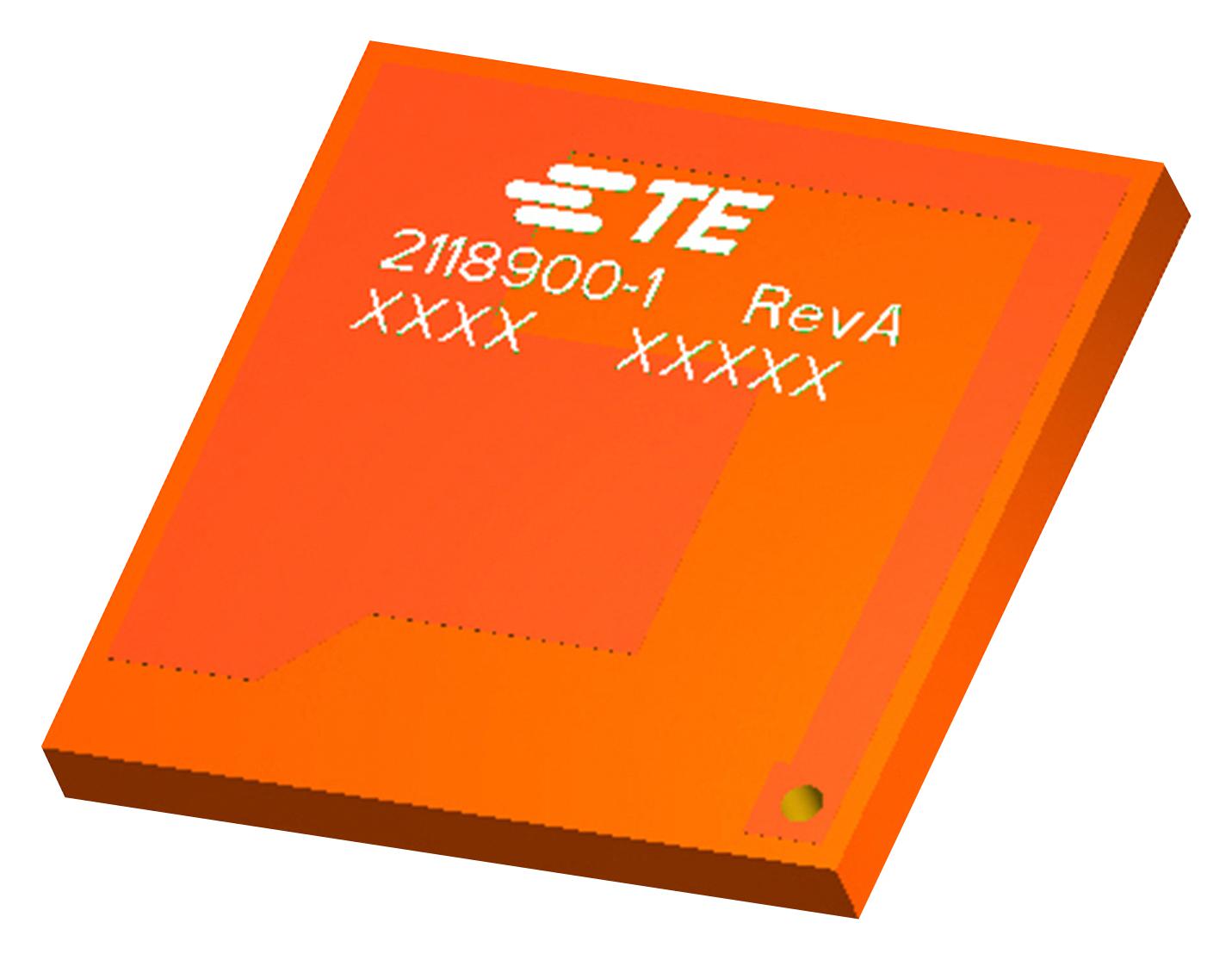

TE CONNECTIVITY 21189001 GNSS Antenna
This GNSS antenna is designed for reliable 5G and GPS connectivity, embedded on printed circuit boards with surface mount (SMT) technology. Operating within the global GNSS frequency band of 1560–1602 MHz, it offers a compact length of .39 inches (10 mm), making it suitable for space-constrained applications. Featuring a gain of 3.5 dB, an impedance of 50 Ω, and a maximum VSWR of less than 2.0:1, it ensures optimal signal quality for diverse industrial and wireless applications, including GNSS positioning and integrated systems.
TE CONNECTIVITY 21189001 GNSS Antenna Specifications:
- Frequency Band: 1560–1602 MHz
- Antenna Style: Embedded, Surface Mount (SMT)
- Gain: 3.5 dB
- Impedance: 50 Ω
- VSWR (Max): < 2.0:1
- Polarization: Linear
- Dimensions: Length 0.39 in (10 mm), Width 1 mm (0.04 in), Height 1 mm (0.04 in)
- Weight: 0.5 g (0.0176 oz)
- Mounting: PCB
- Operating Region: Global GNSS coverage
- Application: 5G, GPS, GNSS positioning systems
- Material: PCB
- Certifications: Compliant with EU RoHS, ELV, and REACH regulations
- Reflow Solder Capability: Up to 245°C
- Connector: Surface Mount (SMT)
- Number of Ports: 1
Buy the TE 2118900-1 – Reliable GNSS Antenna for Industrial Applications
Enhance your wireless systems with the TE GNSS antenna, optimized for GPS and 5G applications. Designed for embedded PCB mounting, this compact antenna offers 3.5 dB gain and operates within the 1560–1602 MHz range. Its surface mount design ensures quick installation and reliable performance in space-constrained environments. Fully compliant with global safety and environmental standards, it is suitable for a wide range of industrial, navigation, and positioning systems. Purchase online today to improve your connectivity and system robustness.
Order your TE Series2118900-1 GNSS antenna today and enhance your GPS and 5G connectivity with this compact, proven embedded PCB antenna for industrial and GNSS applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 21189001?
You can click on the BUY or RFQ button to purchase 21189001 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 21189001?
You can download the 21189001 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 21189001?
TE CONNECTIVITY
