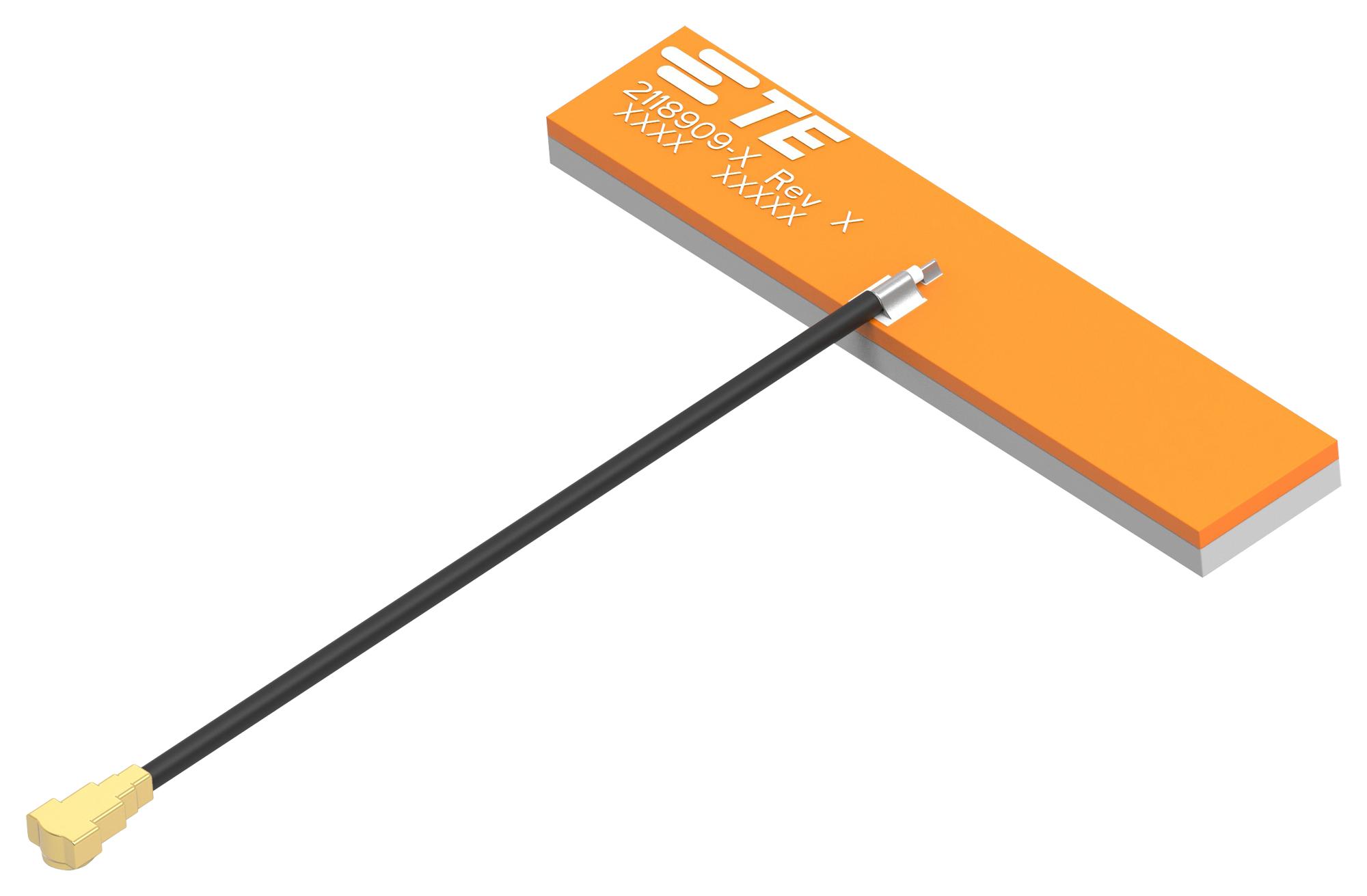

TE CONNECTIVITY 21189091 Wi-Fi Triple Band Antenna
The Wi-Fi 6/6E triple band embedded antenna offers reliable wireless connectivity across 2.4GHz, 5GHz, and 6GHz bands, including the new WiFi 6E spectrum. Its compact size of 40mm x 8mm x 1mm makes it suitable for easy integration into various devices, with a weight of less than 1.59 grams. Designed with linear polarization and 50-ohm impedance, it provides efficient performance with peak gains of up to 3.0dBi in the 2.4GHz band. The antenna features adhesive mounting for easy installation and includes compatible MHF and MHF4 connectors, supporting power handling up to 10W CW and operating in temperatures from -40°C to +85°C. Suitable for IoT, enterprise, and consumer electronics applications, this PCB antenna ensures optimal RF performance with VSWR below 2.0:1 and efficiency up to 75%.
TE CONNECTIVITY 21189091 Wi-Fi Triple Band Antenna Specifications:
- Frequency Range: 2400-2483.5 MHz, 5150-5875 MHz, 5925-7125 MHz
- VSWR: <2.0:1 in 2.4GHz, <2.07 in 5GHz, <2.5:1 in 6GHz bands
- Average Efficiency: 75% in 2.4GHz, 70% in 5GHz, 65% in 6GHz
- Peak Gain: 3.0dBi at 2.4GHz, 2.8dBi at 5GHz, 2.4dBi at 6GHz
- Average Gain: -1.3dBi, -1.6dBi, -1.9dBi respectively
- Power Handling Capacity: 10 Watt CW
- Feed Point Impedance: 50 ohms unbalanced
- Polarization: Linear
- Size: 40.0 mm x 8.0 mm x 1.0 mm
- Weight: less than 1.59 grams
- Mounting: Adhesive tape
- Mating Connectors: MHF-type, MHF4-type (TE PN 2337019-1, 2344884-1)
- Cable Diameter: 1.13 mm
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
Buy the TE Connectivity 2118909-1 – Reliable Wi-Fi 6/6E Triple Band Embedded Antenna for Industrial Applications
Enhance your wireless connectivity with this high-performance Wi-Fi 6/6E triple band embedded antenna. Its compact design, efficient RF performance, and easy adhesive mounting make it ideal for IoT, enterprise, and consumer electronics. Supports 2.4GHz, 5GHz, and 6GHz bands including WiFi 6E for future-proof connectivity. Designed with a 50-ohm impedance, linear polarization, and up to 10W power handling, ensuring robust and reliable wireless communication in various environments. Perfect for integration in space-constrained devices requiring high-performance wireless solutions.
Buy TE Connectivity 2118909-1 now and experience unmatched reliability and performance in wireless device connectivity with this compact, multi-band antenna.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 21189091?
You can click on the BUY or RFQ button to purchase 21189091 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 21189091?
You can download the 21189091 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 21189091?
TE CONNECTIVITY
