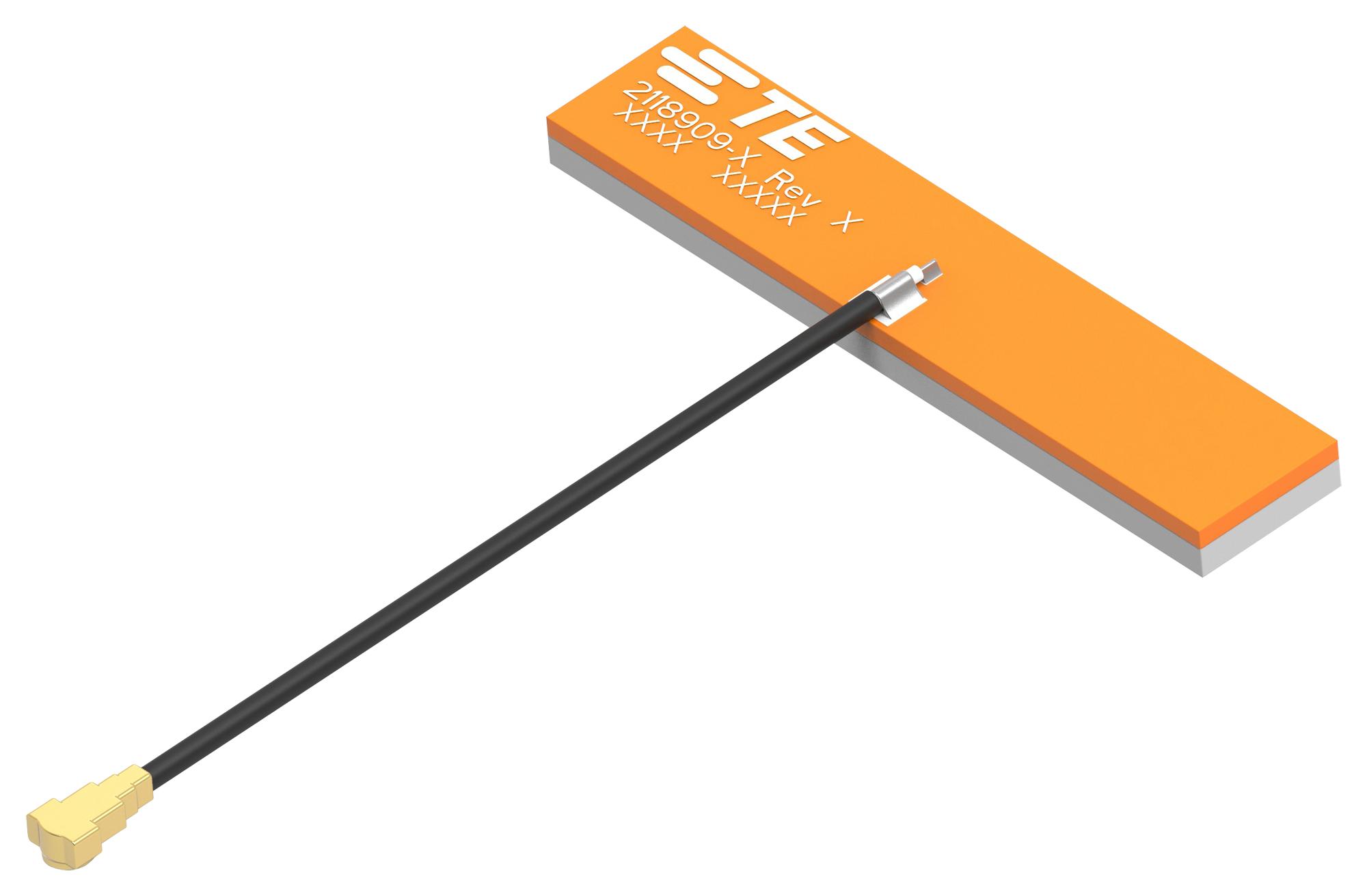

TE CONNECTIVITY 21189095 Triple Band Wi-Fi Antenna
The Wi-Fi 6/6E Triple Band Embedded Antenna is designed for seamless integration in devices requiring global Wi-Fi coverage, including the 2.4 GHz, 5 GHz, and 6 GHz bands. It features a compact size of 40.0 mm x 8.0 mm x 1.0 mm, with adhesive backing for easy mounting on plastic covers. Offering peak gains of up to 3.0 dBi and efficiencies between 65-75%, it supports 10-watt power handling with a 50-ohm unbalanced impedance. Compatible with MHF and MHF4 connectors, it operates efficiently across broad temperature ranges.
TE CONNECTIVITY 21189095 Triple Band Wi-Fi Antenna Specifications:
- Frequency Range: 2400-2483.5 MHz, 5150-5875 MHz, 5925-7125 MHz
- VSWR: <2.0:1 (2.4 GHz), <2.07:1 (5 GHz), <2.5:1 (6 GHz)
- Average Efficiency: 75% (2.4 GHz), 70% (5 GHz), 65% (6 GHz)
- Peak Gain: 3.0 dBi (2.4 GHz), 2.8 dBi (5 GHz), 2.4 dBi (6 GHz)
- Average Gain: -1.3 dBi (2.4 GHz), -1.6 dBi (5 GHz), -1.9 dBi (6 GHz)
- Power Handling: 10 Watt CW
- Feed Point Impedance: 50 ohms unbalanced
- Polarization: Linear
- Size: 40.0 mm x 8.0 mm x 1.0 mm
- Weight: Less than 1.59 grams
- Mounting: Adhesive tape
- Mating Connectors: MHF-type (TE PN 2337019-1), MHF4-type (TE PN 2344884-1)
- Cable Diameter: 1.13 mm
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
Buy the TE Connectivity Series Triple Band Wi-Fi 6/6E Antenna: 2118909-1
Enhance your device's wireless communication with the TE Connectivity Triple Band Wi-Fi 6/6E embedded antenna. Designed for seamless integration, its compact size and adhesive backing simplify mounting on plastic covers. It covers 2.4 GHz, 5 GHz, and 6 GHz bands with peak gains up to 3.0 dBi, ensuring optimal signal strength and efficiency. Supporting 10-watt power handling and broad temperature ranges, this antenna provides reliable connectivity for modern IoT, networking, and wireless applications. Order online today for dependable, high-performance wireless solutions.
Order your TE Connectivity Series Triple Band Wi-Fi 6/6E Antenna today and enhance your device's wireless connectivity with reliable, broad-spectrum performance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 21189095?
You can click on the BUY or RFQ button to purchase 21189095 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 21189095?
You can download the 21189095 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 21189095?
TE CONNECTIVITY
