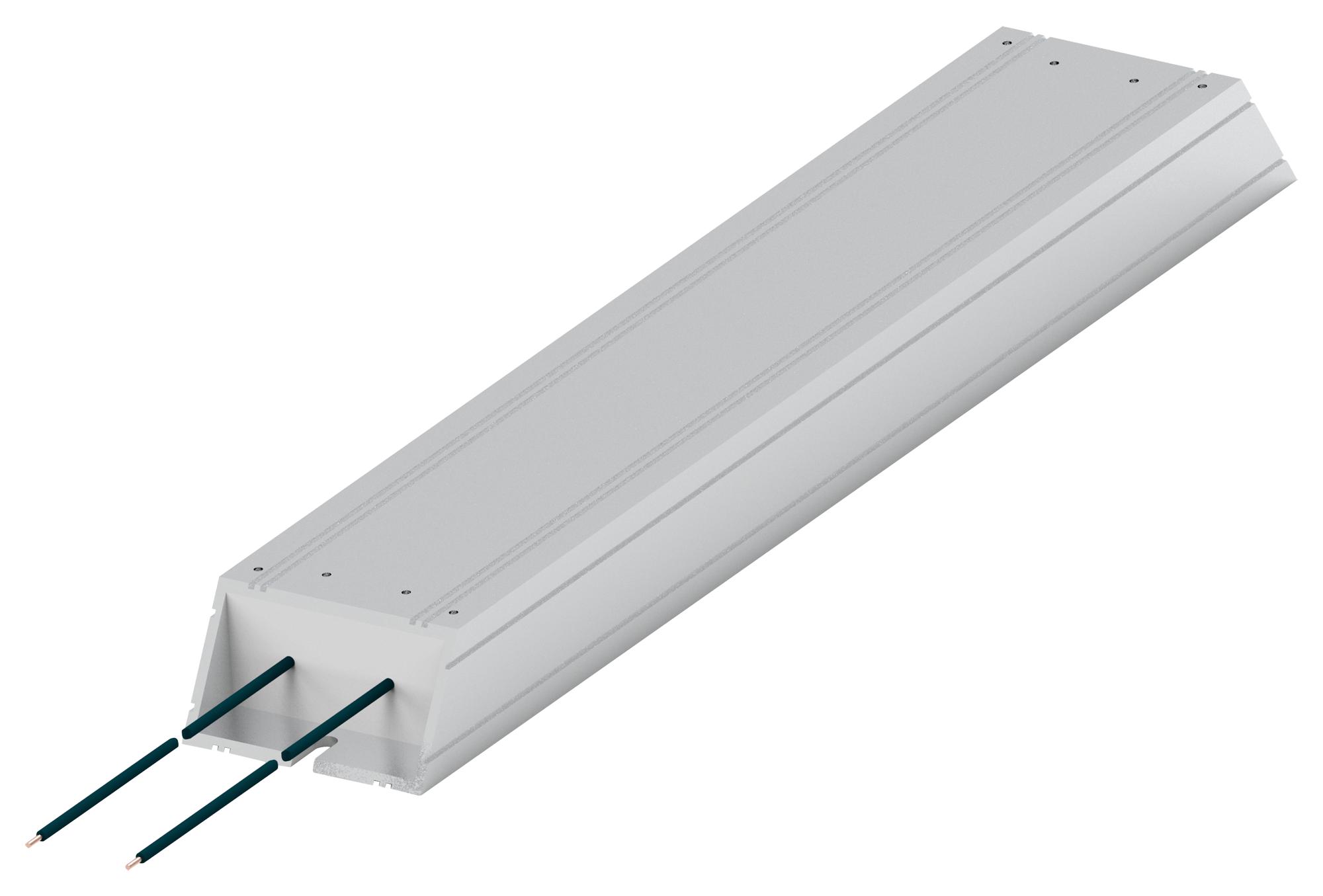

TE CONNECTIVITY HCH335J100RJ Aluminium Braking Resistor
The aluminium housed braking resistor series designed for high power overload capabilities and reliable braking applications. Featuring IP54 ingress protection, PTFE insulated flying leads, and wire wound elements, these resistors support various power ratings from 200W to 500W with temperature ratings up to 375°C. They are tested for overload pulse ratings, load life, humidity resistance, and dielectric strength. Suitable for drive systems, they are marked with type, resistance value, tolerance, and batch code, packaged individually for easy installation and maintenance.
TE CONNECTIVITY HCH335J100RJ Aluminium Braking Resistor Specifications:
- Power Rating: 200W to 500W at 40°C
- Maximum Temperature: 320°C to 375°C depending on model
- Resistance Range: 680Ω to 2200Ω
- Ingress Protection: IP54
- Insulation Resistance: >100MΩ at 1000VDC
- Dielectric Strength: 3500VAC for 1m
- Resistor Element: Wire wound
- Body Material: Anodized extruded aluminium profile
- Flying Leads: PTFE insulated, 300 mm standard
- Dimensions (L): Ranges from 165mm to 335mm depending on model
- Rated Continuous Working Voltage: Up to 1100V
- Temperature Coefficient: +200ppm/°C
- Standards & Testing: Load life (90 min on, 30 min off, 1000 hrs), humid heat (56 days), dielectric strength, ingress protection tested at NABL lab
Buy the TE Connectivity Series Aluminium Braking Resistor 200W-500W: HCH335J100RJ
Purchase the TE Connectivity aluminium housed braking resistor series online today and ensure your drive systems operate efficiently with high overload capacity, IP54 protection, and durable PTFE insulated leads. These high power resistors support applications requiring reliable braking performance and are tested for load life, humidity, and dielectric strength, making them ideal for industrial automation, motor drives, and regenerative braking systems. Order now for fast delivery and quality assurance, optimizing your equipment's performance.
Order your TE Connectivity HCH335 aluminium housed braking resistor today and enhance your drive system's reliability with proven overload capacity and durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH335J100RJ?
You can click on the BUY or RFQ button to purchase HCH335J100RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH335J100RJ?
You can download the HCH335J100RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH335J100RJ?
TE CONNECTIVITY
