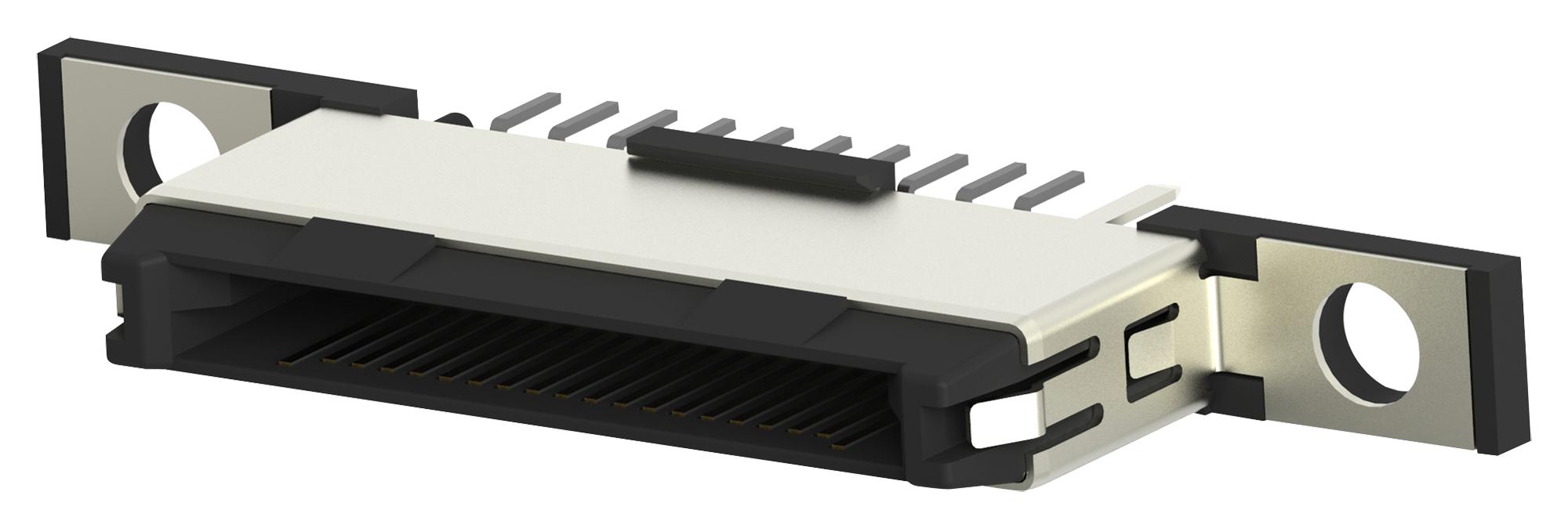

TE CONNECTIVITY 21292611 High Speed Docking Connector
The TE Connectivity 0.6mm Centerline High Speed CHAMP Docking Connector offers a compact, high-density solution with low profile design suitable for tablet, laptop, and mobile internet devices. It features two rows of contacts on a 0.6mm pitch, ensuring reliable high-speed data transmission for USB 3.0, HDMI, and DisplayPort standards. The connector includes options such as right-angle and vertical plugs, with a rugged design supporting over 10,000 mating cycles, and features side latches and guide rails for secure connections and easy alignment in high-frequency applications.
TE CONNECTIVITY 21292611 High Speed Docking Connector Specifications:
- Pitch: 0.6mm
- Configuration: 2-row, through-hole and SMT options
- Contact Count: 40 positions (additional positions available later)
- Material: Copper alloy contacts, plated for durability
- Housing: Low profile, shielded design (3.8mm height)
- Electrical: Supports USB 3.0, HDMI, DisplayPort signals
- Mating Cycles: 10,000
- Application: Tablet PCs, laptops, MID, mobile phones
- Size: Receptacle size approximately 8.05mm x 25.5mm
- Temperature Range: -55°C to +105°C
- Standards: USB 3.0, HDMI high definition, DisplayPort
- Mounting: Screwlock and crimp options available
Buy the TE Connectivity 2129260 – Reliable High Speed Docking Connector for Industrial Applications
Enhance your electronic interfaces with the TE Connectivity high speed docking connector, supporting USB 3.0, HDMI, and DisplayPort standards. Designed for high-density, low profile applications, it features a 0.6mm pitch, rugged housing, and over 10,000 mating cycles for durability. Ideal for tablets, laptops, and mobile devices, this connector ensures reliable high-speed signal transmission and easy mating with guide rails and side latches. Quickly purchase online and guarantee high performance in your next project.
Order your TE Connectivity Series2129260 high-speed docking connector today and ensure reliable data transmission for your high-density electronic projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 21292611?
You can click on the BUY or RFQ button to purchase 21292611 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 21292611?
You can visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 21292611?
TE CONNECTIVITY
