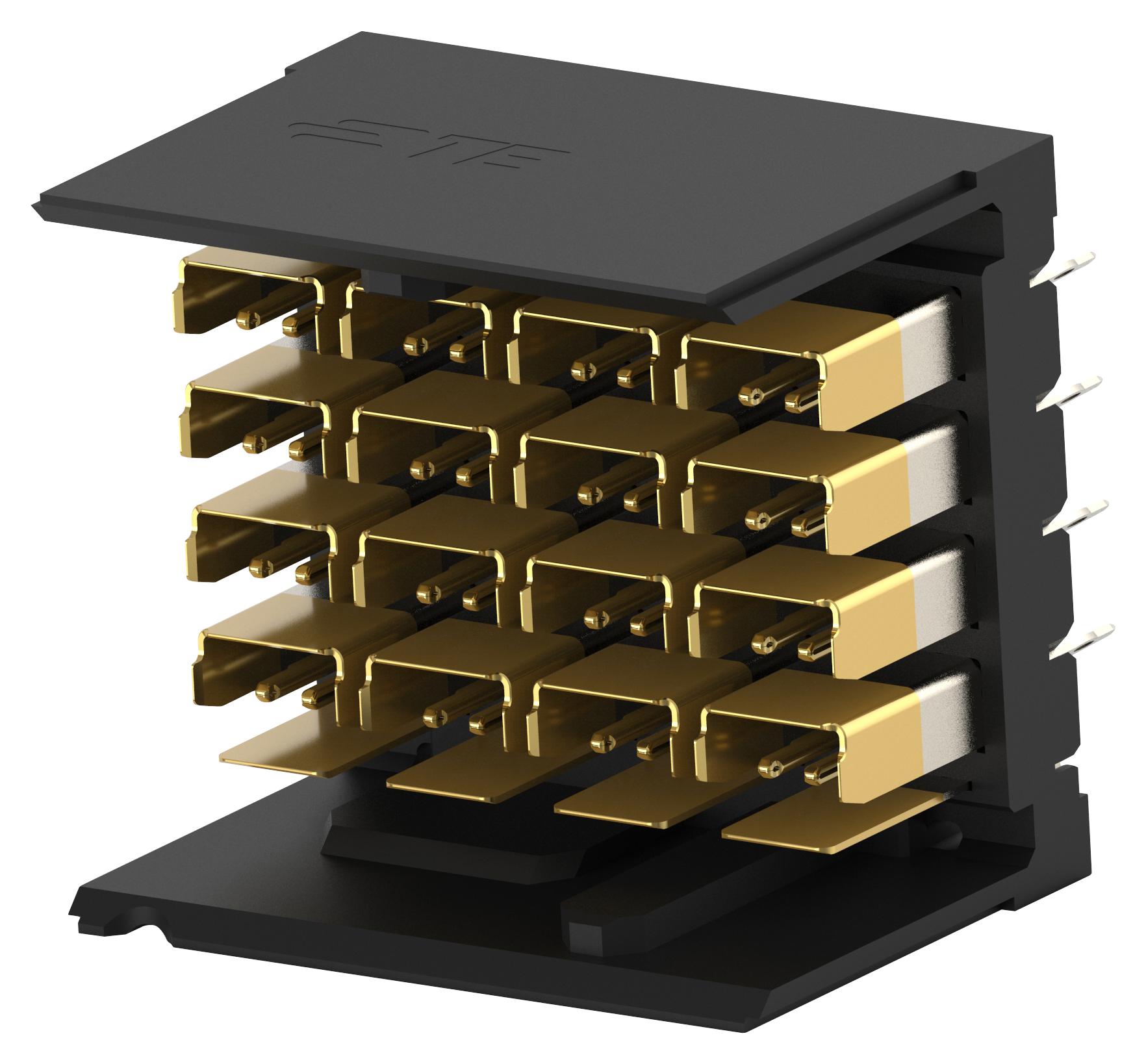

TE CONNECTIVITY 21877241 Whisper R Backplane Connector
TE Connectivity's STRADA Whisper R backplane connectors are designed for high-speed data transmission in demanding environments like data centers, servers, and wireless infrastructure. These connectors provide an upgrade path from 56G PAM-4 to 112G PAM-4, reducing costs through a new design and automated assembly process. They offer low noise, low insertion loss, and minimal skew, ensuring system architects have design flexibility and high design margin. With 92 Ohm impedance, they support both 85 Ohm and 100 Ohm system requirements.
TE CONNECTIVITY 21877241 Whisper R Backplane Connector Specifications:
- Data Rate: 56G PAM4
- Impedance: 92 Ohm
- PCB Termination: Press-fit
- Signal LLCR Max Initial: 200 mOhm
- Insulation Resistance: 1000 M-ohm min
- Voltage Rating: 80 Vac
- Current Rating: 0.5A per contact
- Wipe Length: 2.50 mm
- Mating Force: 2.50 N max per differential pair including ground
- Unmating Force: 0.31 N min per differential pair including ground
- Press-fit insertion force: 17.8 N max per contact
- Product Specification: 108-140186
- Application Specification: 114-32029
Buy the 2187724-1 TE CONNECTIVITY Whisper R Backplane Connector | myMectronic
Purchase the TE Connectivity 2187724-1 STRADA Whisper R Backplane Connector securely and efficiently online.
Buy Now
