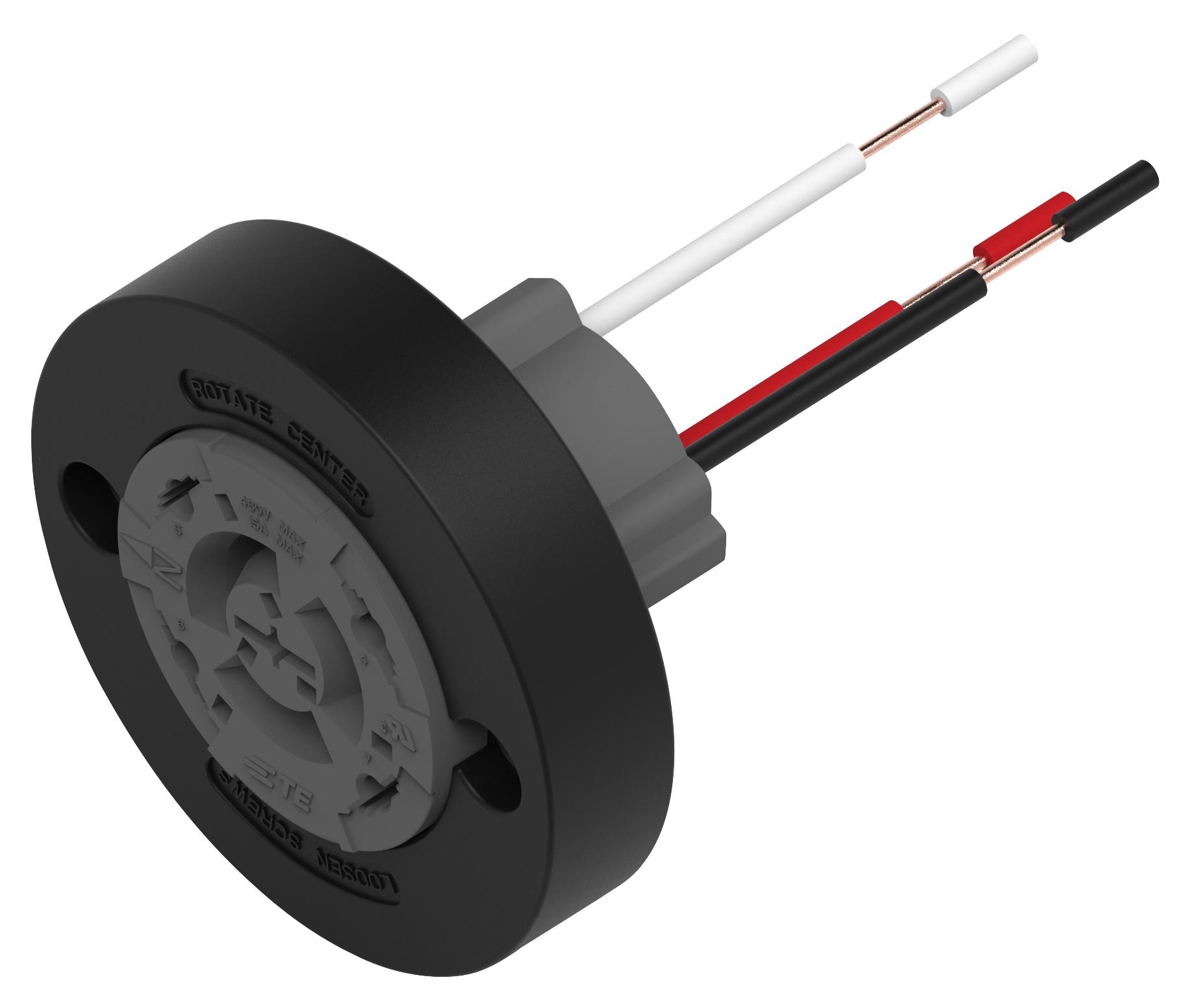

TE CONNECTIVITY 22138482 Photocontrol Power Receptacle
The TE Connectivity 2213848-1 is a robust receptacle assembly specifically engineered for photocontrol power applications within NEMA/ANSI street light systems. Its rotatable design allows for flexible installation and adjustment. Constructed with gold-plated contacts and a black housing, this receptacle ensures reliable electrical connections and durability in demanding environments. Compliant with various industry standards, including ANSI, and meeting specific REACH regulations, it's a dependable choice for lighting control applications. The component supports a maximum operating voltage of 600 VAC and a current rating of 15A, suitable for a range of power requirements.
TE CONNECTIVITY 22138482 Photocontrol Power Receptacle Specifications:
- Lighting Product Type: Connector
- Connector System: Wire-to-Component
- Rotatable: Yes
- Number of Positions: 3
- Operating Voltage: 600 VAC
- Contact Mating Area Plating Material: Gold
- Contact Current Rating (Max): 15 A
- Housing Color: Black
- Wire Size: 14 AWG
- Operating Temperature Range: -40 – 85 °C
- Circuit Application: Power
- Agency & Standard: ANSI
- EU RoHS Directive 2011/65/EU: Not Yet Reviewed
- EU ELV Directive 2000/53/EC: Compliant
- China RoHS 2 Directive MIIT Order No 32, 2016: No Restricted Materials Above Threshold
- EU REACH Regulation (EC) No. 1907/2006: Current ECHA Candidate List: JAN 2020
- Halogen Content: Not Low Halogen - contains Br or Cl > 900 ppm
- Solder Process Capability: Not reviewed for solder process capability
Buy the 2213848-1 TE CONNECTIVITY Photocontrol Power Receptacle | myMectronic
Securely purchase the TE Connectivity 2213848-1 receptacle assembly and ensure reliable performance for your lighting applications.
